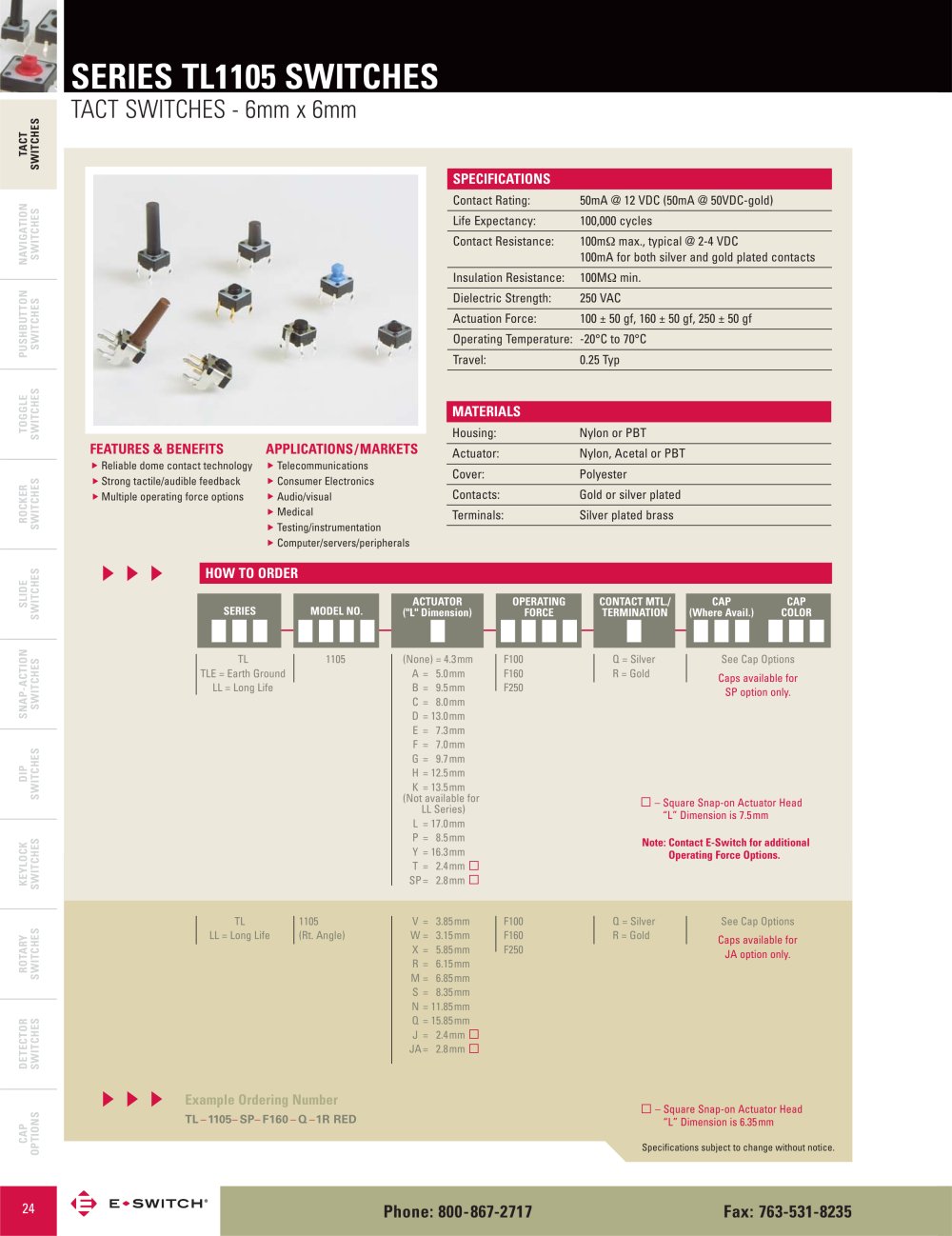

SERIES TL1105 SWITCHES TACT SWITCHES - 6mm x 6mm

TACTSWITCHES

SPECIFICATIONS

Contact Rating: 50mA @ 12 VDC (50mA @ 50VDC-gold) Life Expectancy:100,000 cyclesContact Resistance:100m max., typical @ 2-4 VDC

NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS

100mA for both silver and gold plated contacts Insulation Resistance:100M min. Dielectric Strength:250 VAC Actuation Force:100 ± 50 gf, 160 ± 50 gf, 250 ± 50 gf Operating Temperature:-20°C to 70°C Travel:0.25 Typ

MATERIALS

Housing:Nylon or PBT

FEATURES & BENEFITS APPLICATIONS/MARKETS

Actuator:Nylon, Acetal or PBT

Reliable dome contact technologyStrong tactile/audible feedback Multiple operating force options Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals

Cover:Polyester Contacts: Gold or silver plated Terminals:Silver plated brass

▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) CAP(Where Avail.)CAPCOLOR SERIESOPERATINGFORCECONTACT MTL./TERMINATION MODEL NO. TLTLE = Earth GroundLL = Long Life 1105F100F160F250Q = SilverR = GoldSee Cap OptionsCaps available for SP option only. (None) = 4.3mmA=5.0mm B=9.5mmC=8.0mmD=13.0mmE=7.3mmF=7.0mmG=9.7mmH=12.5mmK=13.5mm(Not available forLL Series)L=17.0mmP=8.5mmY=16.3mm T=2.4mm SP=2.8mm (None) = 4.3mmA=5.0mm B=9.5mmSP=2.8mm – Square Snap-on Actuator Head“L” Dimension is 7.5mm Note: Contact E-Switch for additionalOperating Force Options. TLLL = Long Life 1105(Rt. Angle)F100F160 F250Q = SilverR = GoldSee Cap OptionsCaps available for JA option only. V=3.85mmW=3.15mmX=5.85mm R=6.15mmM=6.85mmS=8.35mmN=11.85mmQ=15.85mmJ=2.4mm JA=2.8mm

Example Ordering Number

– Square Snap-on Actuator Head“L” Dimension is 6.35mm

TL_1105_SP_F160_Q_1R RED

Specifications subject to change without notice.
