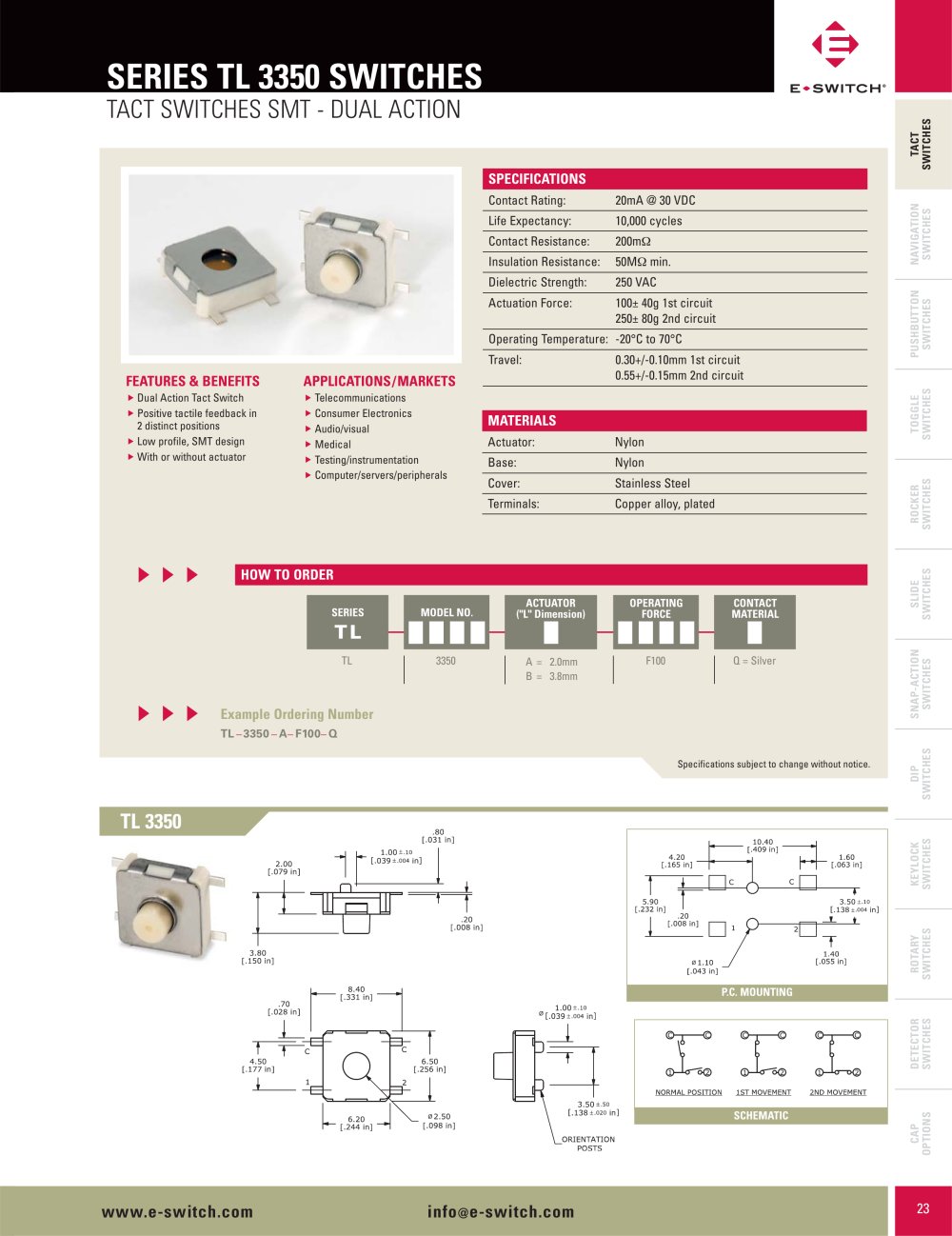

SERIES TL 3350 SWITCHES TACT SWITCHES SMT - DUAL ACTION
TACTSWITCHESSPECIFICATIONS
Contact Rating:20mA @ 30 VDC Life Expectancy:10,000 cycles Contact Resistance:200m Insulation Resistance:50M min.NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Dielectric Strength:250 VACActuation Force:100± 40g 1st circuit 250± 80g 2nd circuit Operating Temperature:-20°C to 70°C Travel:0.30+/-0.10mm 1st circuit
FEATURES & BENEFITS APPLICATIONS/MARKETS
0.55+/-0.15mm 2nd circuitDual Action Tact SwitchPositive tactile feedback in 2 distinct positionsLow profile, SMT design With or without actuator Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals
MATERIALS
Actuator:Nylon Base:Nylon Cover:Stainless Steel Terminals:Copper alloy, plated▲▲ ▲▲▲ ▲
