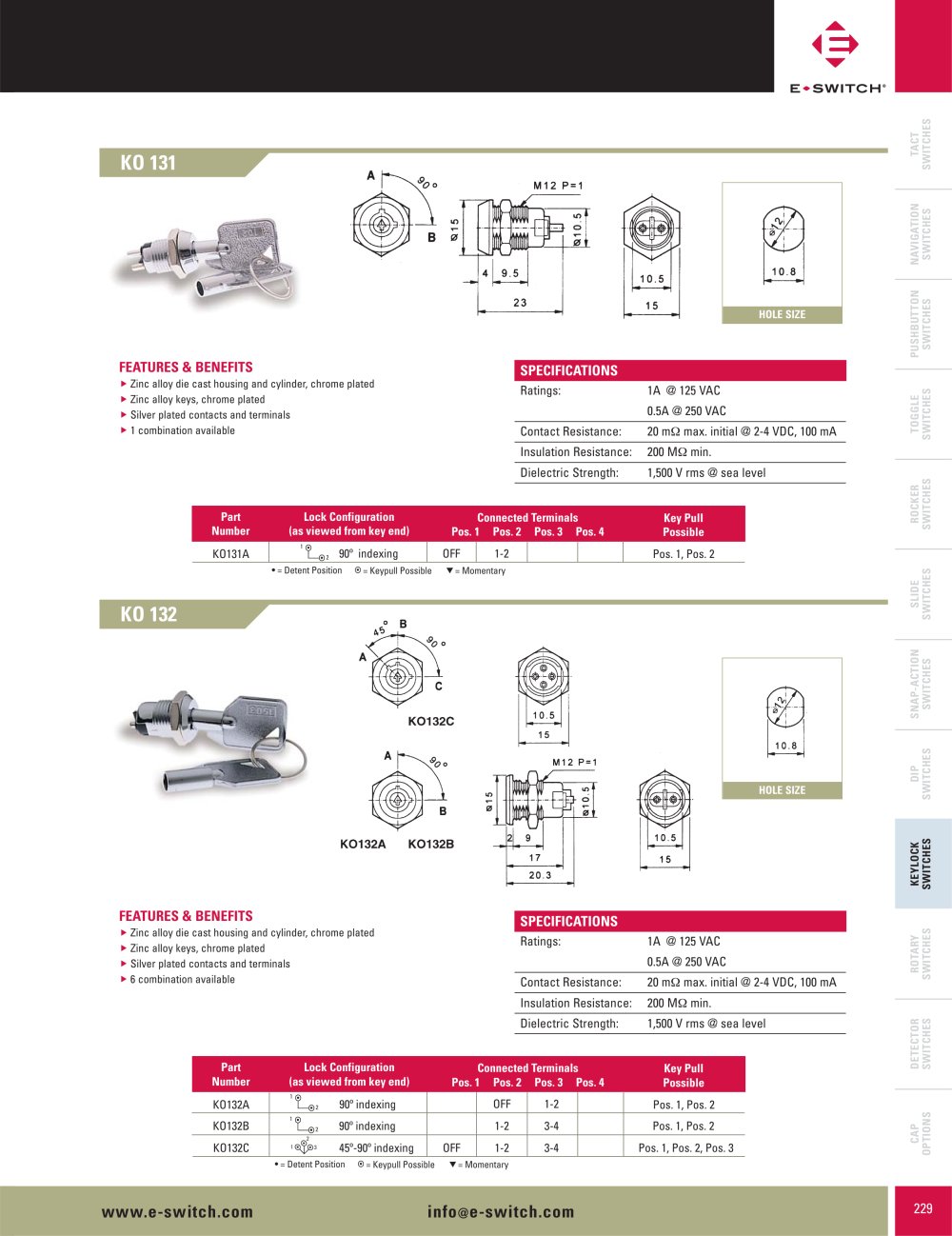

KO 131

HOLE SIZE

FEATURES & BENEFITS SPECIFICATIONS

Zinc alloy die cast housing and cylinder, chrome platedZinc alloy keys, chrome plated Silver plated contacts and terminals 1 combination available Ratings:1A @ 125 VAC 0.5A @ 250 VAC Contact Resistance:20 m max. initial @ 2-4 VDC, 100 mA Insulation Resistance:200 M min. Dielectric Strength:1,500 V rms @ sea level
PartNumberLock Configuration(as viewed from key end)Connected TerminalsPos. 1 Pos. 2 Pos. 3 Pos. 4Key PullPossible 12 KO131APos. 1, Pos. 290º indexing OFF1-2 = Detent Position= Keypull Possible= Momentary

KO 132

DIPSWITCHESSNAP-ACTIONSWITCHESSLIDESWITCHESROCKERSWITCHESTOGGLESWITCHESPUSHBUTTONSWITCHESNAVIGATIONSWITCHESTACTSWITCHES HOLE SIZE KEYLOCKSWITCHES

FEATURES & BENEFITS

Zinc alloy die cast housing and cylinder, chrome platedZinc alloy keys, chrome platedSilver plated contacts and terminals6 combination available

SPECIFICATIONS

Ratings:1A @ 125 VAC 0.5A @ 250 VAC Contact Resistance:20 m max. initial @ 2-4 VDC, 100 mA Insulation Resistance:200 M min. Dielectric Strength:1,500 V rms @ sea level
PartNumberLock Configuration(as viewed from key end)Connected TerminalsPos. 1 Pos. 2 Pos. 3 Pos. 4Key PullPossible 12 KO132APos. 1, Pos. 2KO132BKO132C90º indexing90º indexing OFF1-21-21-2Pos. 1, Pos. 2Pos. 1, Pos. 2, Pos. 3 12 45º-90º indexing OFF3-43-4 CAPOPTIONSDETECTORSWITCHESROTARYSWITCHES 123 = Detent Position= Keypull Possible= Momentary

info

@

e-switch.comwww.e-switch.com

229
