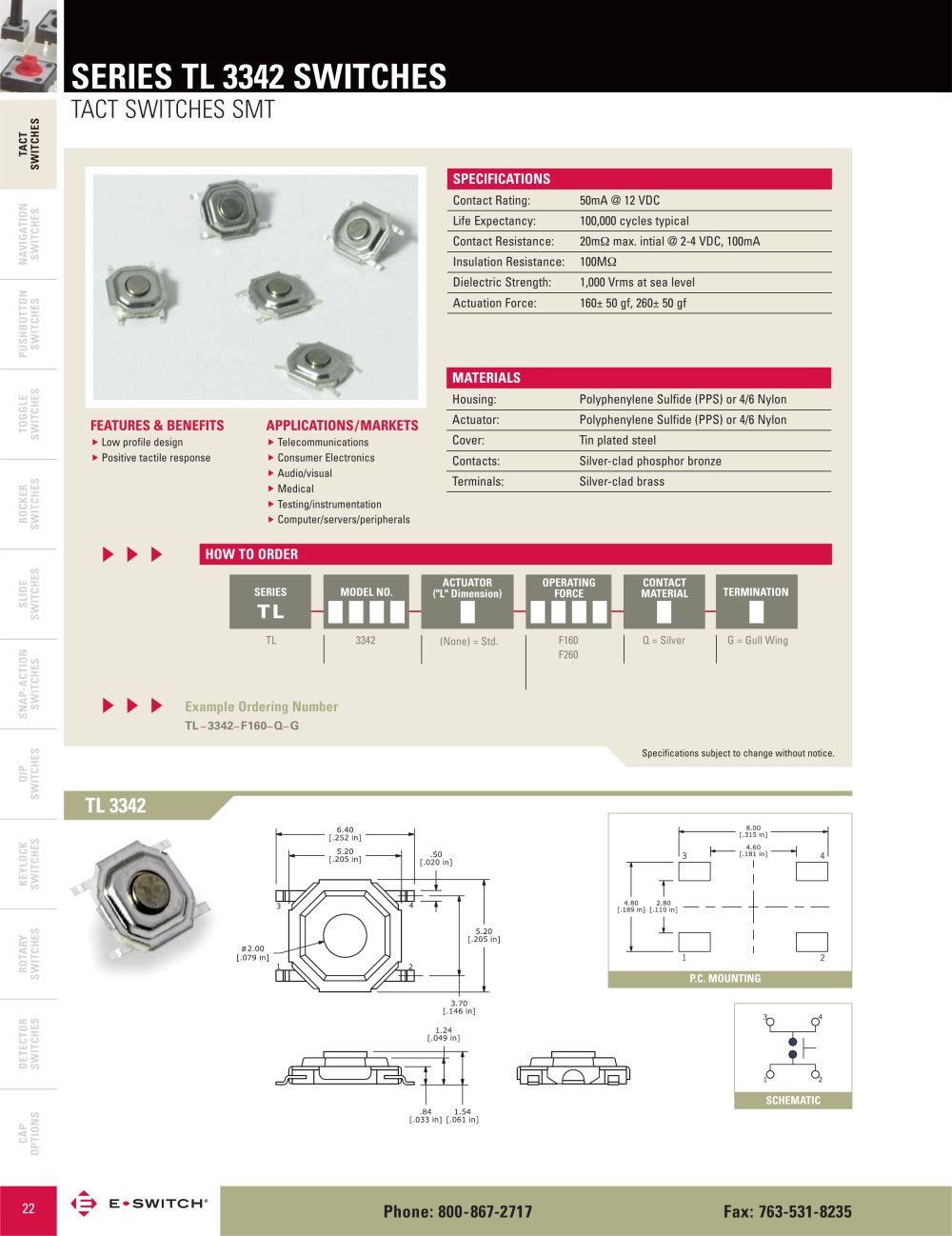

SERIES TL 3342 SWITCHES TACT SWITCHES SMT

TACTSWITCHES

SPECIFICATIONS

Contact Rating:50mA @ 12 VDC Life Expectancy:100,000 cycles typical Contact Resistance:20m max. intial @ 2-4 VDC, 100mA
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:100M Dielectric Strength:1,000 Vrms at sea level Actuation Force:160± 50 gf, 260± 50 gf

MATERIALS

Housing:Polyphenylene Sulfide (PPS) or 4/6 Nylon

FEATURES & BENEFITS APPLICATIONS/MARKETS

Actuator:Polyphenylene Sulfide (PPS) or 4/6 Nylon
Low profile designPositive tactile response Telecommunications Consumer ElectronicsAudio/visual Medical Testing/instrumentation Computer/servers/peripherals Cover:Tin plated steel Contacts:Silver-clad phosphor bronze Terminals:Silver-clad brass
▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) SERIESOPERATINGFORCECONTACTMATERIAL MODEL NO. TERMINATION

TL

TL 3342F160F260Q = SilverG = Gull Wing (None) = Std.

Example Ordering Number

TL_3342_F160_Q_G Specifications subject to change without notice.

TL 3342

P.C. MOUNTING SCHEMATIC

22

Phone: 800-867-2717Fax: 763-531-8235
