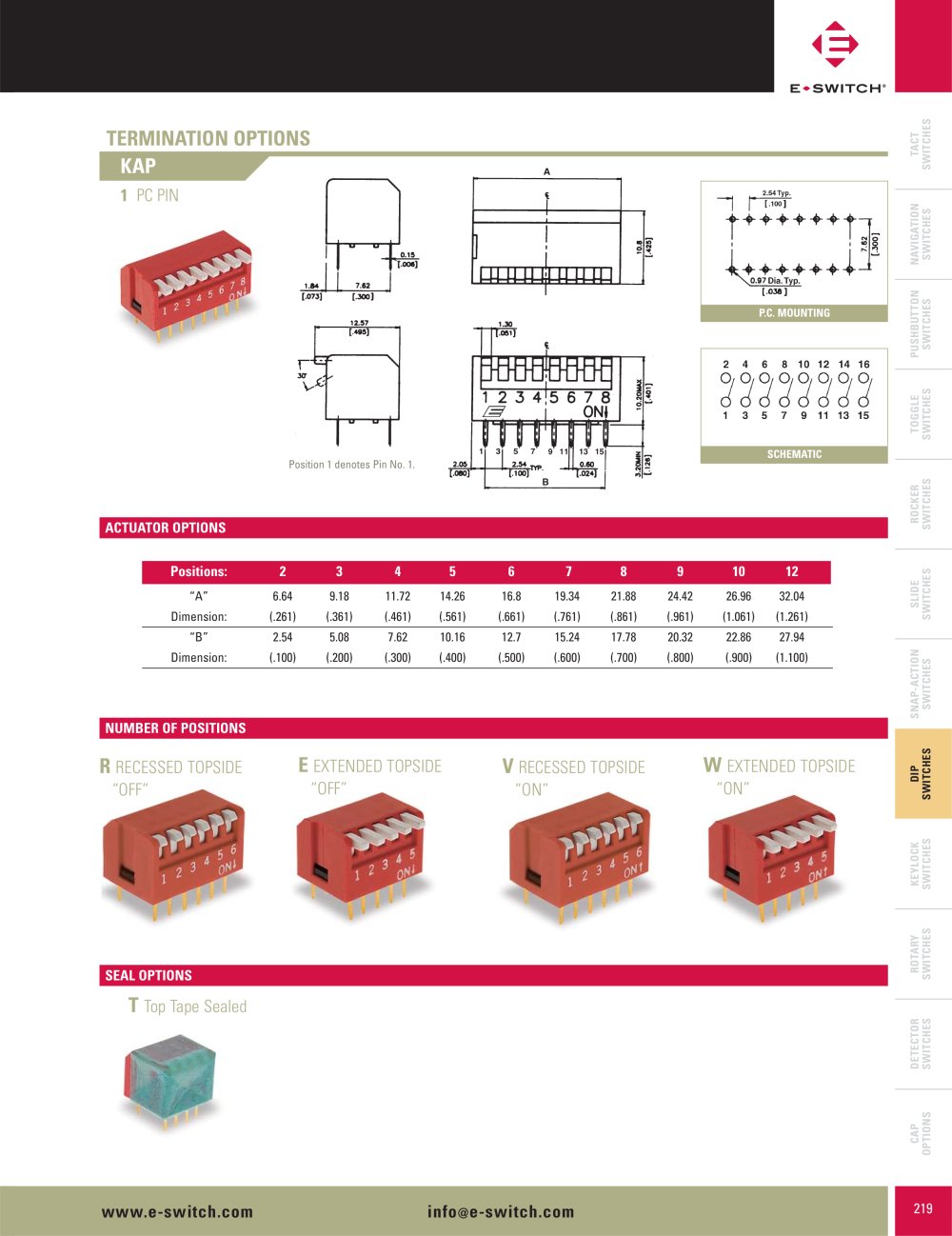

TERMINATION OPTIONS KAP
1 PC PINP.C. MOUNTING SCHEMATIC Position 1 denotes Pin No. 1. ACTUATOR OPTIONS Positions:234567891012 “A”6.649.1811.7214.2616.819.3421.8824.4226.9632.04 Dimension:(.261)(.361)(.461)(.561)(.661)(.761)(.861)(.961)(1.061)(1.261)“B”2.545.087.6210.1612.715.2417.7820.3222.8627.94 Dimension:(.100)(.200)(.300)(.400)(.500)(.600)(.700)(.800)(.900)(1.100) SNAP-ACTIONSWITCHESSLIDESWITCHESROCKERSWITCHESTOGGLESWITCHESPUSHBUTTONSWITCHESNAVIGATIONSWITCHESTACTSWITCHES NUMBER OF POSITIONS
R
RECESSED TOPSIDE “OFF”E
EXTENDED TOPSIDE “OFF”V
RECESSED TOPSIDE “ON”W
EXTENDED TOPSIDE “ON”DIPSWITCHES SEAL OPTIONS
T
Top Tape SealedCAPOPTIONSDETECTORSWITCHESROTARYSWITCHESKEYLOCKSWITCHES info
