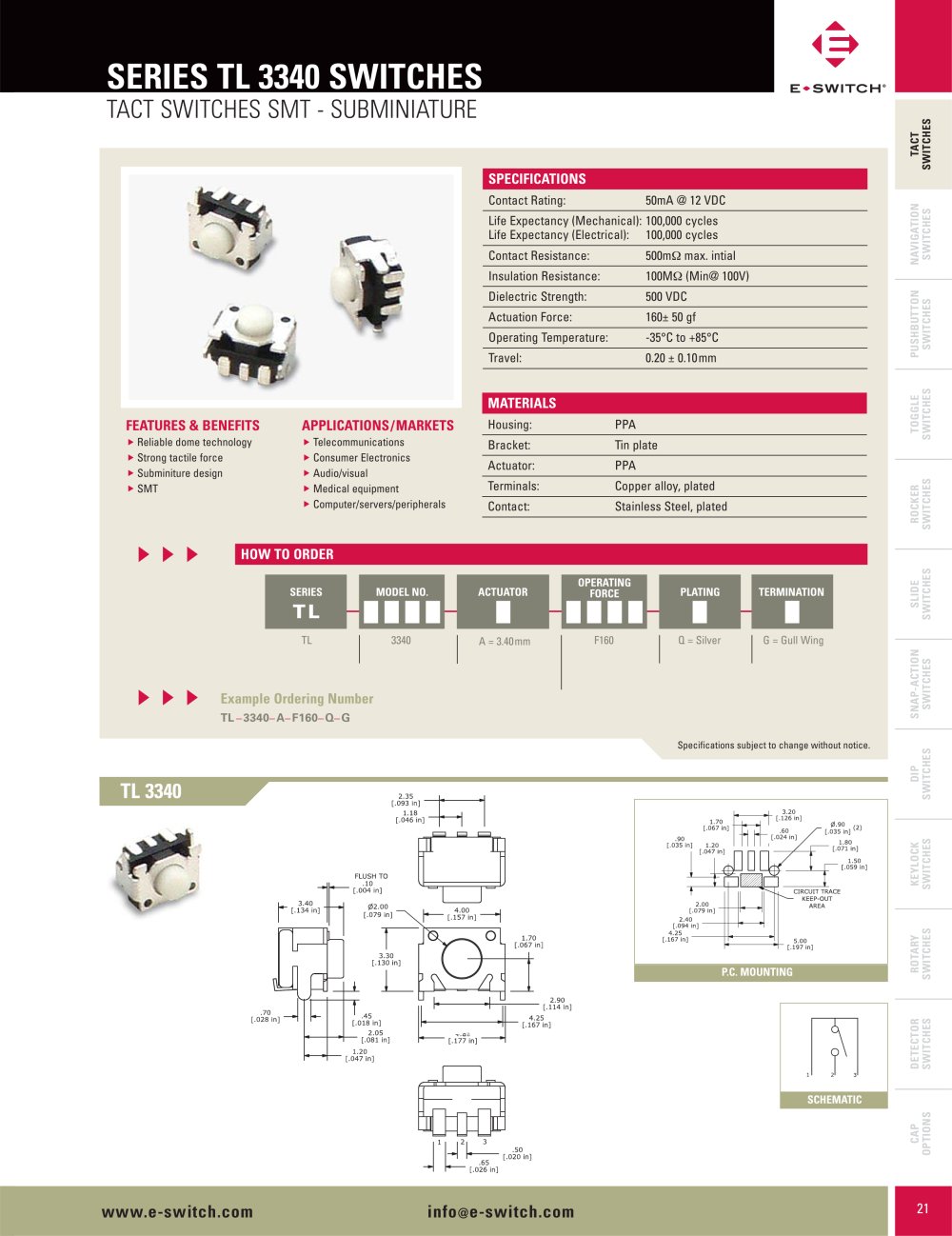

SERIES TL 3340 SWITCHES TACT SWITCHES SMT - SUBMINIATURE
TACTSWITCHESSPECIFICATIONS
Contact Rating:50mA @ 12 VDCLife Expectancy (Mechanical):100,000 cycles Life Expectancy (Electrical):100,000 cycles Contact Resistance:500m max. intialNAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:100M (Min@ 100V) Dielectric Strength:500 VDC Actuation Force:160± 50 gf Operating Temperature:-35°C to +85°C Travel:0.20 ± 0.10mm
MATERIALS FEATURES & BENEFITS APPLICATIONS/MARKETS
Housing:PPAReliable dome technologyStrong tactile forceSubminiture design SMT TelecommunicationsConsumer ElectronicsAudio/visual Medical equipment Computer/servers/peripherals Bracket:Tin plate Actuator:PPA Terminals:Copper alloy, plated Contact:Stainless Steel, plated
▲▲ ▲▲▲ ▲
