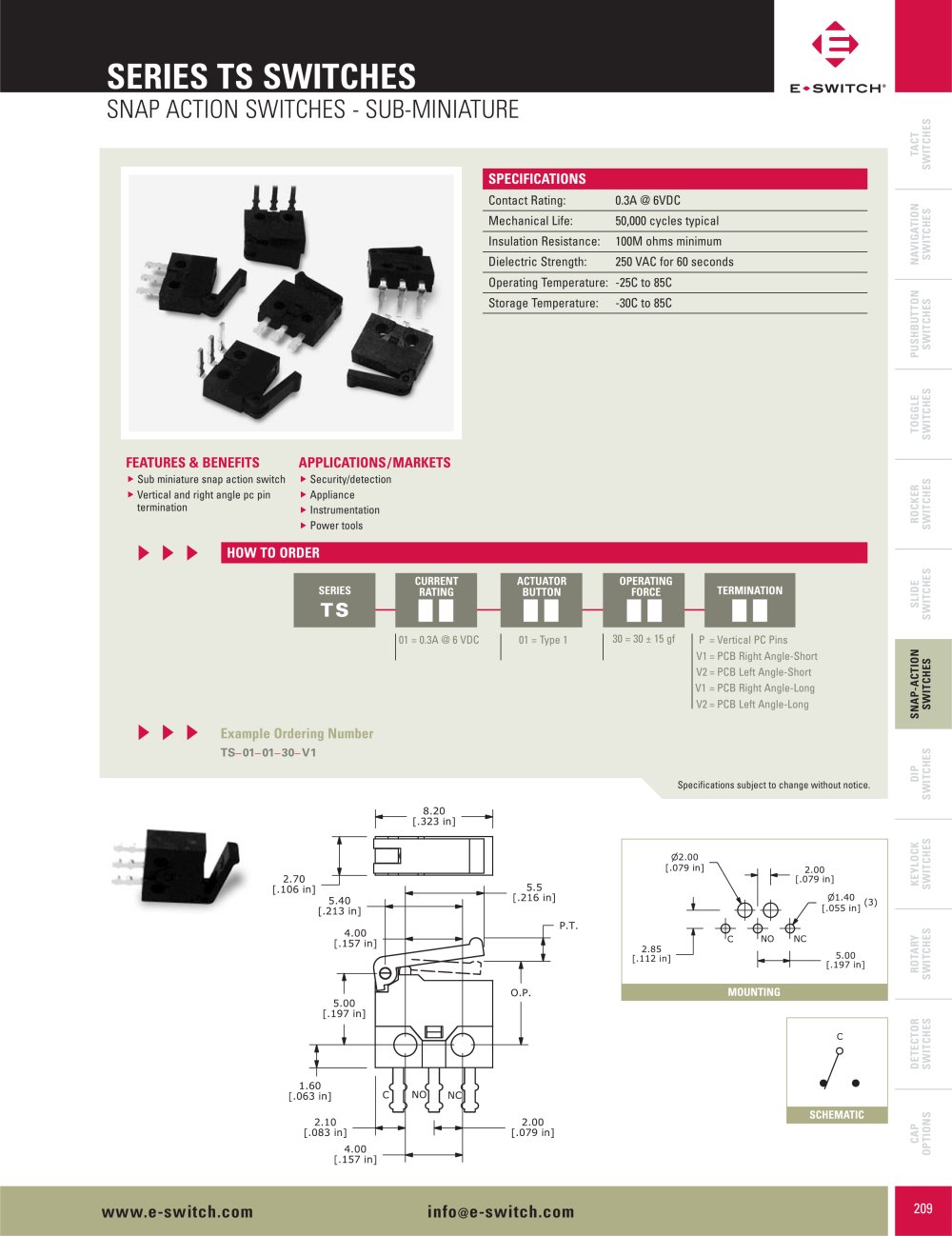

SERIES TS SWITCHES SNAP ACTION SWITCHES - SUB-MINIATURE
TACTSWITCHESNAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSPECIFICATIONS
Contact Rating:0.3A @ 6VDC Mechanical Life:50,000 cycles typical Insulation Resistance:100M ohms minimum Dielectric Strength:250 VAC for 60 seconds Operating Temperature:-25C to 85C Storage Temperature:-30C to 85C
APPLICATIONS/MARKETS
Sub miniature snap action switchVertical and right angle pc pin termination Security/detectionAppliance Instrumentation Power tools▲▲ ▲▲▲ ▲
HOW TO ORDERFEATURES & BENEFITS
CURRENTRATING ACTUATORBUTTON OPERATINGFORCE SERIES TERMINATIONTS
01 = 0.3A @ 6 VDC 01 = Type 1 30 = 30 ± 15 gf P=Vertical PC PinsV1=PCB Right Angle-Short V2=PCB Left Angle-ShortV1=PCB Right Angle-LongV2=PCB Left Angle-LongSNAP-ACTIONSWITCHES
