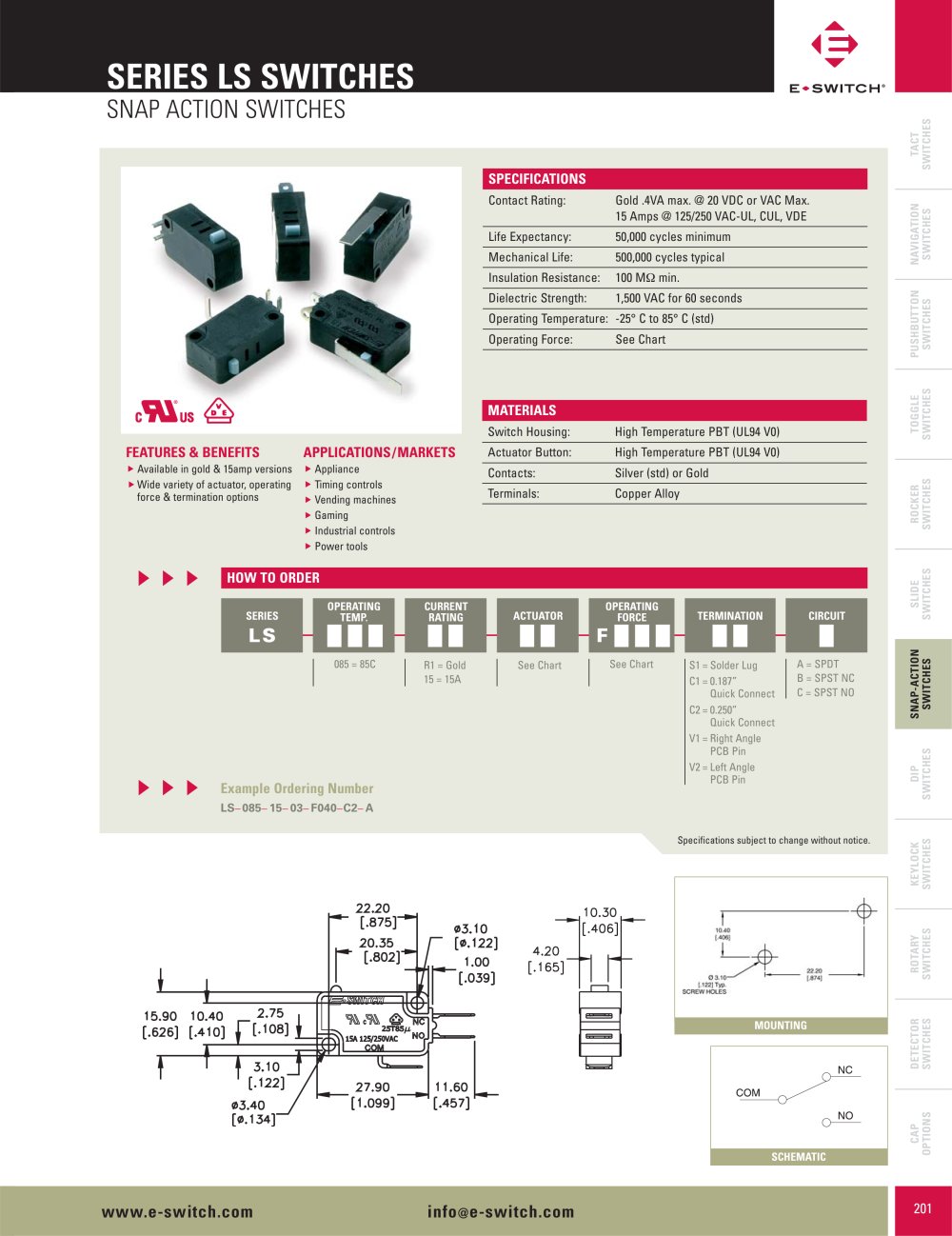

SERIES LS SWITCHES SNAP ACTION SWITCHES
TACTSWITCHESNAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSPECIFICATIONS
Contact Rating:Gold .4VA max. @ 20 VDC or VAC Max. 15 Amps @ 125/250 VAC-UL, CUL, VDE Life Expectancy:50,000 cycles minimum Mechanical Life:500,000 cycles typical Insulation Resistance:100 M min. Dielectric Strength:1,500 VAC for 60 seconds Operating Temperature:-25° C to 85° C (std) Operating Force:See Chart
MATERIALS
Switch Housing:High Temperature PBT (UL94 V0)
FEATURES & BENEFITS APPLICATIONS/MARKETS
Actuator Button:High Temperature PBT (UL94 V0)
Available in gold & 15amp versionsWide variety of actuator, operatingforce & termination options ApplianceTiming controls Vending machines Gaming Industrial controls Power toolsContacts:Silver (std) or Gold Terminals:Copper Alloy
▲▲ ▲▲▲ ▲HOW TO ORDER
OPERATINGTEMP. CURRENTRATING SERIESOPERATINGFORCE ACTUATOR TERMINATION CIRCUITLS F
085 = 85CSee Chart R1 = Gold 15 = 15A See Chart S1=Solder LugC1=0.187”Quick ConnectC2=0.250”Quick ConnectV1=Right AnglePCB PinV2=Left AnglePCB Pin A = SPDTB = SPST NC C = SPST NOSNAP-ACTIONSWITCHES DIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS
