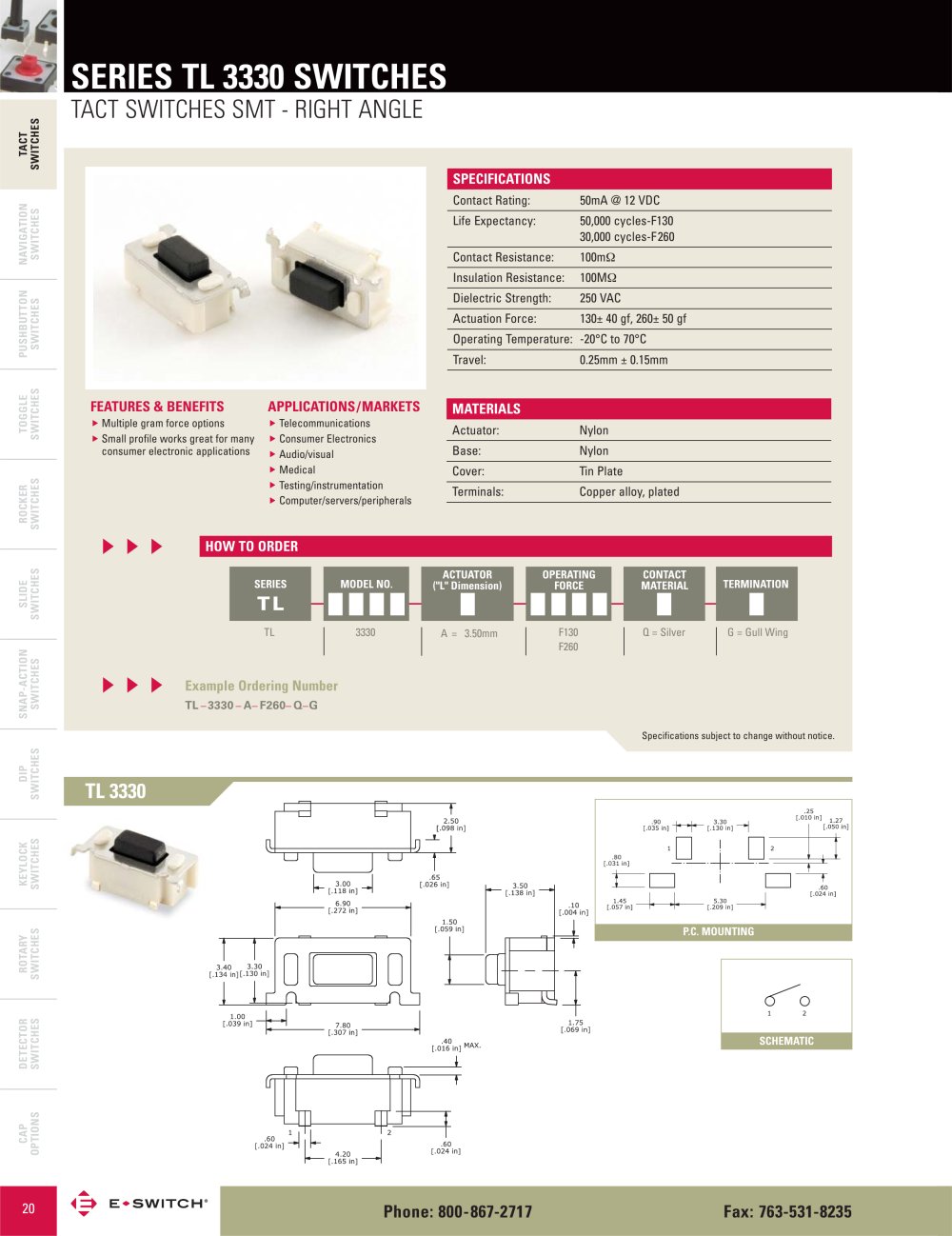

SERIES TL 3330 SWITCHES TACT SWITCHES SMT - RIGHT ANGLE
TACTSWITCHESSPECIFICATIONS
Contact Rating:50mA @ 12 VDCLife Expectancy:50,000 cycles-F130 30,000 cycles-F260NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Contact Resistance:100m Insulation Resistance:100M Dielectric Strength:250 VAC Actuation Force:130± 40 gf, 260± 50 gf Operating Temperature:-20°C to 70°C Travel:0.25mm ± 0.15mm
FEATURES & BENEFITS APPLICATIONS/MARKETS MATERIALS
Multiple gram force optionsSmall profile works great for manyconsumer electronic applications TelecommunicationsConsumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Actuator:Nylon Base:Nylon Cover:Tin Plate Terminals:Copper alloy, plated▲▲ ▲▲▲ ▲
