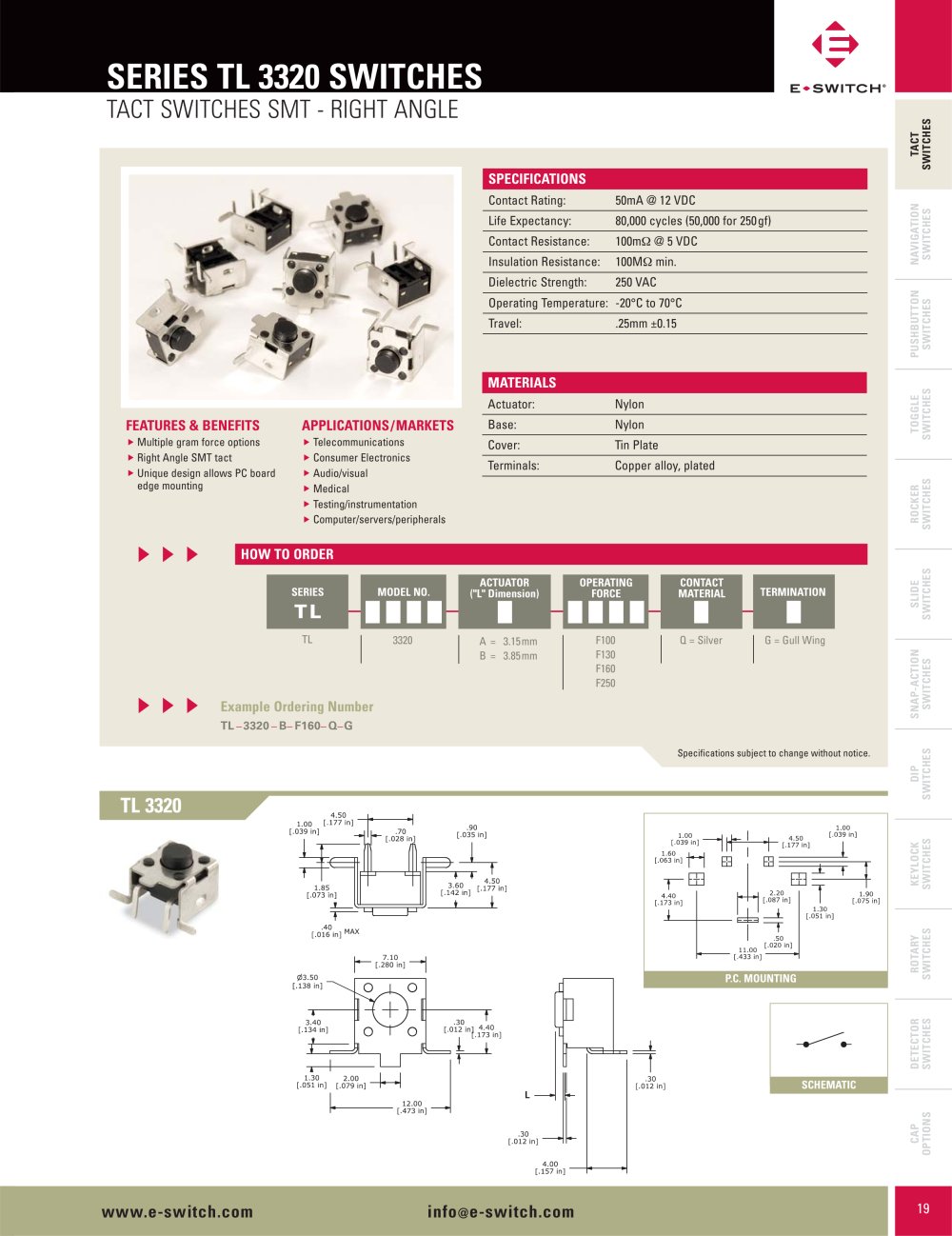

SERIES TL 3320 SWITCHES TACT SWITCHES SMT - RIGHT ANGLE

TACTSWITCHES

SPECIFICATIONS

Contact Rating:50mA @ 12 VDC Life Expectancy:80,000 cycles (50,000 for 250gf) Contact Resistance:100m @ 5 VDC Insulation Resistance:100M min.
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Dielectric Strength:250 VAC Operating Temperature:-20°C to 70°C Travel:.25mm ±0.15

MATERIALS

Actuator:Nylon

FEATURES & BENEFITS APPLICATIONS/MARKETS

Base:Nylon
Multiple gram force optionsRight Angle SMT tactUnique design allows PC boardedge mounting TelecommunicationsConsumer ElectronicsAudio/visual Medical Testing/instrumentation Computer/servers/peripherals Cover:Tin Plate Terminals:Copper alloy, plated
▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) SERIESOPERATINGFORCECONTACTMATERIAL MODEL NO. TERMINATION

TL

TL 3320F100F130 F160 F250Q = SilverG = Gull Wing A=3.15mmB=3.85mm

Example Ordering Number

TL_3320_B_F160_Q_G Specifications subject to change without notice.
