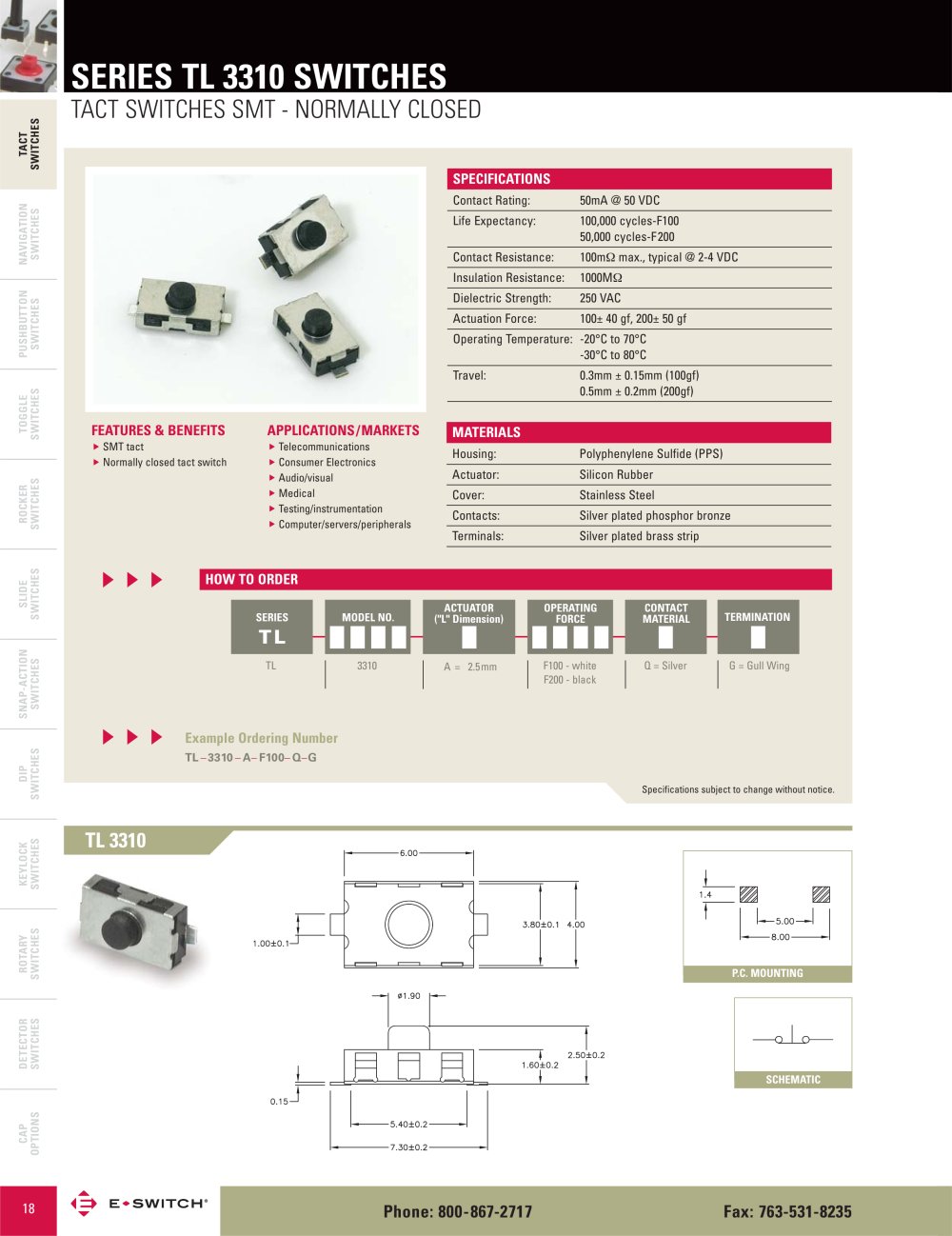

SERIES TL 3310 SWITCHES TACT SWITCHES SMT - NORMALLY CLOSED
TACTSWITCHESSPECIFICATIONS
Contact Rating:50mA @ 50 VDCLife Expectancy:100,000 cycles-F100 50,000 cycles-F200NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Contact Resistance:100m max., typical @ 2-4 VDC Insulation Resistance:1000M Dielectric Strength:250 VAC Actuation Force:100± 40 gf, 200± 50 gfOperating Temperature:-20°C to 70°C -30°C to 80°CTravel:0.3mm ± 0.15mm (100gf) 0.5mm ± 0.2mm (200gf)
FEATURES & BENEFITS APPLICATIONS/MARKETS MATERIALS
SMT tactNormally closed tact switch Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Housing:Polyphenylene Sulfide (PPS) Actuator:Silicon Rubber Cover:Stainless Steel Contacts:Silver plated phosphor bronze Terminals:Silver plated brass strip▲▲ ▲▲▲ ▲
