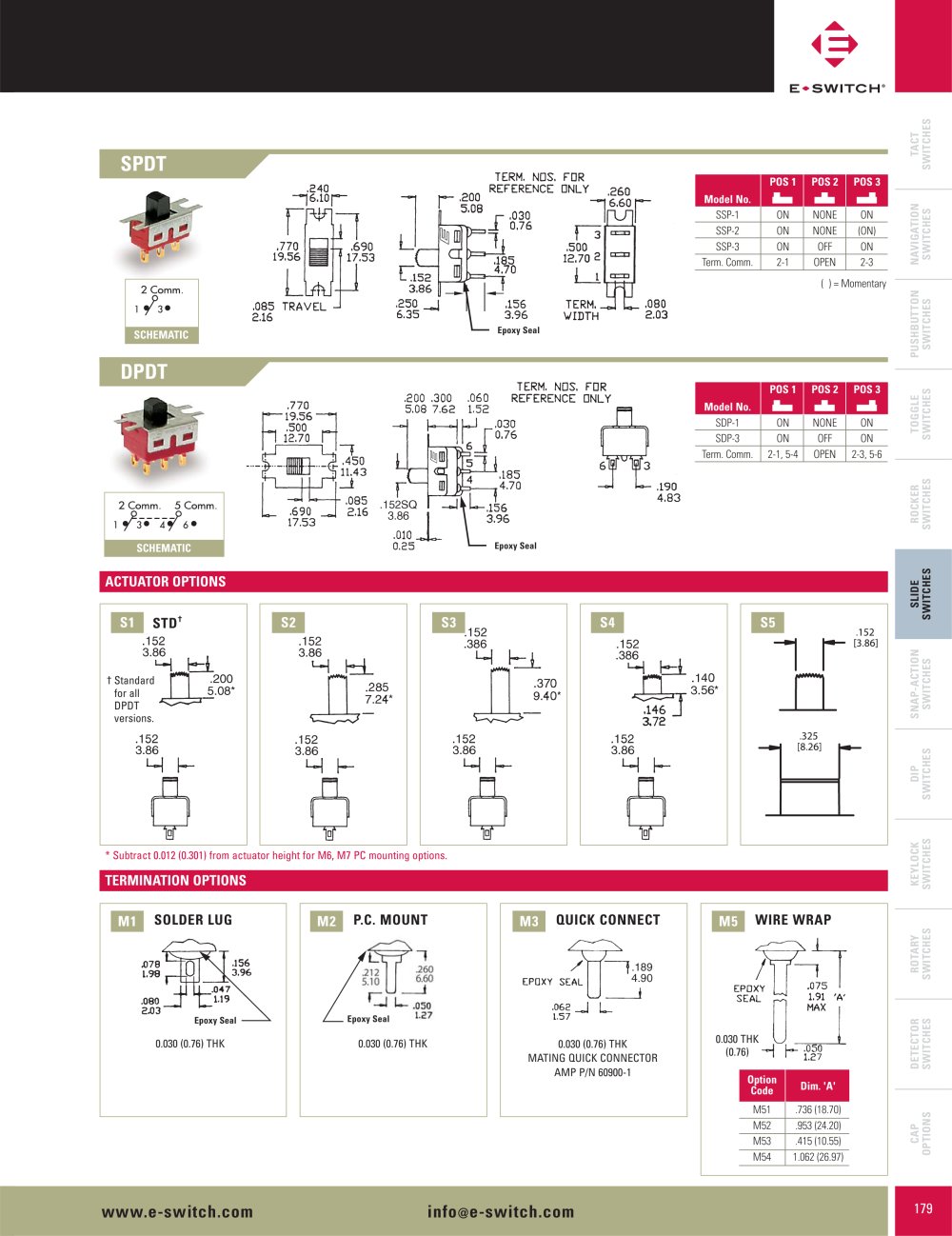

SPDT
TACTSWITCHESNAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHES POS 1POS 2POS 3Model No. SSP-1ONNONEONSSP-2ONNONE(ON) SSP-3ONOFFONTerm. Comm.2-1OPEN2-3 ( ) = Momentary SCHEMATIC Epoxy SealDPDT
POS 1POS 2POS 3Model No. SDP-1ONNONEONSDP-3ONOFFONTerm. Comm.2-1, 5-4OPEN2-3, 5-6 SCHEMATIC Epoxy Seal ACTUATOR OPTIONSSLIDESWITCHES S1 STD
† S2 S3 S4 S5
† Standardfor all DPDT versions. SNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS * Subtract 0.012 (0.301) from actuator height for M6, M7 PC mounting options. TERMINATION OPTIONS M1 SOLDER LUG M2 P.C. MOUNT M3 QUICK CONNECT M5 WIRE WRAP
Epoxy Seal Epoxy Seal 0.030 (0.76) THK0.030 (0.76) THK0.030 THK(0.76)0.030 (0.76) THKMATING QUICK CONNECTORAMP P/N 60900-1 OptionCodeDim. 'A' M51.736 (18.70)M52.953 (24.20)M53.415 (10.55)M541.062 (26.97)
