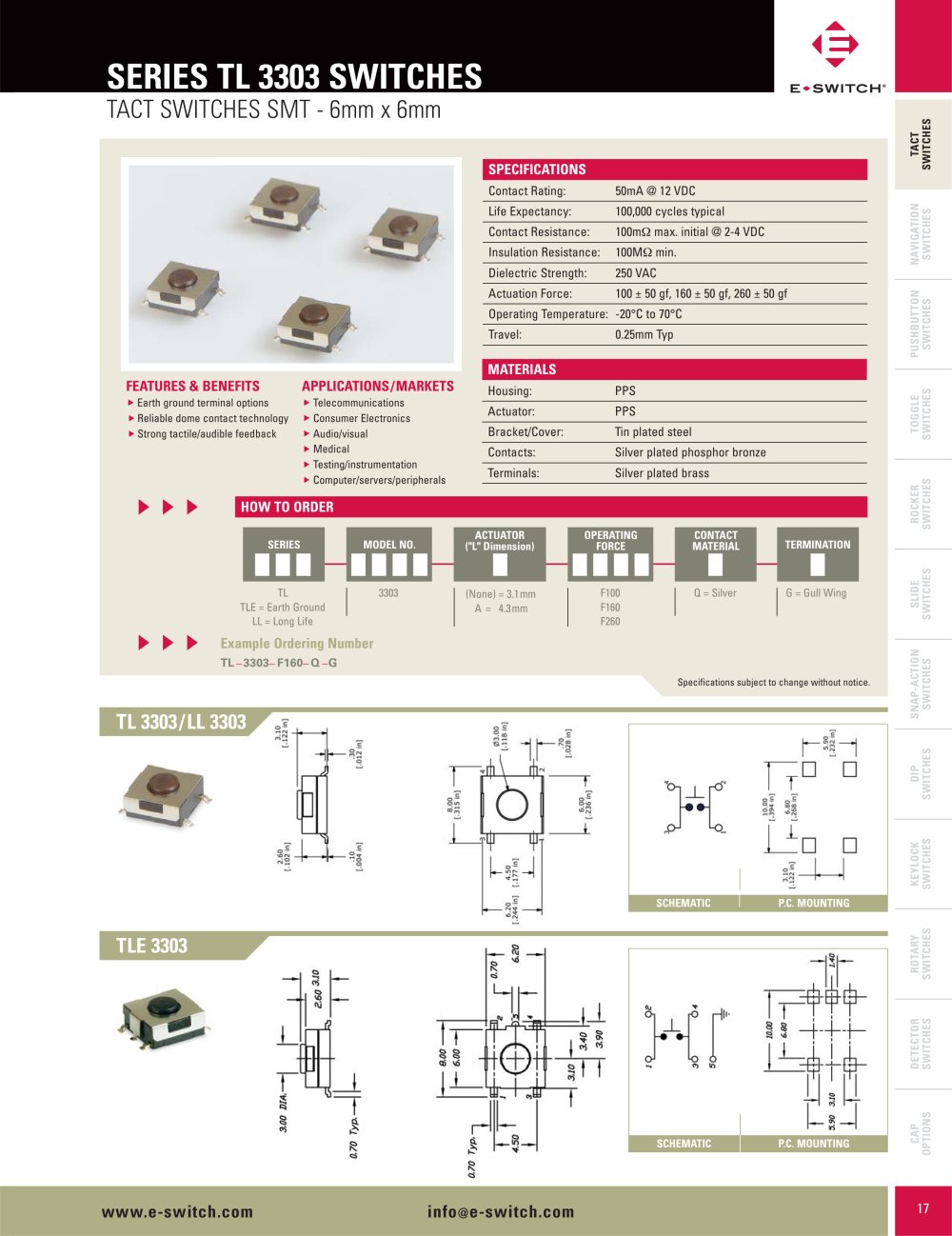

SERIES TL 3303 SWITCHES
TACT SWITCHES SMT - 6mm x 6mm
TACTSWITCHESSPECIFICATIONS
Contact Rating: 50mA @ 12 VDC Life Expectancy: 100,000 cycles typical Contact Resistance: 100m max. initial @ 2-4 VDC Insulation Resistance: 100M min.NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Dielectric Strength: 250 VAC Actuation Force: 100 ± 50 gf, 160 ± 50 gf, 260 ± 50 gf Operating Temperature:-20°C to 70°C Travel:0.25mm Typ
MATERIALS FEATURES & BENEFITS APPLICATIONS/MARKETS
Housing:PPSEarth ground terminal optionsReliable dome contact technology Strong tactile/audible feedback Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Actuator:PPS Bracket/Cover:Tin plated steel Contacts: Silver plated phosphor bronze Terminals:Silver plated brass
▲▲ ▲
