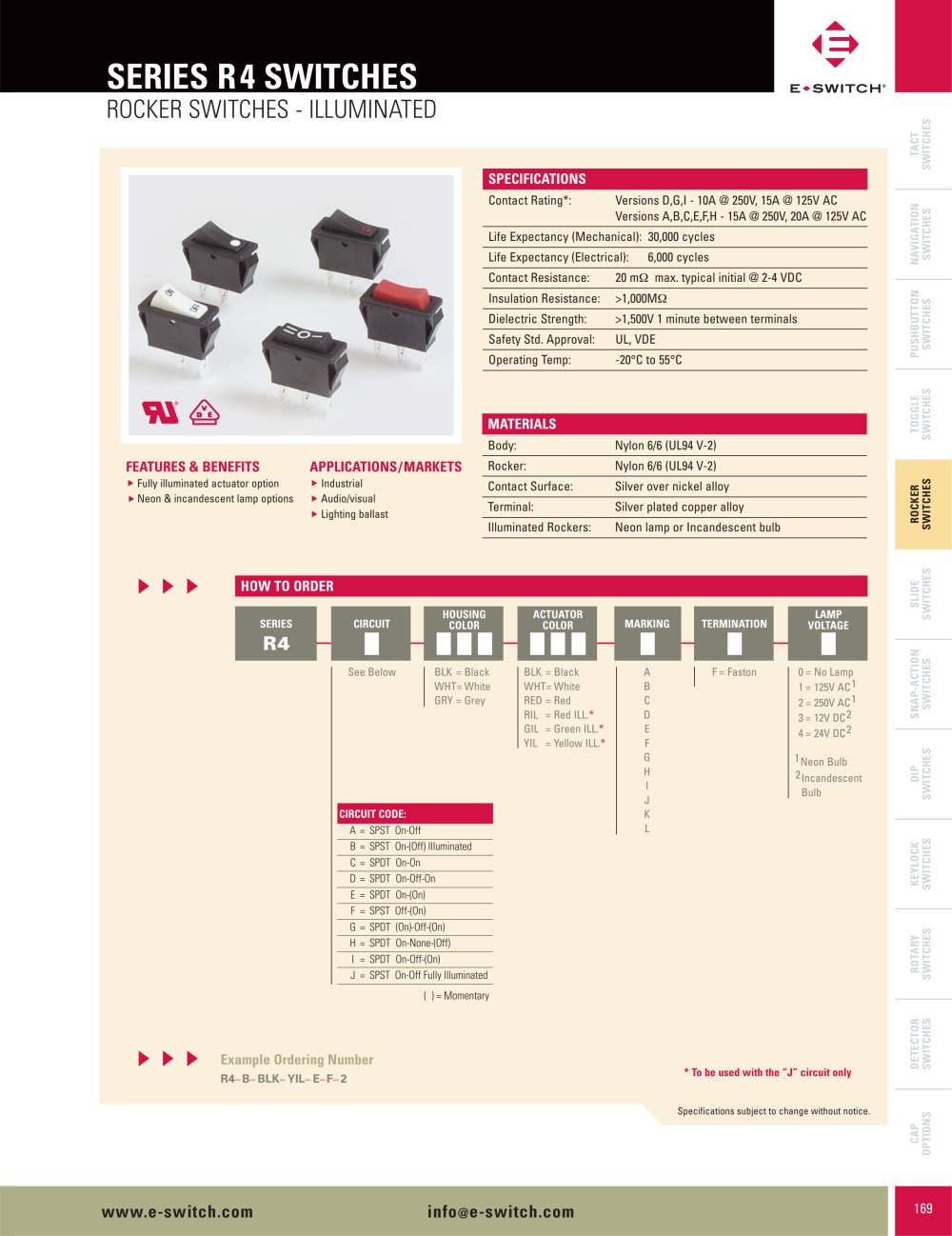

SERIES R4 SWITCHES ROCKER SWITCHES - ILLUMINATED

TACTSWITCHESNAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHES

SPECIFICATIONS

Contact Rating*: Versions D,G,I - 10A @ 250V, 15A @ 125V AC Versions A,B,C,E,F,H - 15A @ 250V, 20A @ 125V AC Life Expectancy (Mechanical):30,000 cycles Life Expectancy (Electrical): 6,000 cycles Contact Resistance: 20 m max. typical initial @ 2-4 VDC Insulation Resistance: >1,000M Dielectric Strength: >1,500V 1 minute between terminals Safety Std. Approval: UL, VDE Operating Temp:-20°C to 55°C

MATERIALS

Body:Nylon 6/6 (UL94 V-2)

APPLICATIONS/MARKETS

Rocker: Nylon 6/6 (UL94 V-2)

Fully illuminated actuator optionNeon & incandescent lamp options Industrial Audio/visual Lighting ballast

Contact Surface: Silver over nickel alloy Terminal: Silver plated copper alloy Illuminated Rockers: Neon lamp or Incandescent bulb

ROCKERSWITCHES ▲▲ ▲▲▲ ▲

HOW TO ORDERFEATURES & BENEFITS

SLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS HOUSINGCOLOR ACTUATORCOLOR LAMPVOLTAGE SERIES CIRCUIT MARKING TERMINATION

R4

See Below BLK=BlackWHT=White GRY=Grey BLK=BlackWHT=White RED=Red RIL=Red ILL.*GIL=Green ILL.*YIL=Yellow ILL.* ABCDEFG HIJKL F=Faston 0=No Lamp1=125V AC12=250V AC13=12V DC24=24V DC21Neon Bulb2IncandescentBulb CIRCUIT CODE: A=SPST On-Off B=SPST On-(Off) Illuminated C=SPDT On-OnD=SPDT On-Off-OnE=SPDT On-(On)F=SPST Off-(On)G=SPDT (On)-Off-(On)H=SPDT On-None-(Off)I=SPDT On-Off-(On)J=SPST On-Off Fully Illuminated ( ) = Momentary

Example Ordering Number

R4_B_BLK_YIL_E_F_2

* To be used with the “J” circuit only
Specifications subject to change without notice.
