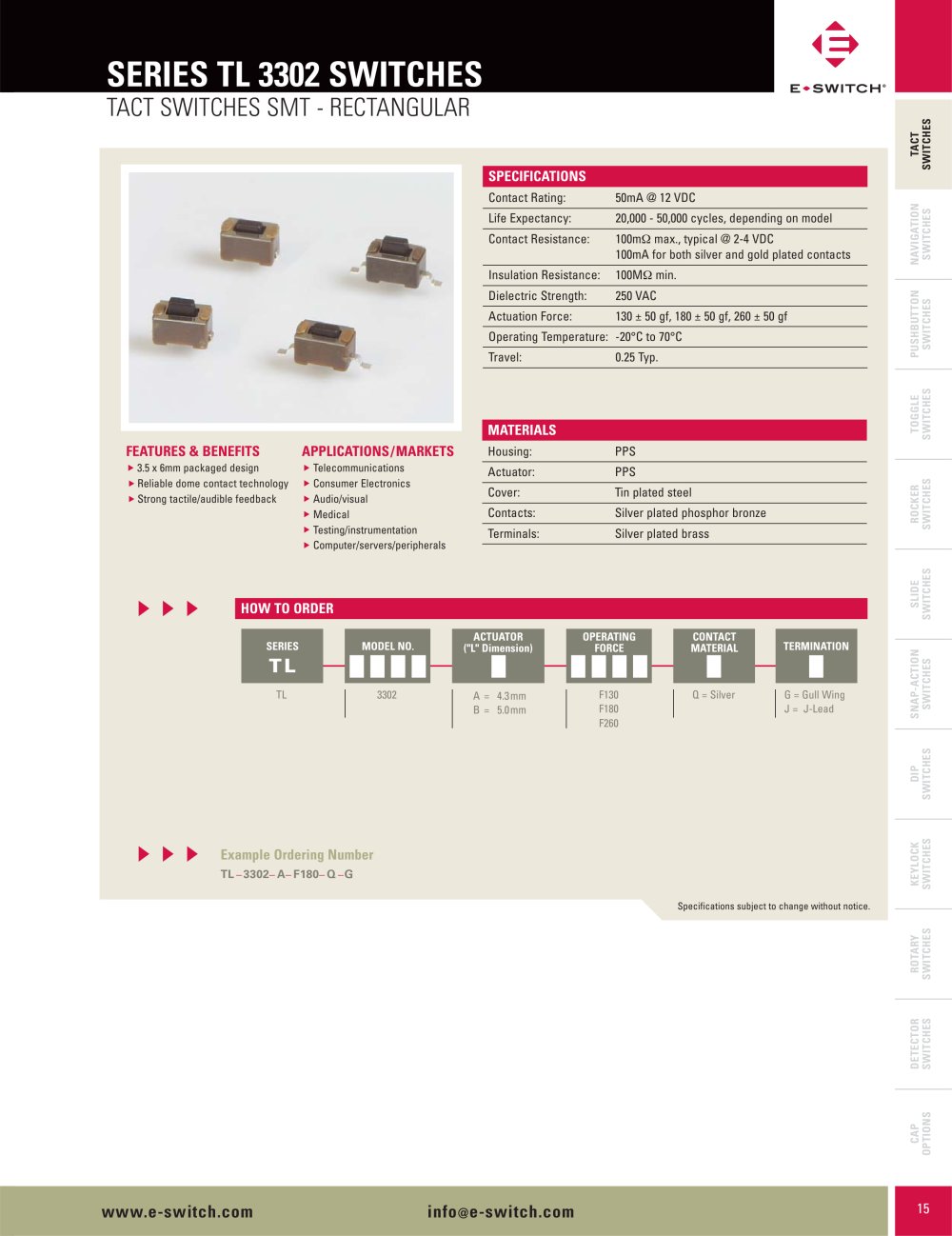

SERIES TL 3302 SWITCHES

TACT SWITCHES SMT - RECTANGULAR

TACTSWITCHES

SPECIFICATIONS

Contact Rating:50mA @ 12 VDC Life Expectancy:20,000 - 50,000 cycles, depending on modelContact Resistance:100m max., typical @ 2-4 VDC 100mA for both silver and gold plated contacts
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:100M min. Dielectric Strength:250 VAC Actuation Force:130 ± 50 gf, 180 ± 50 gf, 260 ± 50 gf Operating Temperature:-20°C to 70°C Travel:0.25 Typ.

MATERIALS FEATURES & BENEFITS APPLICATIONS/MARKETS

Housing:PPS
3.5 x 6mm packaged designReliable dome contact technology Strong tactile/audible feedback Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Actuator:PPS Cover:Tin plated steel Contacts:Silver plated phosphor bronze Terminals:Silver plated brass
▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) SERIESOPERATINGFORCECONTACTMATERIAL MODEL NO. TERMINATION

TL

3302F130F180F260Q = SilverG = Gull WingJ = J-Lead A=4.3mm B=5.0mmTL ▲▲ ▲

Example Ordering Number

TL_3302_A_F180_Q_G Specifications subject to change without notice.
