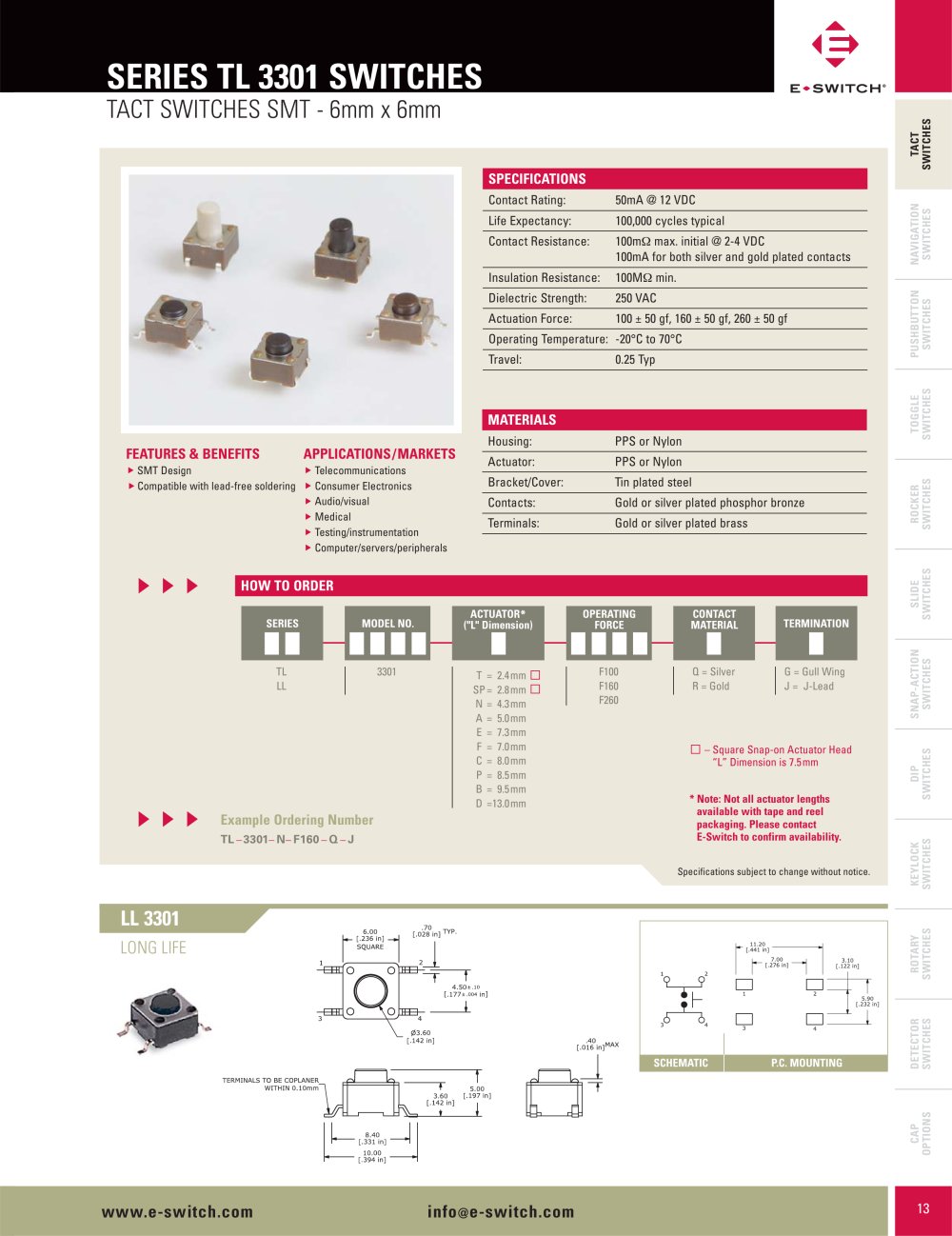

SERIES TL 3301 SWITCHES

TACT SWITCHES SMT - 6mm x 6mm

TACTSWITCHES

SPECIFICATIONS

Contact Rating: 50mA @ 12 VDC Life Expectancy: 100,000 cycles typicalContact Resistance: 100m max. initial @ 2-4 VDC 100mA for both silver and gold plated contacts
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:100M min. Dielectric Strength: 250 VAC Actuation Force: 100 ± 50 gf, 160 ± 50 gf, 260 ± 50 gf Operating Temperature:-20°C to 70°C Travel:0.25 Typ

MATERIALS

Housing:PPS or Nylon

FEATURES & BENEFITS APPLICATIONS/MARKETS

SMT DesignCompatible with lead-free soldering Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Actuator:PPS or Nylon Bracket/Cover:Tin plated steel Contacts: Gold or silver plated phosphor bronze Terminals:Gold or silver plated brass
▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR * SERIESOPERATINGFORCECONTACTMATERIAL MODEL NO. ("L" Dimension) TERMINATION TLLL 3301F100F160 F260Q = SilverR = GoldG = Gull WingJ = J-Lead T=2.4mm SP=2.8 mm N=4.3mmA=5.0mmE=7.3mmF=7.0mmC=8.0mm P=8.5mmB=9.5mm D=13.0mm – Square Snap-on Actuator Head“L” Dimension is 7.5mm * Note: Not all actuator lengthsavailable with tape and reel packaging. Please contact E-Switch to confirm availability.

Example Ordering Number

TL_3301_N_F160_Q_J Specifications subject to change without notice.

LL 3301

LONG LIFE

SCHEMATICP.C. MOUNTING

www.e-switch.cominfo

@

e-switch.com

13
