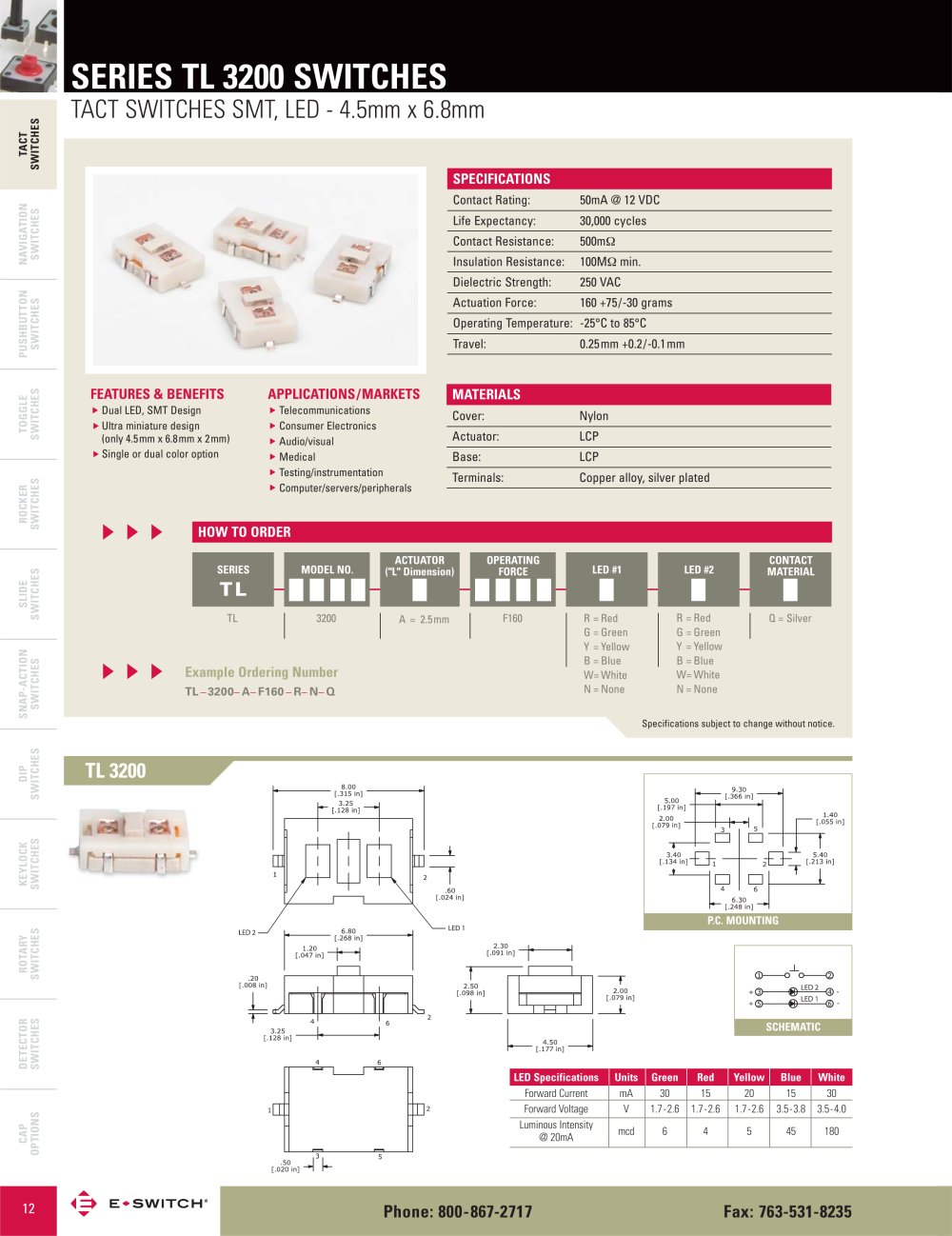

SERIES TL 3200 SWITCHES TACT SWITCHES SMT, LED - 4.5mm x 6.8mm

TACTSWITCHES

SPECIFICATIONS Contact Rating: 50mA @ 12 VDC Life Expectancy: 30,000 cycles Contact Resistance: 500m

NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS

Insulation Resistance:100M min. Dielectric Strength: 250 VAC Actuation Force: 160 +75/-30 grams Operating Temperature:-25°C to 85°C Travel:0.25mm +0.2/-0.1mm FEATURES & BENEFITS APPLICATIONS/MARKETS MATERIALS

Dual LED, SMT DesignUltra miniature design (only 4.5mm x 6.8mm x 2mm)Single or dual color option Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals

Cover:Nylon Actuator:LCP Base:LCP Terminals:Copper alloy, silver plated

▲▲ ▲▲▲ ▲

HOW TO ORDER

ACTUATOR("L" Dimension) SERIESOPERATINGFORCECONTACTMATERIAL MODEL NO. LED #1 LED #2

TL

3200F160Q = Silver A=2.5mmTL R=RedG=Green Y=Yellow B=Blue W=WhiteN=None R=RedG=Green Y=Yellow B=Blue W=White N=None

Example Ordering Number

TL_3200_A_F160_R_N_Q

Specifications subject to change without notice.

TL 3200

P.C. MOUNTING SCHEMATIC LED SpecificationsUnitsGreenRedYellowBlueWhite Forward CurrentmA3015201530Forward VoltageV1.7-2.61.7-2.61.7-2.63.5-3.83.5-4.0Luminous Intensitymcd64545180@ 20mA

12
