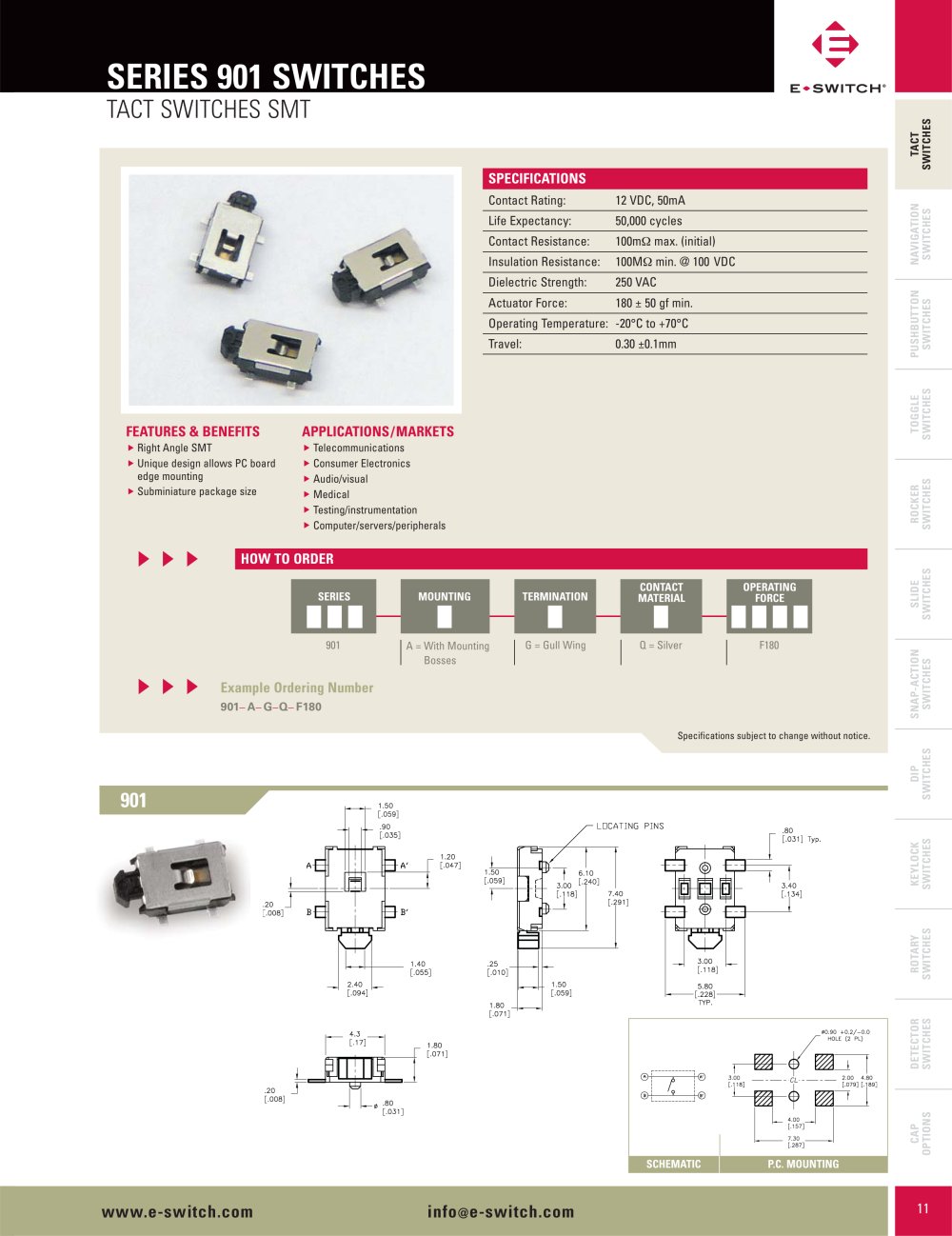

SERIES 901 SWITCHES

TACT SWITCHES SMT

TACTSWITCHES

SPECIFICATIONS

Contact Rating: 12 VDC, 50mA Life Expectancy: 50,000 cycles Contact Resistance: 100m max. (initial) Insulation Resistance:100M min. @ 100VDC
NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Dielectric Strength: 250 VAC Actuator Force:180 ± 50 gf min. Operating Temperature:-20°C to +70°C Travel:0.30 ±0.1mm

FEATURES & BENEFITS APPLICATIONS/MARKETS

Right Angle SMTUnique design allows PC boardedge mountingSubminiature package size Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals ▲▲ ▲

HOW TO ORDER

OPERATINGFORCECONTACTMATERIAL SERIES MOUNTING TERMINATION 901F180Q = SilverG = Gull Wing A = With MountingBosses ▲▲ ▲

Example Ordering Number

901_A_G_Q_F180 Specifications subject to change without notice.

901

SCHEMATICP.C. MOUNTING
