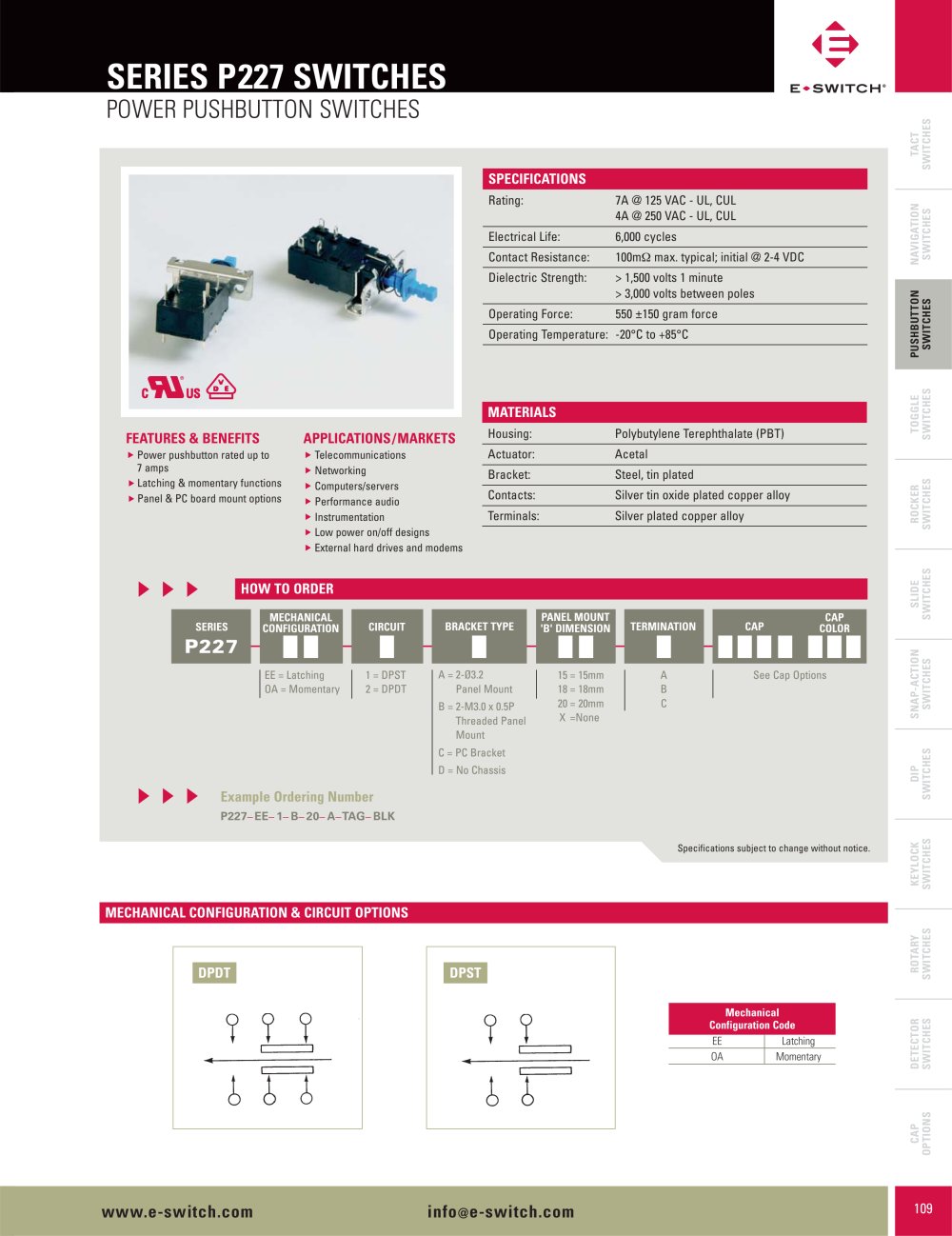

SERIES P227 SWITCHES

POWER PUSHBUTTON SWITCHES

TACTSWITCHESNAVIGATIONSWITCHES

SPECIFICATIONS

Rating:7A @ 125 VAC - UL, CUL 4A @ 250 VAC - UL, CUL Electrical Life:6,000 cycles Contact Resistance:100m max. typical; initial @ 2-4 VDCDielectric Strength:> 1,500 volts 1 minute > 3,000 volts between poles Operating Force:550

±

150 gram force Operating Temperature:-20°C to +85°C
PUSHBUTTONSWITCHES

MATERIALS APPLICATIONS/MARKETS

Housing:Polybutylene Terephthalate (PBT)
TOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Power pushbutton rated up to 7 ampsLatching & momentary functions P anel & PC board mount options Telecommunications Networking Computers/servers Performance audio Instrumentation Low power on/off designsExternal hard drives and modems Actuator:Acetal Bracket:Steel, tin plated Contacts:Silver tin oxide plated copper alloy Terminals:Silver plated copper alloy
▲▲ ▲▲▲ ▲

HOW TO ORDER FEATURES & BENEFITS

PANEL MOUNT'B' DIMENSION SERIESMECHANICALCONFIGURATIONBRACKET TYPE CIRCUIT TERMINATION CAPCAPCOLOR

P227

EE = LatchingOA = MomentarySee Cap Options 1 = DPST2 = DPDT A = 2-Ø3.2Panel MountB = 2-M3.0 x 0.5PThreaded Panel MountC = PC Bracket D = No Chassis 15=15mm 18=18mm20=20mmX=None ABC

Example Ordering Number

P227_EE_1_B_20_A_TAG_BLK Specifications subject to change without notice.

MECHANICAL CONFIGURATION & CIRCUIT OPTIONS DPDT DPST

MechanicalConfiguration Code EELatchingOAMomentary
