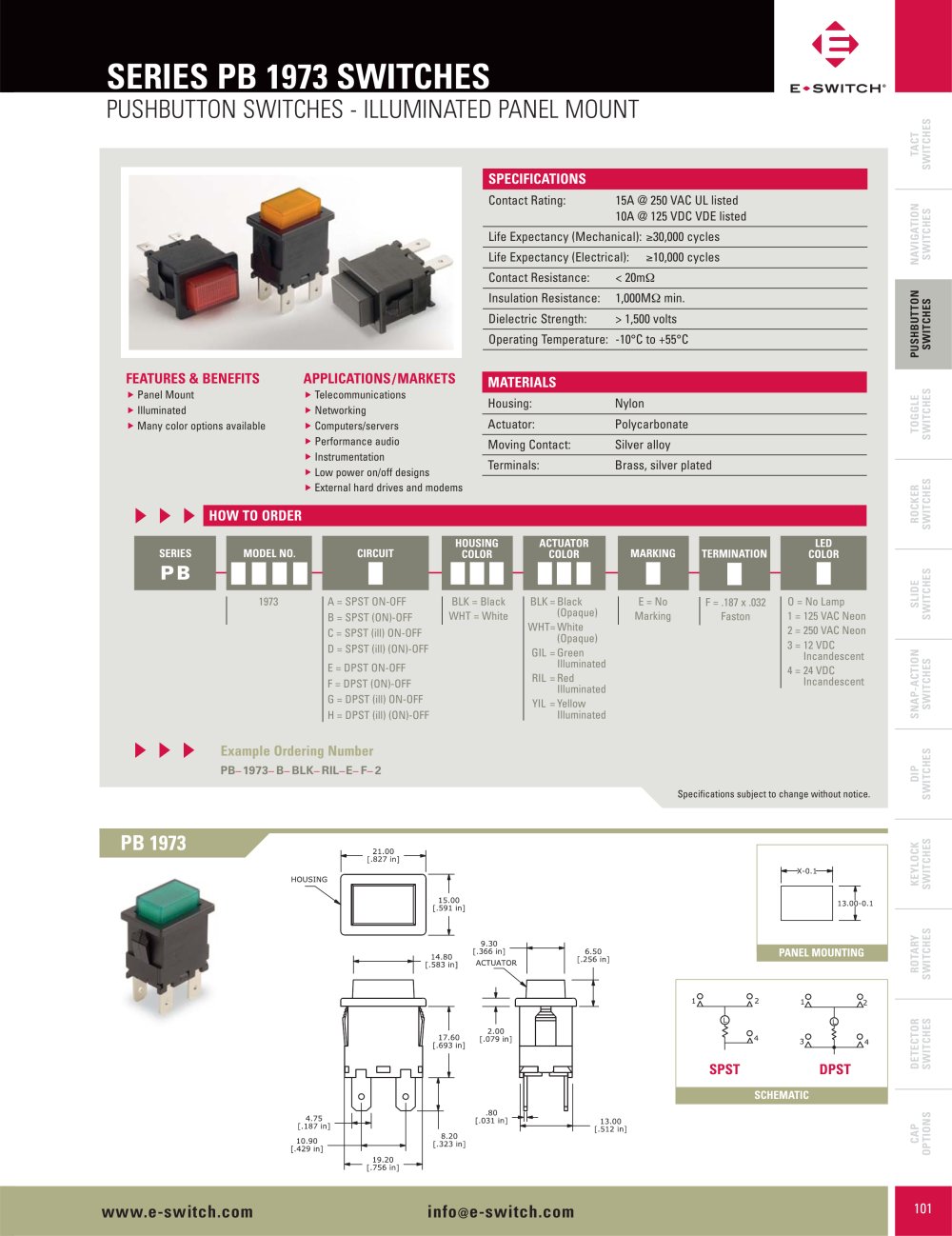

SERIES PB 1973 SWITCHES PUSHBUTTON SWITCHES - ILLUMINATED PANEL MOUNT

TACTSWITCHESNAVIGATIONSWITCHES

SPECIFICATIONS Contact Rating: 15A @ 250 VAC UL listed 10A @ 125 VDC VDE listed Life Expectancy (Mechanical): 30,000 cycles Life Expectancy (Electrical): 10,000 cycles Contact Resistance: 1,500 volts Operating Temperature:-10°C to +55°C

PUSHBUTTONSWITCHES

APPLICATIONS/MARKETS MATERIALS

Panel MountIlluminated Many color options available Telecommunications Networking Computers/servers Performance audio Instrumentation Low power on/off designsExternal hard drives and modems

Housing:Nylon Actuator:Polycarbonate

TOGGLESWITCHESROCKERSWITCHES SLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS

Moving Contact:Silver alloy Terminals:Brass, silver plated

▲▲ ▲▲▲ ▲

HOW TO ORDERFEATURES & BENEFITS

HOUSINGCOLOR ACTUATORCOLOR LEDCOLOR SERIES MODEL NO. CIRCUIT MARKING TERMINATION

PB

1973 A = SPST ON-OFFB = SPST (ON)-OFF C = SPST (ill) ON-OFFD = SPST (ill) (ON)-OFFE = DPST ON-OFFF = DPST (ON)-OFF G = DPST (ill) ON-OFF H = DPST (ill) (ON)-OFF BLK = BlackWHT = White BLK=Black(Opaque)WHT=White(Opaque)GIL=GreenIlluminatedRIL=RedIlluminatedYIL=YellowIlluminated E = NoMarking F = .187 x .032Faston O = No Lamp1 = 125 VAC Neon 2 = 250 VAC Neon3 = 12 VDC Incandescent4 = 24 VDCIncandescent

Example Ordering Number

PB_1973_B_BLK_RIL_E_F_2

Specifications subject to change without notice.

PB 1973

PANEL MOUNTING

SPSTDPST

SCHEMATIC
