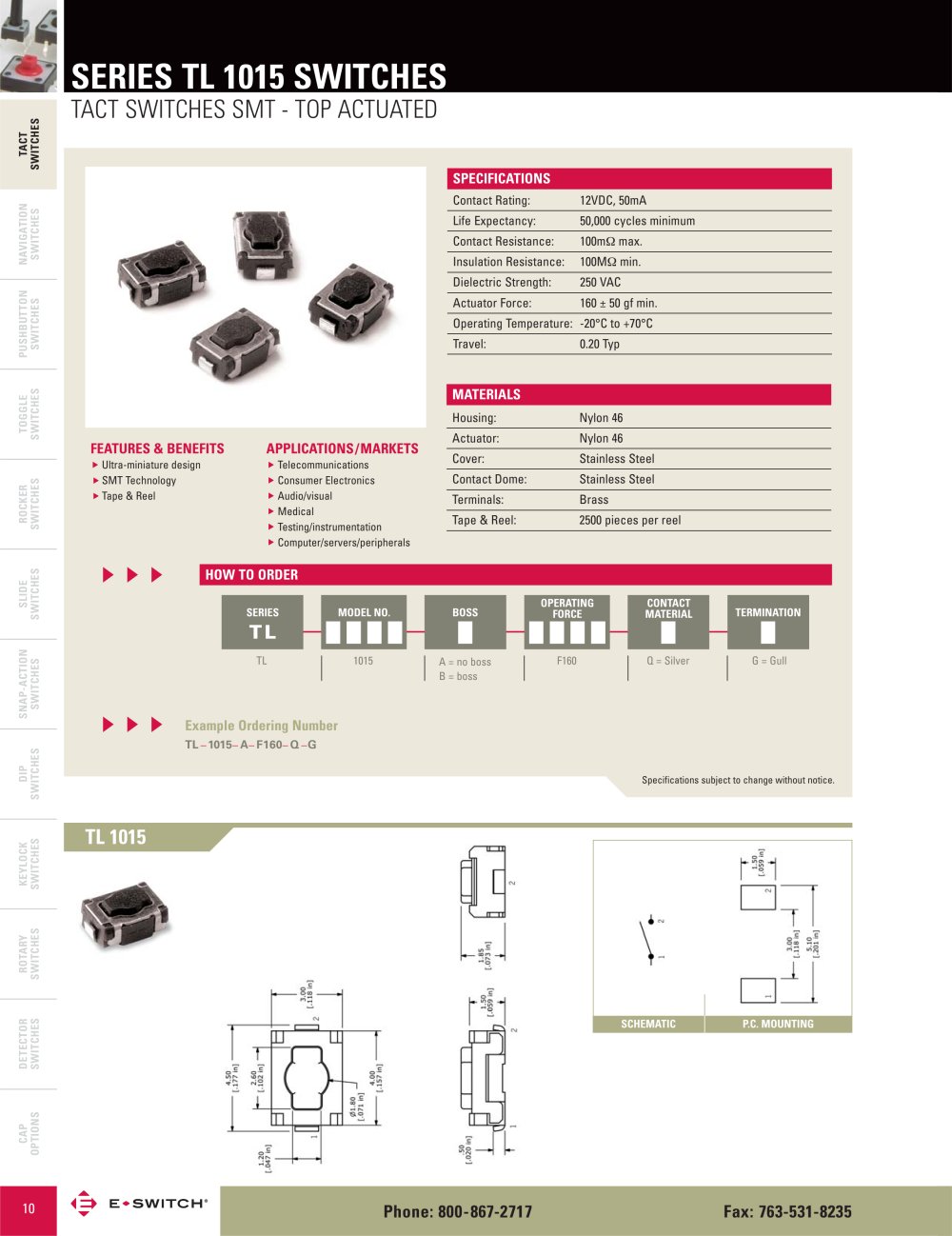

SERIES TL 1015 SWITCHES TACT SWITCHES SMT - TOP ACTUATED
TACTSWITCHESSPECIFICATIONS
Contact Rating: 12VDC, 50mA Life Expectancy: 50,000 cycles minimum Contact Resistance: 100m max.NAVIGATIONSWITCHESPUSHBUTTONSWITCHESTOGGLESWITCHESROCKERSWITCHESSLIDESWITCHESSNAP-ACTIONSWITCHESDIPSWITCHESKEYLOCKSWITCHESROTARYSWITCHESDETECTORSWITCHESCAPOPTIONS Insulation Resistance:100M min. Dielectric Strength: 250 VAC Actuator Force:160 ± 50 gf min. Operating Temperature:-20°C to +70°C Travel:0.20 Typ
MATERIALS
Housing:Nylon 46 Actuator:Nylon 46FEATURES & BENEFITS APPLICATIONS/MARKETS
Ultra-miniature designSMT Technology Tape & Reel Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Cover:Stainless Steel Contact Dome:Stainless Steel Terminals:Brass Tape & Reel:2500 pieces per reel▲▲ ▲
