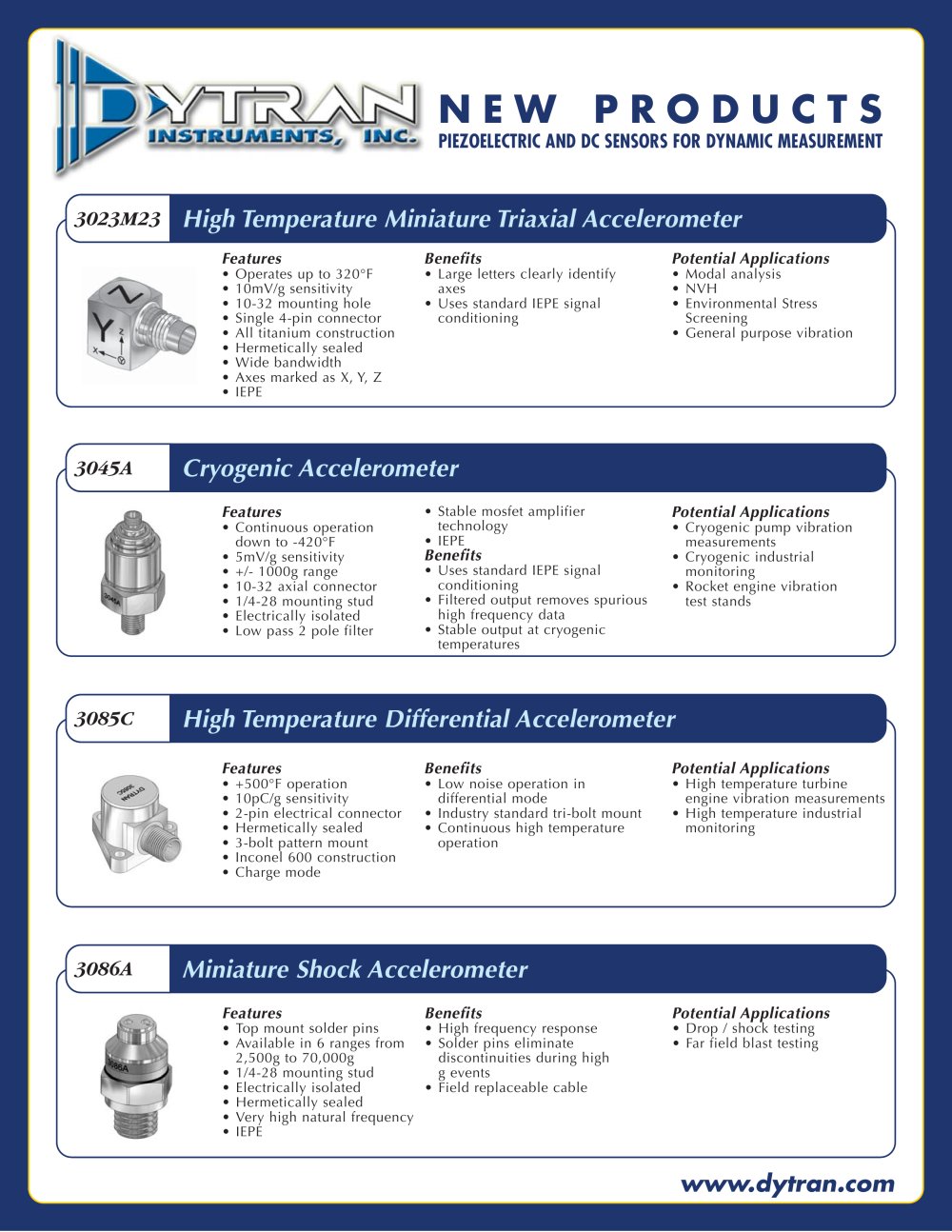

NEW PRODUCTS

3023M23

High Temperature Miniature Triaxial Industrial accelerometer

Features Benefits Potential Applications

•Operates up to 320°F•10mV/g sensitivity•10-32 mounting hole•Single 4-pin connector•All titanium construction•Hermetically sealed•Wide bandwidth •Axes marked as X, Y, Z•IEPE•Stable mosfet amplifier technology•IEPE •Large letters clearly identify axes•Uses standard IEPE signal conditioning •Modal analysis •NVH•Environmental Stress Screening•General purpose vibration

3045A

Cryogenic Accelerometer

Features Potential Applications

•Continuous operation down to -420°F•5mV/g sensitivity•+/- 1000g range•10-32 axial connector •1/4-28 mounting stud•Electrically isolated•Low pass 2 pole filter •Cryogenic pump vibration measurements•Cryogenic industrial monitoring•Rocket engine vibration test stands

Benefits

•Uses standard IEPE signal conditioning•Filtered output removes spurious high frequency data•Stable output at cryogenic temperatures

3085C

High Temperature Differential Accelerometer

Features Benefits Potential Applications

•+500°F operation•10pC/g sensitivity •2-pin industrial electrical connector•Hermetically sealed•3-bolt pattern mount •Inconel 600 construction•Charge mode •Low noise operation in differential mode•Industry standard tri-bolt mount•Continuous high temperature operation •High temperature turbine engine vibration measurements•High temperature industrial monitoring

3086A

Miniature Shock Accelerometer

Features Benefits Potential Applications

•Top mount solder pins •Available in 6 ranges from 2,500g to 70,000g•1/4-28 mounting stud•Electrically isolated•Hermetically sealed •Very high natural frequency•IEPE •High frequency response•Solder pins eliminate discontinuities during high g events•Field replaceable cable •Drop / shock testing•Far field blast testing

www.dytran.com
