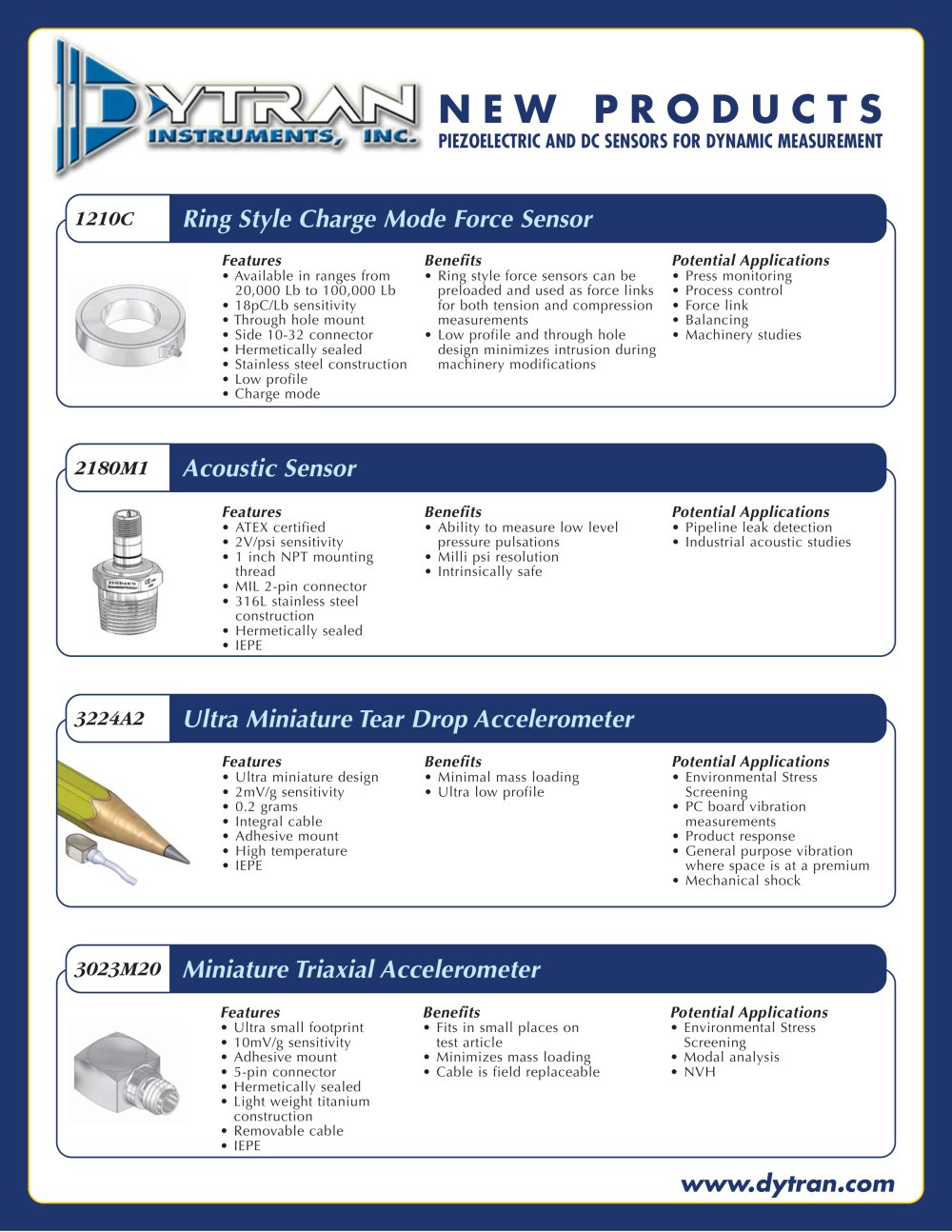

NEW PRODUCTS

1210C

Ring Style Charge Mode Force Sensor

Features Benefits Potential Applications

• Available in ranges from20,000 Lb to 100,000 Lb• 18pC/Lb sensitivity• Through hole mount• Side 10-32 connector• Hermetically sealed• Stainless steel construction• Low profile• Charge mode •Ring style force sensors can be preloaded and used as force links for both tension and compression measurements•Low profile and through hole design minimizes intrusion during machinery modifications •Press monitoring •Process control•Force link•Balancing •Machinery studies

2180M1

Acoustic sensor

Features Benefits Potential Applications

•ATEX certified •2V/psi sensitivity •1 inch NPT mounting thread•MIL 2-pin connector •316L stainless steel construction•Hermetically sealed•IEPE •Ability to measure low levelpressure pulsations•Milli psi resolution•Intrinsically safe •Pipeline leak detection•Industrial acoustic studies

3224A2

Ultra Miniature Tear Drop Accelerometer

Features Benefits Potential Applications

•Ultra miniature design•2mV/g sensitivity •0.2 grams •Integral cable•Adhesive mount •High temperature•IEPE •Minimal mass loading •Ultra low profile •Environmental StressScreening•PC board vibration measurements•Product response •General purpose vibrationwhere space is at a premium•Mechanical shock

3023M20

Miniature Triaxial Accelerometer

Features Benefits Potential Applications

•Ultra small footprint •10mV/g sensitivity•Adhesive mount•5-pin connector•Hermetically sealed•Light weight titanium construction•Removable cable•IEPE •Fits in small places on test article•Minimizes mass loading•Cable is field replaceable •Environmental Stress Screening•Modal analysis•NVH

www.dytran.com
