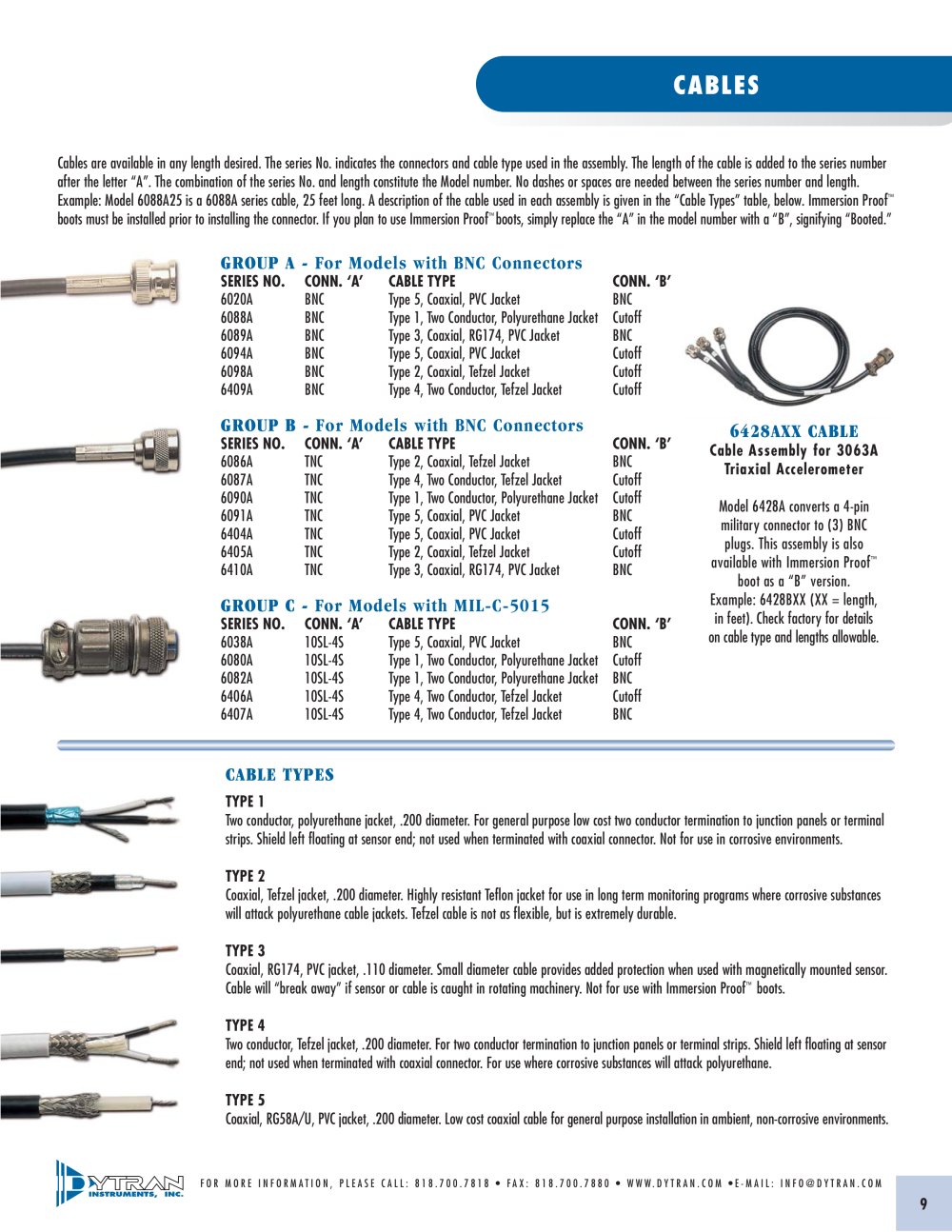

CABLES

Cables are available in any length desired. The series No. indicates the connectors and cable type used in the assembly. The length of the cable is added to the series numberafter the letter “A”. The combination of the series No. and length constitute the Model number. No dashes or spaces are needed between the series number and length.Example: Model 6088A25 is a 6088A series cable, 25 feet long. A description of the cable used in each assembly is given in the “Cable Types” table, below. Immersion Proof
™ boots must be installed prior to installing the connector. If you plan to use Immersion Proof
™ boots, simply replace the “A” in the model number with a “B”, signifying “Booted.”

GROUP A - For Models with BNC Connectors

SERIES NO.CONN. ‘A’CABLE TYPECONN. ‘B’ 6020ABNCType 5, Coaxial, PVC JacketBNC 6088ABNCType 1, Two Conductor, Polyurethane JacketCutoff 6089ABNCType 3, Coaxial, RG174, PVC JacketBNC 6094ABNCType 5, Coaxial, PVC JacketCutoff 6098ABNCType 2, Coaxial, Tefzel JacketCutoff 6409ABNCType 4, Two Conductor, Tefzel JacketCutoff

GROUP B - For Models with BNC Connectors

SERIES NO.CONN. ‘A’CABLE TYPECONN. ‘B’ 6086ATNCType 2, Coaxial, Tefzel JacketBNC 6087ATNCType 4, Two Conductor, Tefzel JacketCutoff 6090ATNCType 1, Two Conductor, Polyurethane JacketCutoff 6091ATNCType 5, Coaxial, PVC JacketBNC 6404ATNCType 5, Coaxial, PVC JacketCutoff 6405ATNCType 2, Coaxial, Tefzel JacketCutoff 6410ATNCType 3, Coaxial, RG174, PVC JacketBNC Cable assembly for 3063ATriaxial Accelerometer Model 6428A converts a 4-pinmilitary connector to (3) BNCplugs. This assembly is alsoavailable with Immersion Proof
™ boot as a “B” version.Example: 6428BXX (XX = length,in feet). Check factory for detailson cable type and lengths allowable.

GROUP C - For Models with MIL-C-5015

SERIES NO.CONN. ‘A’CABLE TYPECONN. ‘B’ 6038A10SL-4SType 5, Coaxial, PVC JacketBNC 6080A10SL-4SType 1, Two Conductor, Polyurethane JacketCutoff 6082A10SL-4SType 1, Two Conductor, Polyurethane JacketBNC 6406A10SL-4SType 4, Two Conductor, Tefzel JacketCutoff 6407A10SL-4SType 4, Two Conductor, Tefzel JacketBNC

CABLE TYPES 6428AXX CABLE

TYPE 1 Two conductor, polyurethane jacket, .200 diameter. For general purpose low cost two conductor termination to junction panels or terminalstrips. Shield left floating at sensor end; not used when terminated with coaxial connector. Not for use in corrosive environments. TYPE 2 Coaxial, Tefzel jacket, .200 diameter. Highly resistant Teflon jacket for use in long term monitoring programs where corrosive substanceswill attack polyurethane cable jackets. Tefzel cable is not as flexible, but is extremely durable. TYPE 3 Coaxial, RG174, PVC jacket, .110 diameter. Small diameter cable provides added protection when used with magnetically mounted sensor.Cable will “break away” if sensor or cable is caught in rotating machinery. Not for use with Immersion Proof
™ boots. TYPE 4 Two conductor, Tefzel jacket, .200 diameter. For two conductor termination to junction panels or terminal strips. Shield left floating at sensorend; not used when terminated with coaxial connector. For use where corrosive substances will attack polyurethane. TYPE 5 Coaxial, RG58A/U, PVC jacket, .200 diameter. Low cost coaxial cable for general purpose installation in ambient, non-corrosive environments.
