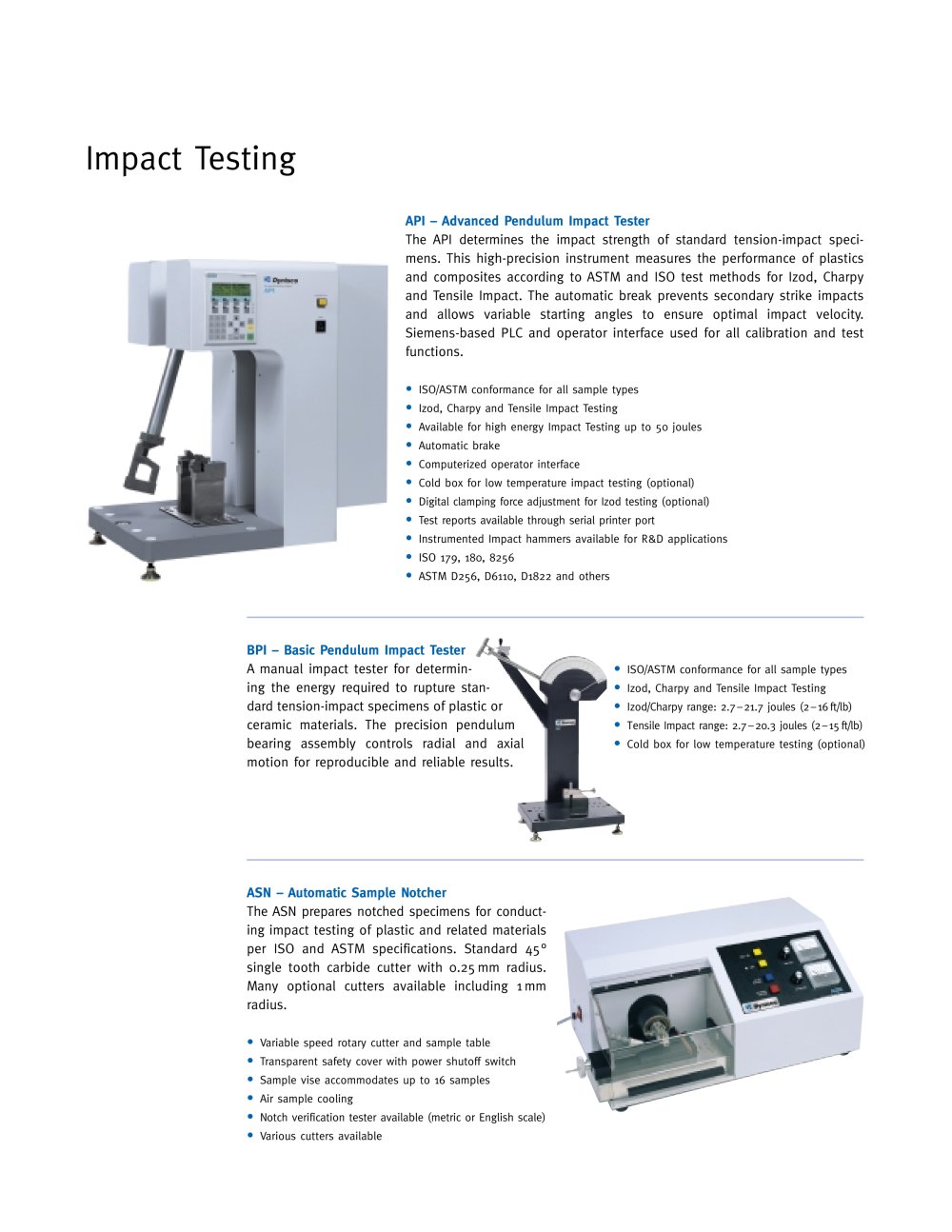

Impact Testing
API – Advanced Pendulum impact tester The API determines the impact strength of standardtension-impact speci-mens. This high-precision instrument measures the performance of plastics
and composites according to ASTM and ISO test methods for Izod, Charpy
and Tensile Impact. The automatic break prevents secondary strike impactsand allows variable starting angles to ensure optimal impact velocity.Siemens-based PLC SUPPLIER and operator interface used for all calibration and test
functions. •
ISO/ASTM conformance for all sample types
•
Izod, Charpy and Tensile Impact Testing
•
Available for high energy Impact Testing up to 50 joules
•
Automatic brake
•
Computerized operator interface
•
Cold box for low temperature impact testing (optional)
•
D igital clamping force adjustment for Izod testing (optional)
•
Test reports available through serial
professional printer port
•
Instrumented Impact hammers available for R&D applications
•
ISO 179, 180, 8256
•
ASTM D256, D6110, D1822 and others
BPI – Basic Pendulum Impact tester Amanual impact professional tester for determin-
ing the energy required to rupture stan-dardtension-impact specimens of plastic orceramicmaterials. The precision pendulumbearing assembly controls radial and axial
motion for reproducible and reliable results. •
ISO/ASTM conformance for all sample types
•
Izod, Charpy and Tensile Impact Testing
•
I zod/Charpy range: 2.7–21.7 joules (2–16ft/lb)
•
T ensile Impact range: 2. 7–2 0.3 joules ( 2–1 5ft/lb)
•
Cold box for low temperature testing (optional)
ASN – Automatic Sample Notcher The ASN prepares notched specimens for conduct-
ing impact testing of plastic and related materialsper ISO and ASTM specifications. Standard 45°single tooth carbide cutter with 0.25mm radius.Many optional cutters available including 1mm
radius.•
Variable speed rotary cutter and sample table
•
Transparent safety cover with power shutoff switch
•
Sample vise accommodates up to 16 samples
•
Air sample cooling
•
Notch verification tester available (metric or English scale)
•
Various cutters available
