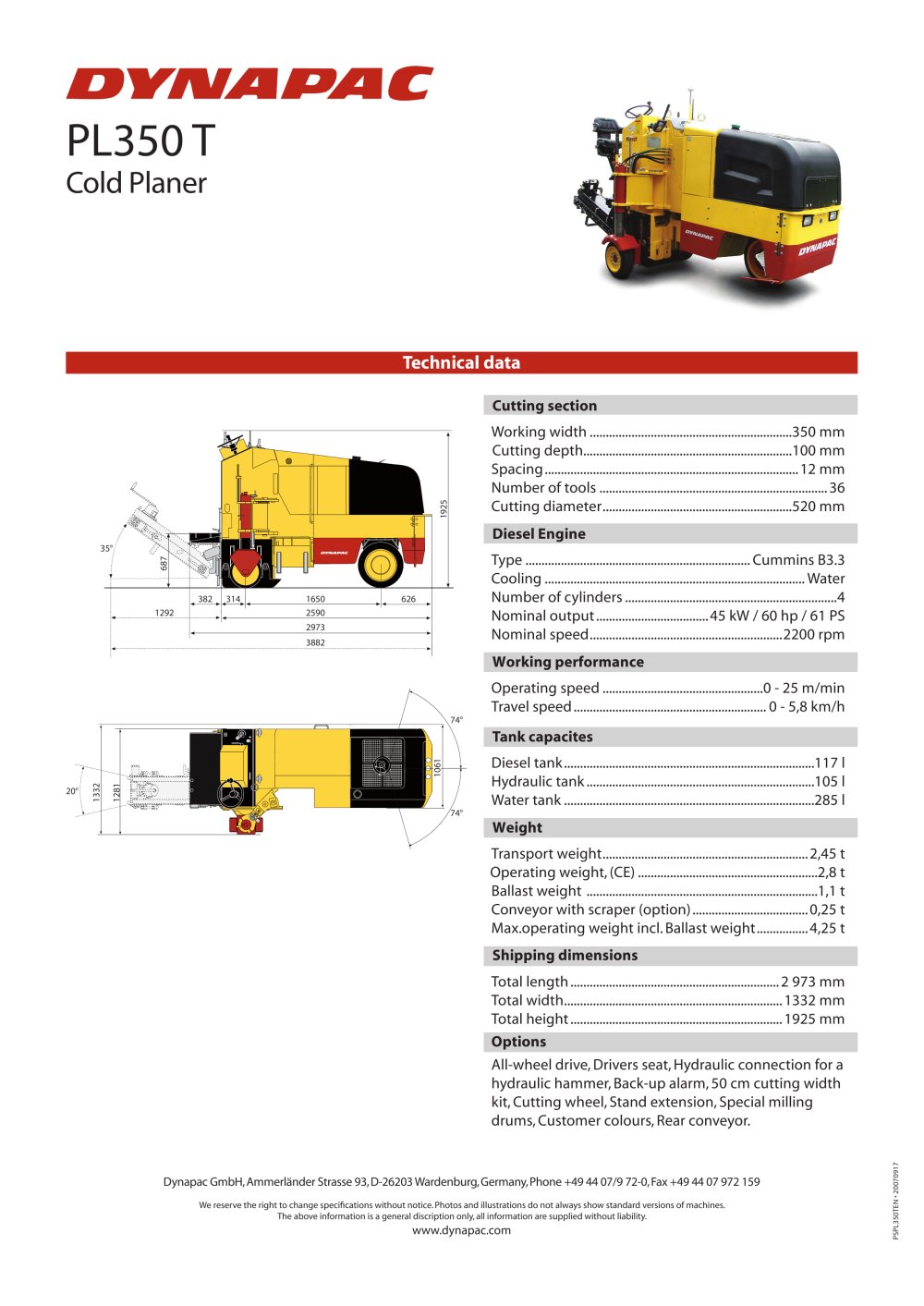

| PL350T Cold Planer | ||||||||||||
| Technical data | ||||||||||||
| Cutting section Working width...............................................................350 mm Cutting depth.................................................................100 mm Spacing...............................................................................12 mm Number of tools.......................................................................36 Cutting diameter...........................................................520 mm Diesel Engine Type......................................................................Cummins B3.3 Cooling.................................................................................Water Number of cylinders..................................................................4 Nominal output...................................45 kW / 60 hp / 61 PS Nominal speed ............................................................2200 rpm Working performance Operating speed..................................................0 - 25 m/min Travel speed............................................................0 - 5,8 km/h Tank capacites Diesel tank..............................................................................117 l Hydraulic tank.......................................................................105 l Water tank..............................................................................285 l Weight Transport weight................................................................2,45 t Operating weight, (CE)........................................................2,8 t Ballast weight........................................................................1,1 t Conveyor with scraper (option) ....................................0,25 t Max.operating weight incl. Ballast weight................4,25 t Shipping dimensions Total length.................................................................2 973 mm Total width....................................................................1332 mm Total height..................................................................1925 mm Options All-wheel drive, Drivers seat, Hydraulic connection for a hydraulic hammer, Back-up alarm, 50 cm cutting width kit, Cutting wheel, Stand extension, Special milling drums, Customer colours, Rear conveyor. | ||||||||||||
| 20' | ||||||||||||
| Dynapac GmbH, Ammerlander Strasse 93, D-26203 Wardenburg, Germany, Phone +49 44 07/9 72-0, Fax +49 44 07 972 159 We reserve the right to change specifications without notice. Photos and illustrations do not always show standard versions of machines. The above information is a general discription only, all information are supplied without liability. www.dynapac.com | ||||||||||||
