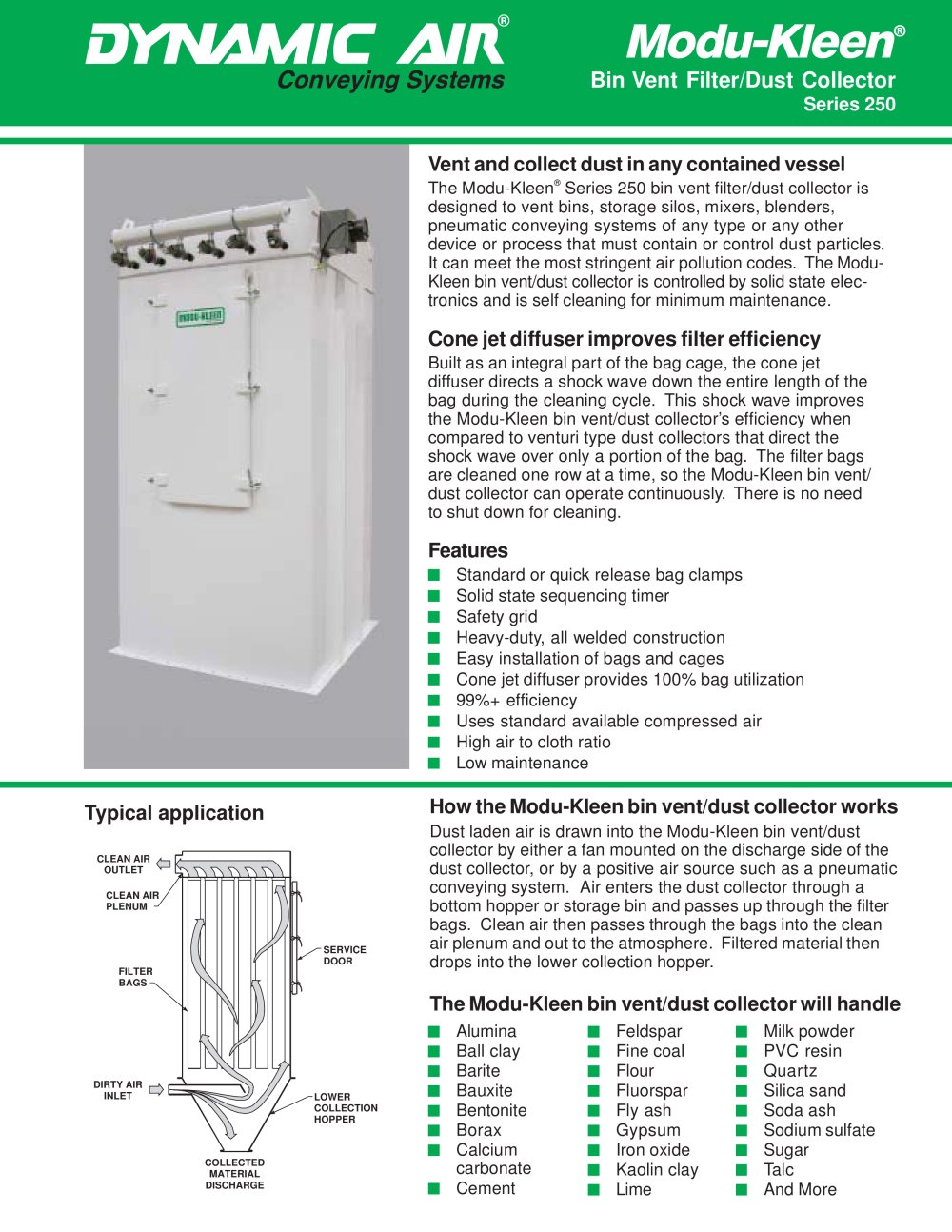

Series 250

Vent and collect dust in any contained vessel

The Modu-Kleen® Series 250 bin vent filter/dust collector is designed to vent bins, storage silos, mixers, blenders, pneumatic conveying systems of any type or any other device or process that must contain or control dust particles. It can meet the most stringent air pollution codes. The Modu-Kleen bin vent/dust collector is controlled by solid state electronics and is self cleaning for minimum maintenance.

Cone jet diffuser improves filter efficiency

Built as an integral part of the bag cage, the cone jet diffuser directs a shock wave down the entire length of the bag during the cleaning cycle. This shock wave improves the Modu-Kleen bin vent/dust collector's efficiency when compared to venturi type dust collectors that direct the shock wave over only a portion of the bag. The filter bags are cleaned one row at a time, so the Modu-Kleen bin vent/ dust collector can operate continuously. There is no need to shut down for cleaning.

Features

Standard or quick release bag clamps Solid state sequencing timer Safety grid

Heavy-duty, all welded construction Easy installation of bags and cages Cone jet diffuser provides 100% bag utilization 99%+ efficiency

Uses standard available compressed air High air to cloth ratio Low maintenance

Typical application

How the Modu-Kleen bin vent/dust collector works

Dust laden air is drawn into the Modu-Kleen bin vent/dust collector by either a fan mounted on the discharge side of the dust collector, or by a positive air source such as a pneumatic conveying system. Air enters the dust collector through a bottom hopper or storage bin and passes up through the filter bags. Clean air then passes through the bags into the clean air plenum and out to the atmosphere. Filtered material then drops into the lower collection hopper.

The Modu-Kleen bin vent/dust collector will handle

CLEAN AIR Ç OUTLET

CLEAN AIR

PLENUM

SERVICE DOOR

FILTER BAGS

DIRTY AIR

INLET

LOWER COLLECTION HOPPER


■	Alumina	■ Feldspar		Milk powder
	Ball clay	■ Fine coal		PVC resin
■	Barite	■ Flour	■	Quartz
■	Bauxite	■ Fluorspar	■	Silica sand
	Bentonite	■ Fly ash	■	Soda ash
	Borax	■ Gypsum	■	Sodium sulfate
■	Calcium	■ Iron oxide		Sugar
	carbonate	■ Kaolin clay		Talc
■	Cement	■ Lime		And More

COLLECTED MATERIAL DISCHARGE
