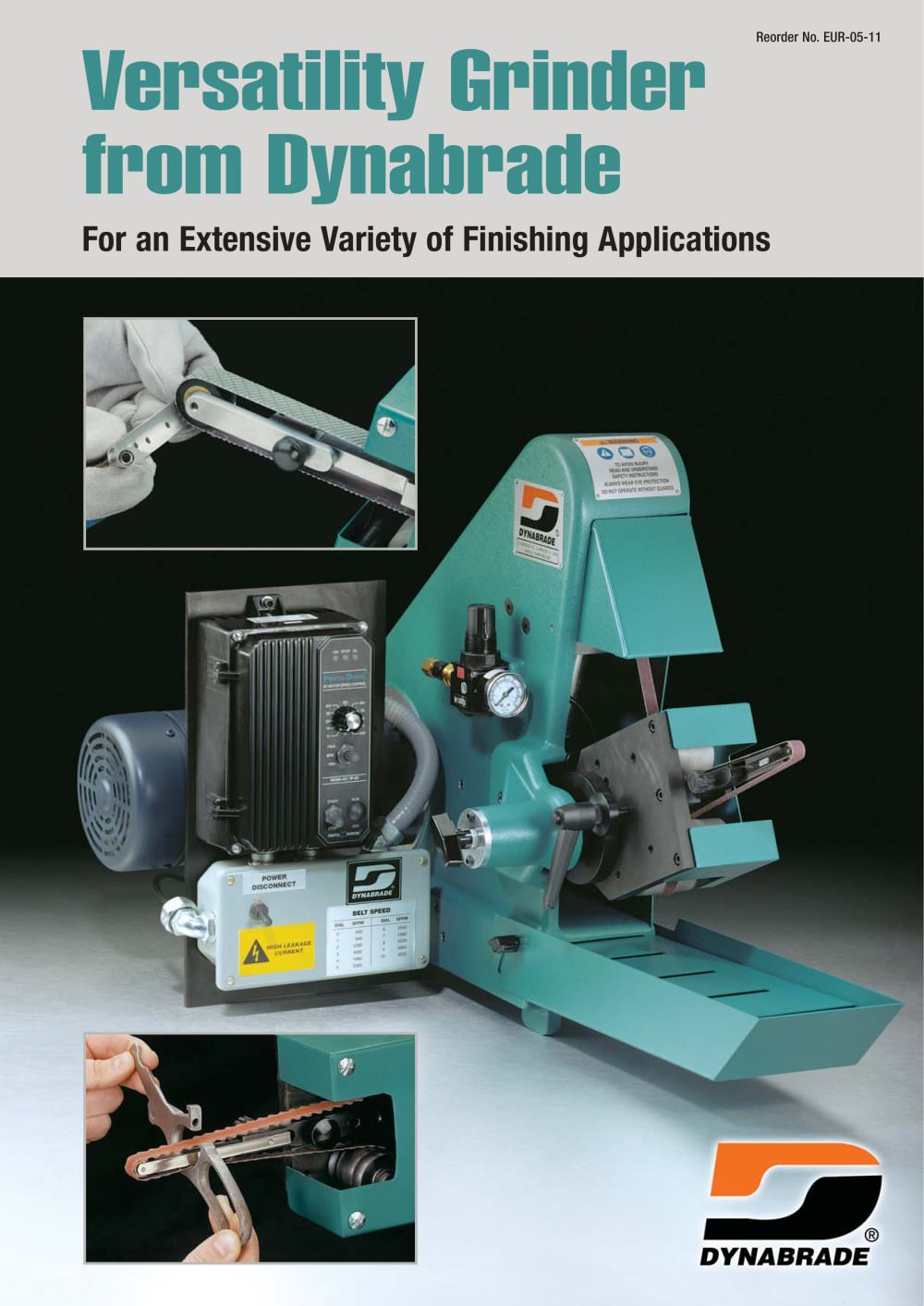

Versatility Grinder from Dynabrade For an Extensive Variety of Finishing Applications Reorder No. EUR-05-11
Open the catalog to page 1Dynabrade’s NEW Versatility Grinder For use with Castings & Forgings, Turbine Blades, Medical Implants & Investment Castings and more... Contact Arms with large-diameter wheels are superb for finishing of channel areas. 67209 Contact Arm Contact Arm with platen pad and scalloped-edged abrasive belt allows final finishing of radiused areas with no gouging. Versatility Grinder accepts Mini-Contact Arms for finishing of hard-to-reach areas. Contact Arm is fitted with 3M™ Trizact™ CF Abrasive Belt for precise, repeatable finish on workpiece. 67233 Contact Arm 67212 Contact Arm 67220 Contact Arm
Open the catalog to page 2Adjustable air regulator for consistent tensioning of abrasive belt. 1 HP (746 W) variable speed motor with both forward and reverse operation. Compact, efficient housing design. “Easy access” belt guard for quick, simple belt changes. NEW linear belt tracking adjustment works with conventional tracking system for superior abrasive belt control. Optional 64932 Vacuum Scoop Assembly attaches to “thru-housing” vacuum port, for efficient collection of sanding debris. Scoop adjusts a full 90 degrees. Pivot mount assembly adjusts to any angle for operator comfort. Model Motor Abrasive Belt Size...
Open the catalog to page 3DYNABRADE EUROPE S.` a r.l. Zone Artisanale • L-5485 Wormeldange—Haut • Luxembourg Telephone: +352 768 494 1 • Fax: +352 768 495 ©DYNABRADE, INC. 2005 www.dynabrade.com 5/05 PRINTED IN USA Contact our Luxembourg Office for a Free Demonstration! Versatility Grinder Optional Contact Arms The widest variety of Contact Arms. Customized arms also available by request. *Also accepts 11026 Hard/Cork and 11027 Thin Platen. MINI-ARM ASSEMBLIES Applications Belt Size (W x L) Contact Wheel Assembly (D x W) 67226, 67227 Access tight areas. 67226: 1/2" x 72" 11049: 3/16" x 3/8" (5mm x 10mm), (13mm x...
