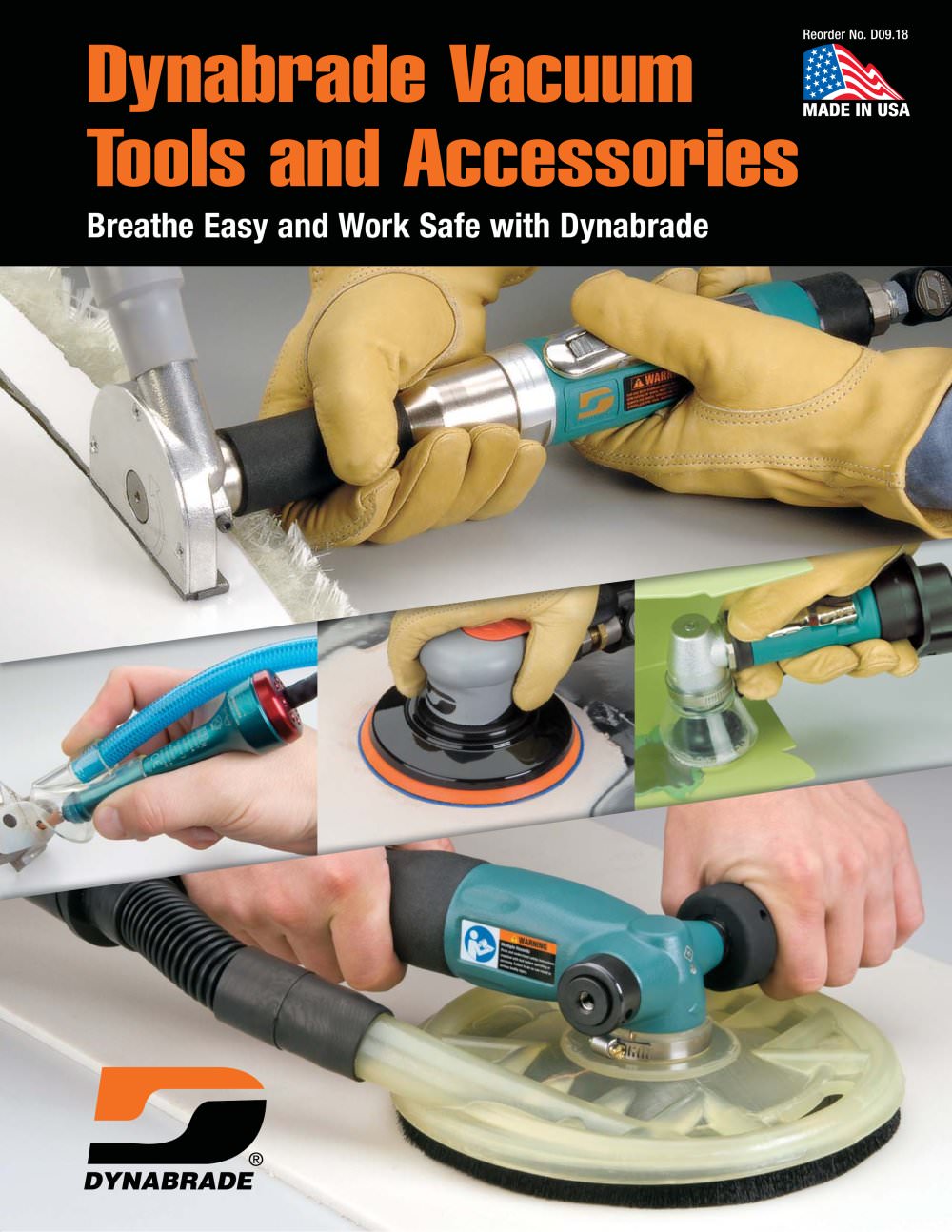

Reorder No. D09.18 Dynabrade Vacuum Tools and Accessories Breathe Easy and Work Safe with Dynabrade

Open the catalog to page 1

Dynabrade’s complete line of Vacuum Tools and Accessories efficiently capture dust, debris and contaminants, ensuring cleaner, safer workplace! Dynabrade Vacuum Tools...

Open the catalog to page 2

Discover The Dynabrade Difference! Breathe Easy & Work Safe! Product Index on Inside Back Cover

Open the catalog to page 3

4 Setting the Standard for Random Orbital Supremacy! • The cornerstone of the “D3” Series, Dynorbital® Supreme now sports a distinctive NEW look, signifying many innovations and improvements! • “D3” advancements include refined ergonomic design, increased vacuum capabilities, aggressive 3/8" (10 mm) orbit and more. • When operating on work surface, tool maintains highest RPM in the industry! Dynorbital® Supreme Air-Powered Random Orbital Sander Model 56819 Model 56818 Model 56815 Portable Dust Collection System (Optional - See Page 48) Self-Generated Vacuum • Includes low profile, premium...

Open the catalog to page 4

5 The BEST Keeps Getting Better – Dynorbital® Supreme Now Offers “D3” Innovations! Dynorbital® Supreme Air-Powered Random Orbital Sander NEW! Refined Ergonomic Tool Grip Allows more comfortable grip and feel, reducing operator fatigue and increasing efficiency. NEW! Low-Vibration Design Tool grip fully covers tool housing, minimizing vibration transfer to operator. NEW! ONE-HAND Speed Control New Speed Control dial allows “thumb control” regulating of tool speed. Comfort Platform (Patent Pending) Provides additional hand and wrist support, enhancing operator comfort. Also offers protection...

Open the catalog to page 5

6 Supreme Power Arrives in Lightweight Package! • The NEW tool in our “D3” Series is the ultimate combination of Supreme power and lightweight comfort! • “D3” innovations include all-steel components, compact Ergo Grip, outstanding vacuum capabilities and more. • Steel cylinder and end plates stay perfectly aligned, maximizing motor performance! Dynorbital® Silver Supreme Air-Powered Random Orbital Sander Model 69024 Model 69023 Model 69020 Portable Dust Collection System (Optional - See Page 48) Self-Generated Vacuum • Includes low profile, premium urethane weight-mated sanding pad. •...

Open the catalog to page 6

8 Lightweight Sander with “D3” Advantages • Dynabrade’s lightest Random Orbital Sander is ideal for vertical and contoured applications, and for operators with smaller hands. • “D3” improvements include distinctive NEW look, ergonomic tool grip for added comfort, increased vacuum efficiency and new muffler design. • For light-to-medium duty customers who demand the Dynabrade Difference! Dynorbital-Spirit® Air-Powered Random Orbital Sander Model 59024 Model 59023 Model 59020 Portable Dust Collection System (Optional - See Page 48) Self-Generated Vacuum • Includes low profile, premium...

Open the catalog to page 8

10 Small Tool with Big Power & Vacuum Capability • 3" diameter HiVac Dynorbital-Spirit® efficiently vacuums through 3-hole sanding pad and unique shroud design. • Sanding pad is weight-mated to tool, ensuring low vibration and smooth finishes. • Tool weight of 1.3 pounds (0.6 kg) minimizes operator fatigue. • Innovative “V-Seal” protects double row balancer bearing from sanding residue for longer tool life. • Unique “Top Hat” seal protects front motor bearing from contaminants while maintaining bearing lubrication. Self-Generated Vacuum • Vacuums directly through the tool’s exhaust, with 1"...

Open the catalog to page 10

11 Includes Unique Sanding Pad for Mesh-Style Abrasive Discs Mesh Abrasive Systems For Use with Random Orbital Sanders 56320 Model 58054 56144 59116 54288 59028 58411 54288 56322 54288 56321 Model Orbit Dia. Motor Motor Max. Air Flow Spindle Air Pressure Hose I.D. Size Air Inlet Weight Length Height Number Inch (mm) hp (W) RPM SCFM (LPM) Thread PSIG (Bar) Inch (mm) Thread lb (kg) Inch (mm) Inch (mm) 58054 3/16" (5) .25 (186) 12,000 14 (396) 5/16"-24 90 (6.2) 1/4 (6) 1/4" NPT 1.3 (0.6) 8-1/2 (216) 3-1/2 (89) Tune-Up Kit: No. 96510 Model 58052 3" HiVac Dynorbital-Spirit® Mesh Abrasive System...

Open the catalog to page 11

12 Non-Vacuum Also Available! Pad Diameter 3/16" (5 mm) Orbit 3/8" (10 mm) Orbit Inch (mm) Models Models 5 (127) 58400 58415 6 (152) 58405 58418 8 (203) 58410 – Self-Generated Vacuum • Self-generated vacuum models are ready for connection to optional portable dust collection system (50617 shown). • Vacuum port accepts 1-1/4" diameter hose cuff for increased vacuum flow (no overskirt shroud is included). • Not recommended for use with external or central vacuum system. Pad Diameter 3/16" (5 mm) Orbit 3/8" (10 mm) Orbit Inch (mm) Models Models 5 (127) 58401 58416 6 (152) 58406 58419 8 (203)...

Open the catalog to page 12

13 Air-Powered Models • Powerful .7 hp air motor (2,500 RPM) offers power and efficiency. Model 58485 Central Vacuum • For use with optional “O” style abrasive discs, which allow dust to be drawn up through pad holes. • Vacuum shroud has 1-1/4" outside diameter port, for connection to external or central vacuum system. Model 58480 Non-Vacuum Also Available! • For use with optional non-vacuum abrasive discs. Abrasive disc covers pad holes, for non-vacuum use. Electric Models • Powerful 1.8 hp (1342 W), variable speed (0-3,000 RPM), 120 V (AC) 11 Amp electric motor offers power and...

Open the catalog to page 13

14 Combination Rotary and Random Orbital Sander • 12,000 RPM DynaLocke® is truly “two tools in one,” easily changing from a rotary Disc Sander to Random Orbital Sander with the flip of a switch. • Ideal for metal applications; great on composite materials. Excellent for automotive work, such as paint stripping and blending. Also utilized for leveling glue seams on Corian® and other solid surfaces. • Switch is recessed within tool grip to prevent accidental engaging. DynaLocke® Air-Powered Dual-Action Sander Self-Generated Vacuum • Self-Generated Vacuum models are ready for connection to...

Open the catalog to page 14
