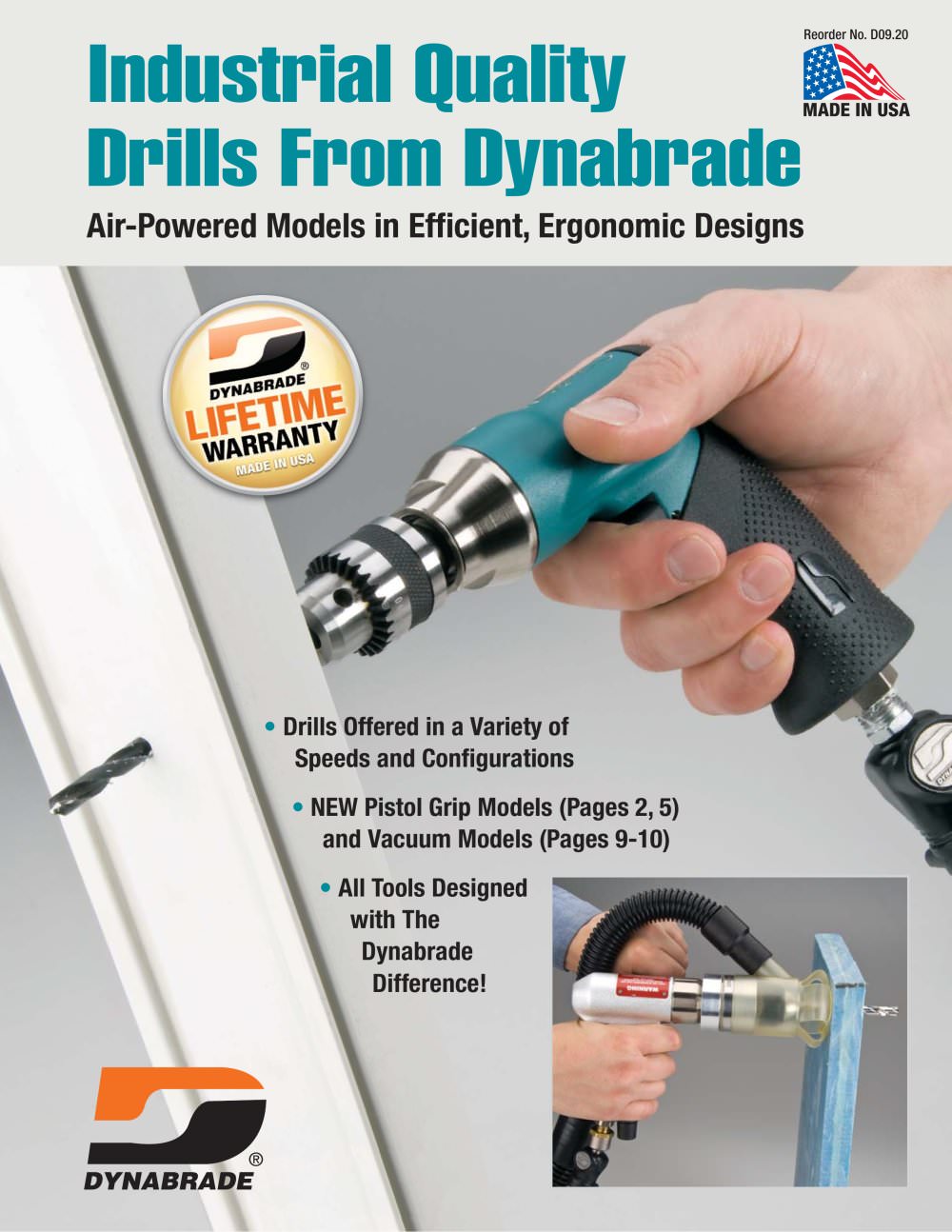

Reorder No. D09.20 Industrial Quality Drills From Dynabrade Air-Powered Models in Efficient, Ergonomic Designs • Drills Offered in a Variety of Speeds and Configurations • NEW Pistol Grip Models (Pages 2, 5) and Vacuum Models (Pages 9-10) • All Tools Designed with The Dynabrade Difference!

Open the catalog to page 1

2 .4 hp Drills Air-Powered Drills in NEW Pistol Grip Design NEW Ergonomic Design for Enhanced Comfort • NEW .4 hp (298 W) Pistol Grip Drill offered in ergonomic Dynabrade design, with comfortable textured tactile grip. • Powerful high-torque air motor is ideal for countless industrial applications. • Finger platform on both sides of tool allows increased stability and comfort. • Models offered in speeds from 500 RPM to 20,000 RPM. • All models available with 1/4" Dynachuck or Jacobs® Chuck; plus two models with 3/8" Jacobs® Chuck. Pistol Grip Models, 1/4" Chuck Model Motor Motor Chuck Sound...

Open the catalog to page 2

.4 hp Drills Angle Head & Right Angle Models Industrial-Quality Drills in a Variety of Configurations 3 Drill Bit Sold Separately Accessory Sold Separately Angle Height Model Motor Motor Sound Maximum Air Flow Hose I.D. Size Air Inlet Spindle Weight Length Height Number hp (W) RPM Level SCFM (LPM) Inch (mm) Thread Thread Pound (kg) Inch (mm) Inch (mm) 53430 .4 (298) 3,200 83 dB(A) 23 (650) 1/4 (6) 1/4" NPT 1/4"-28 Female 1.9 (.9) 11-3/8 (289) 1-5/8 (40) 53435 .4 (298) 3,200 80 dB(A) 21 (595) 1/4 (6) 1/4" NPT 1/4"-28 Female 1.9 (.9) 7 (178) 2-1/4 (57) 53455 .4 (298) 950 82 dB(A) 23 (663) 1/4...

Open the catalog to page 3

.7 hp Drills Air-Powered Drills in Pistol Grip Design Industrial-Quality Drills in a Variety of Configurations Pistol Grip, .7 hp, Rear Exhaust • Each model includes 3/8" drill chuck and key. • High-torque air motor; slow-speed startup trigger. • Rubber insulated grip for operator comfort. Model 53091 950 RPM Model 53060 3,400 RPM Model 53095 4,500 RPM Model 53096 20,000 RPM 5 Pistol Grip, .7 hp, Rear Exhaust NEW! Additional Speeds and Chucks! • High-torque air motor; slow-speed startup trigger. • Rubber insulated grip for operator comfort. Model 53092 500 RPM, 1/2" Keyed Chuck Model 53090...

Open the catalog to page 5

8 Accessory Sold Separately Model Motor Motor Sound Maximum Air Flow Hose I.D. Size Air Inlet Spindle Weight Length Height Number hp (W) RPM Level SCFM (LPM) Inch (mm) Thread Thread Pound (kg) Inch (mm) Inch (mm) 53080 .7 (522) 3,400 82 dB(A) 46 (1,303) 3/8 (10) 1/4" NPT 1/2"-20 Male 4.9 (2.2) 10-3/4 (274) 7-3/4 (196) 53081 .7 (522) 4,500 82 dB(A) 46 (1,303) 3/8 (10) 1/4" NPT 1/2"-20 Male 4.9 (2.2) 10-3/4 (274) 7-3/4 (196) 53143 1 (744) 850 83 dB(A) 35 (991) 3/8 (10) 3/8" NPT 1/4"-20 Male 5.5 (2.5) 13-1/8 (333) 5-1/8 (130) Tune-Up Kits: 53080, 53081 - No. 96234; 53143 - No. 96532 •...

Open the catalog to page 8

9 .4 hp Vacuum Drills For Connection to Central Vacuum System Unique Vacuum Shroud Captures Contaminants • NEW .4 hp (298 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris. • Pistol Grip design includes slow-speed startup trigger. • High torque air motor; comfortable insulated tool grip. • Conductive hoses and cuffs shield operator from electrostatic discharge (ESD). • Each model includes 1/4" Dynachuck and key. Pistol Grip Models Model 52903 500 RPM Model 52904 1,000 RPM Model 52905 2,400 RPM Model 52906 3,600 RPM...

Open the catalog to page 9

10 .7 hp Vacuum Drills For Connection to Central Vacuum System Unique Vacuum Shroud Captures Debris • NEW .7 hp (522 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris. • Pistol Grip design includes slow-speed startup trigger. • High torque air motor; comfortable insulated tool grip. • Conductive hoses and cuffs shield operator from electrostatic discharge (ESD). • Each model includes drill chuck and key. Pistol Grip Models Model 53105 950 RPM, 3/8" Drill Chuck Model 53106 950 RPM, 1/2" Drill Chuck Model 53103 3,400...

Open the catalog to page 10

11 Portable Vacuum Systems Ideal for Use with Dynabrade Vacuum Tools For Use on Non-Ferrous Materials Only Electric Portable Vacuum System Models 61300-61311 Connect and Operate Two Tools Simultaneously • Choose from 9.9 (36 liters) or 17 gallon (64 liters) models. Dry vacuum only. • Two-tool setup: two pneumatic outlets and two vacuum hose ports. • Heavy duty stainless steel drum. Drum can be removed for special applications or locations. HEPA filtration (0.3 micron) with felt insert and paper bag. • Variable vacuum control; Electronic thermal protection device prevents heat overload of...

Open the catalog to page 11

DYNABRADE, INC. • DYNABRADE INTERNATIONAL 8989 Sheridan Drive • Clarence, New York 14031-1419 Phone: (716) 631-0100 • US Fax: 716-631-2073 • Int’l Fax: 716-631-2524 US Consumers Call Toll-Free: 1-800-828-7333 Canadian Consumers Call Toll-Free: 1-800-344-1488 DYNABRADE EUROPE S.à r. l. Zone Artisanale Op Tomm 6 • L-5485 Wormeldange—Haut, Luxembourg Telephone: +352 768 494 1 • Fax: +352 768 495 DYNABRADE DO BRASIL Rua Oneda, 632 • Sao Bernardo do Campo • SP - CEP 09895-280 Telephone 55-11-4390-0133 • Fax 55-11-4399-1067 DYNABRADE INDIA ABRASIVE POWER TOOLS Pvt Ltd. EL-54, TTC Industrial Area,...
