Dynabrade Vacuum cCt-Off Wheel Tools

Dynabrade Vacuum cCt-Off Wheel Tools
6Pages

Catalog excerpts

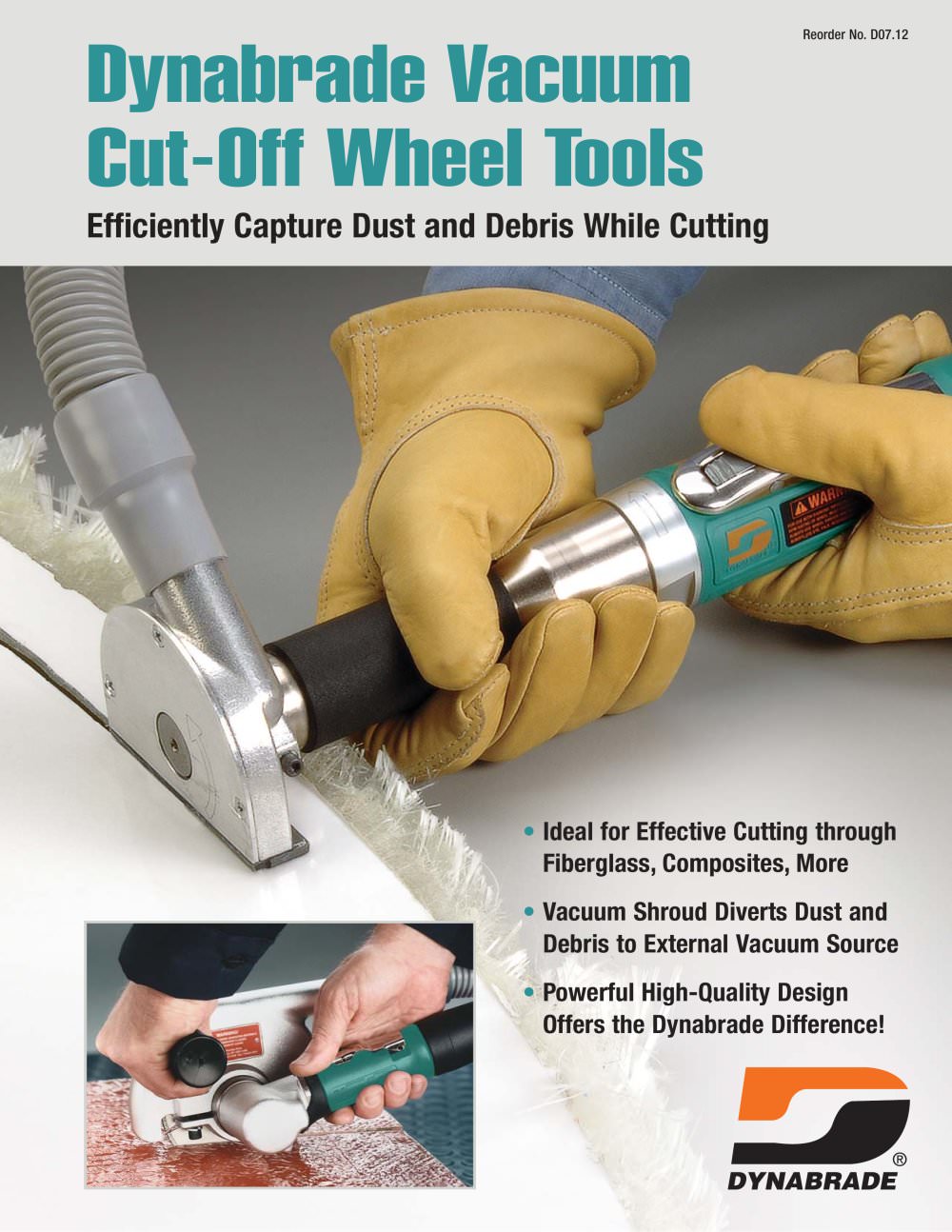

Dynabrade Vacuum cCt-Off Wheel Tools - 1

Reorder No. D07.12 Dynabrade Vacuum Cut-Off Wheel Tools Efficiently Capture Dust and Debris While Cutting • Ideal for Effective Cutting through Fiberglass, Composites, More • Vacuum Shroud Diverts Dust and Debris to External Vacuum Source • Powerful High-Quality Design Offers the Dynabrade Difference!

Open the catalog to page 1

Dynabrade Vacuum cCt-Off Wheel Tools - 2

3" (76 mm) Diameter Model 52538 .4 hp, 12,000 RPM, Right Angle, Rear Exhaust • For use with optional 3" (76 mm) diameter Diamond Cut-Off Wheels. • Adjustable wheel guard has vacuum port, 1" (25 mm) outside diameter, that diverts airborne dust and debris to optional vacuum source. • Non-marring composite base is removable to utilize maximum blade depth of 11/16" (17 mm). Optional 52646 composite base is available for gel coat notching. • “Dual wick” lubrication system saturates gears with oil for increased performance, extended life and reduced downtime. • Safety-lock lever is included. 2...

Open the catalog to page 2

Dynabrade Vacuum cCt-Off Wheel Tools - 3

3 4-1/2" (114 mm) Diameter Model 52436 .7 hp, 20,000 RPM, 7° Offset, Rear Exhaust • For use with optional 94912 Diamond Cut-Off Wheel, 4-1/2" (114 mm) outside diameter, slotted for cooler running and longer life. • Adjustable wheel guard has vacuum port, 1" (25 mm) outside diameter, that diverts airborne dust and debris to optional vacuum source. • Blade depth exposure of 1-3/16" (30 mm). • Tool includes cushioned, soft-grip side handle. • Handle is offset 7° for greater operator comfort and control. • Safety-lock lever is included. Vacuum Cut-Off Wheel Tools Important: Speed of tool must...

Open the catalog to page 3

Dynabrade Vacuum cCt-Off Wheel Tools - 4

Diamond Cut-Off Wheels Mandrel Type • For use on Fiberglass and Composites 4 3" (76 mm) Diameter Model 52417 .7 hp, 20,000 RPM, Straight-Line, Rear Exhaust Unique Shroud and Flange Design Adds New Versatility! • Accepts optional 3" (76 mm) diameter Diamond Cut-Off Wheels with 3/8" (10 mm) diameter mandrel. • Unique cutaway shroud design allows 1" (25 mm) wheel depth exposure. • Non-marring plastic flange protects work surface while cutting. • Includes 94300 Dynaswivel® Air Line Connector, enhancing operator comfort and control. • Adjustable cutting height, from flush to 5/8" (16 mm) above...

Open the catalog to page 4

Dynabrade Vacuum cCt-Off Wheel Tools - 5

5 Electric Portable Vacuum Systems Models 61300-61309 • Choose from 9.9 (36 liters) or 17 gallon (64 liters) models. Dry vacuum only. • Two-tool setup: two pneumatic outlets and two vacuum hose ports. • Heavy-duty stainless steel drum. Drum can be removed for special applications or locations. • Electric configurations available for use outside USA – see chart below. • HEPA filtration (0.3 micron) with felt insert and paper bag. • Variable vacuum control; max flow internal pneumatic workings. • Electronic thermal protection device prevents heat overload of motor. • Includes disposable paper...

Open the catalog to page 5

Dynabrade Vacuum cCt-Off Wheel Tools - 6

Diamond Cut-Off Wheels For use on Fiberglass and Composites Continuous Rim Side Spoked Gulleted/Slotted DYNABRADE, INC. • DYNABRADE INTERNATIONAL 8989 Sheridan Drive • Clarence, New York 14031-1490 Phone: (716) 631-0100 • US Fax: 716-631-2073 • Int’l Fax: 716-631-2524 US Consumers Call Toll-Free: 1-800-828-7333 Canadian Consumers Call Toll-Free: 1-800-344-1488 DYNABRADE EUROPE S.à r. l. Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg Telephone: +352 768 494 1 • Fax: +352 768 495 DYNABRADE DO BRASIL Rua Oneda, 632 • Sao Bernardo do Campo • SP - CEP 09895-280 Telephone 55-11-4390-0133 •...

Open the catalog to page 6
