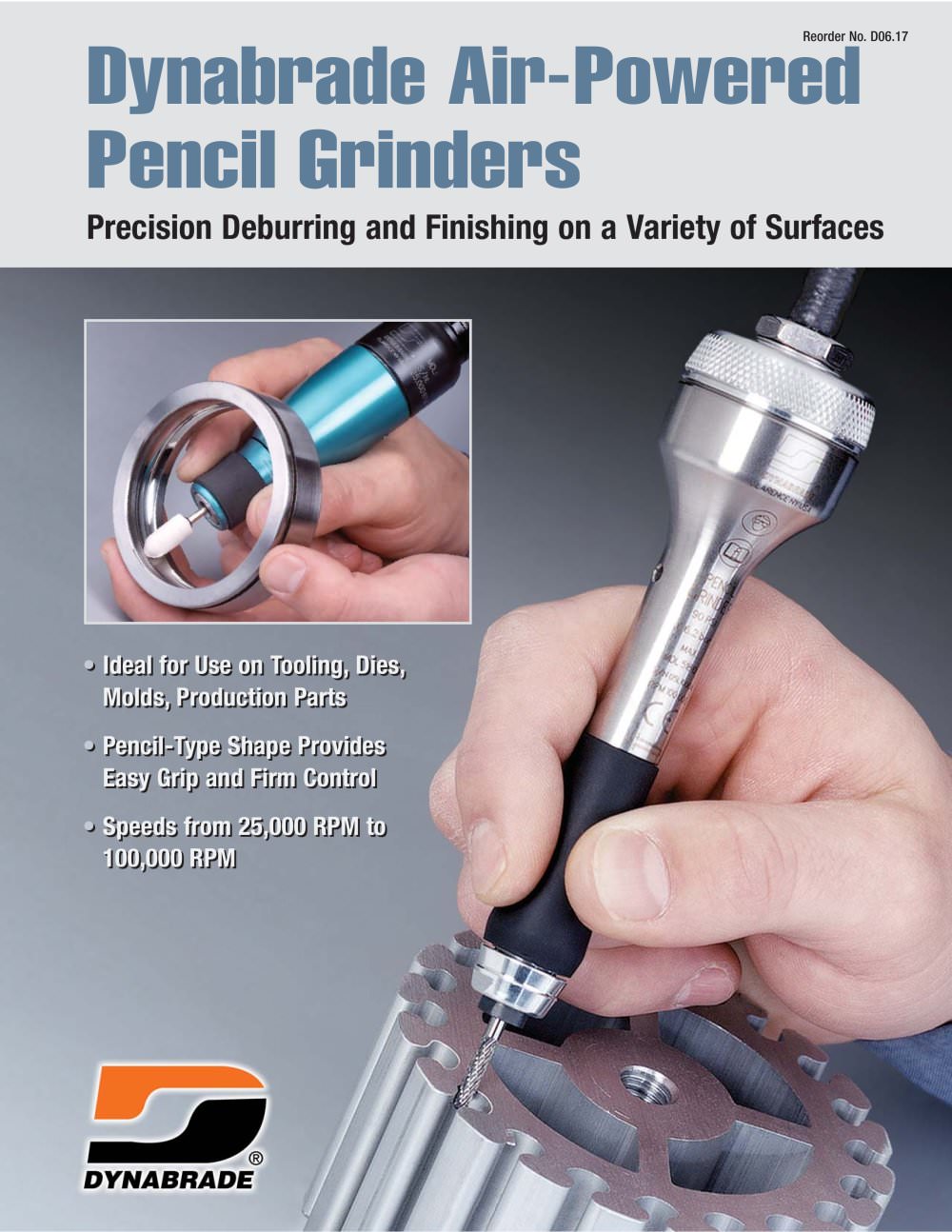

Dynabrade Air-Powered Pencil Grinders - 1

Reorder No. D06.17 Dynabrade Air-Powered Pencil Grinders Precision Deburring and Finishing on a Variety of Surfaces • Ideal for Use on Tooling, Dies, Molds, Production Parts • Pencil-Type Shape Provides Easy Grip and Firm Control • Speeds from 25,000 RPM to 100,000 RPM

Open the catalog to page 1

Dynabrade Air-Powered Pencil Grinders - 2

Rotary Vane Air Motor Models 25,000 RPM Model 52861 Model 52862 1/8" Collet 3 mm Collet Model 52863 Model 52864 1/4" Collet 6 mm Collet Model Collet Motor Maximum Air Flow Air Pressure Hose I.D. Size Air Inlet Weight Length Height Number Size RPM Exhaust CFM/SCFM (LPM) PSIG (Bar) Inch (mm) Thread Pound (kg) Inch (mm) Inch (mm) 52861 1/8" 25,000 Rear 1/20 (566) 90 (6.2) 1/4 (6) 1/4" NPT 5.66 (144) 1.5 (39) 1-1/2 (39) 52862 3 mm 25,000 Rear 1/20 (566) 90 (6.2) 1/4 (6) 1/4" NPT 5.66 (144) 1.5 (39) 1-1/2 (39) 52863 1/4" 25,000 Rear 1/20 (566) 90 (6.2) 1/4 (6) 1/4" NPT 5.66 (144) 1.5 (39) 1-1/2...

Open the catalog to page 2

Dynabrade Air-Powered Pencil Grinders - 3

35,000 RPM Turbine-Driven Air Motor Models 3 Model 51706 Model 51707 1/8" Collet 3 mm Collet Model 51756 Model 51708 1/8" Collet, Extension Model 3/32" Collet 50,000 RPM Model 51703 Model 51704 1/8" Collet 3 mm Collet Model 51730 Model 51732 1/8" Collet, Ceramic Bearings 3 mm Collet, Ceramic Bearings Model 51753 Model 51705 1/8" Collet, Extension Model 3/32" Collet 60,000 RPM Model 51700 Model 51701 1/8" Collet 3 mm Collet Model 51731 Model 51733 1/8" Collet, Ceramic Bearings 3 mm Collet, Ceramic Bearings Model 51740 Model 51742 1/8" Collet, Mount Stem 3 mm Collet, Mount Stem Model 51750...

Open the catalog to page 3

Dynabrade Air-Powered Pencil Grinders - 4

Visit our Website for more Tools and Related Accessories www.dynabrade.com ©DYNABRADE, INC., 2006 • PRINTED IN U.S.A. • 7/06 DYNABRADE, INC. 8989 Sheridan Drive • Clarence, New York 14031-1490 • Phone: (716) 631-0100 Fax: 716-631-2073 • US Consumers Call Toll Free: 1-800-828-7333 DYNABRADE INTERNATIONAL 8989 Sheridan Drive • Clarence, New York 14031-1490 • Phone: (716) 631-0100 Fax: 716-631-2524 • Canadian Consumers Call Toll Free: 1-800-344-1488 DYNABRADE EUROPE S.à r. l. Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg Phone: +352 768 494 1 • Fax: +352 768 495 DYNABRADE DO BRASIL Rua...

Open the catalog to page 4
