Untitled

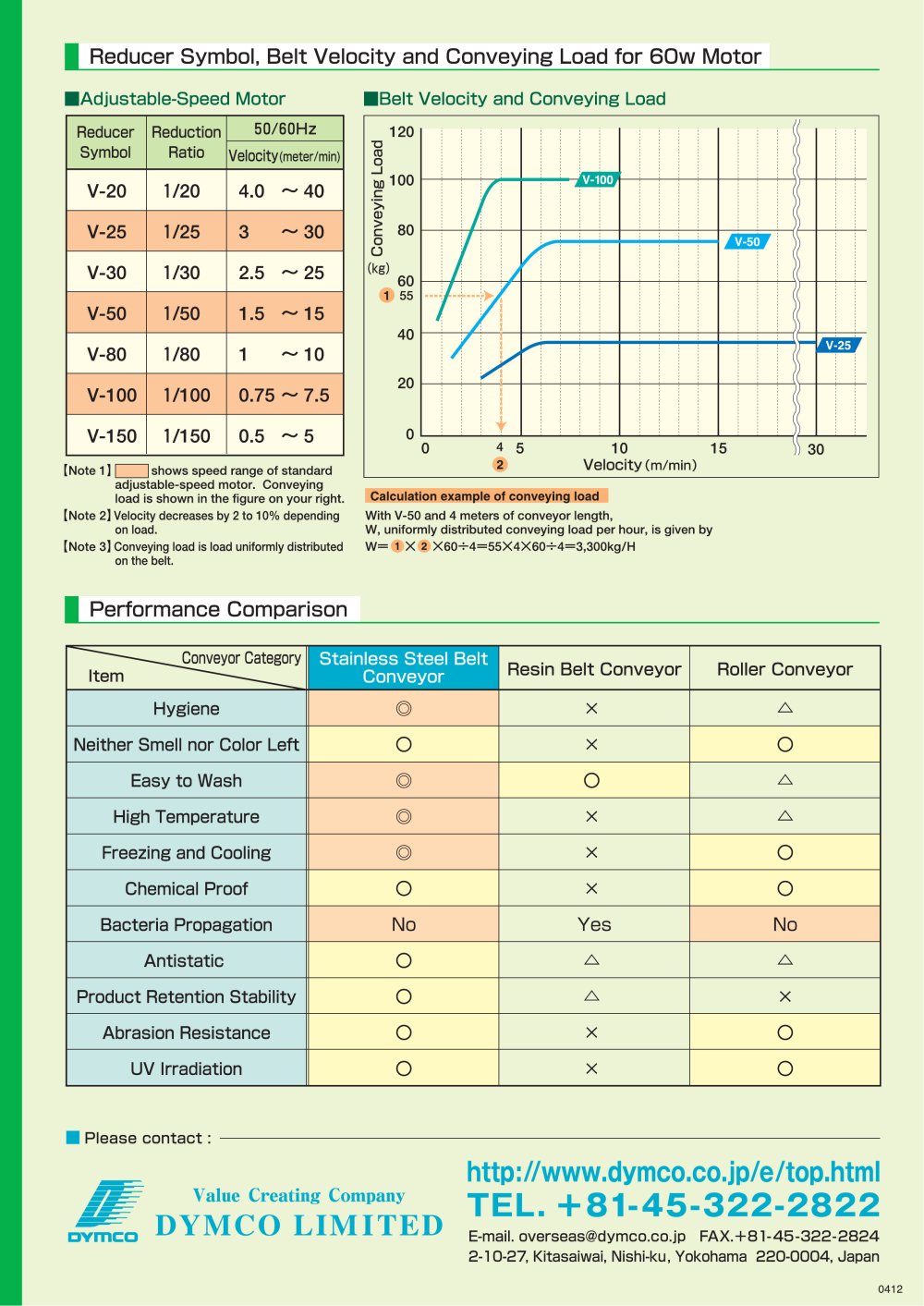

| Reducer Symbol, Belt Velocity and Conveying Load for 60w Motor
lAdjustable-Speed Motor
IBelt Velocity and Conveying Load
Reducer Symbol
Réduction Ratio
50/60HZ
Velocity(meter/min)
V-20
1/20
4.0 — 40
V-25
1/25
3 -30
V-30
1/30
2.5 —25
V-50
1/50
1.5 —15
V-80
1/80
1 —10
V-100
1/100
0.75 — 7.5
V-150
1/150
0.5 -5
120
10 15
Velocity (m/min)
30
[Notel]
I | shows speed range of standard adjustable-speed motor. Conveying load is shown in the figure on your right.
Calculation example of conveying load
[Note 2] Velocity decreases by 2 to 10% depending With V-50 and 4 meters of conveyor length,
on load. W, uniformly distributed conveying load per hour, is given by
[Note 3] Conveying load is load uniformly distributed W= 1 X 2 X60-M=55X4X60-=-4=3,300kg/H on the belt.
| Performance Comparison
' ■"-—-««Conveyor Category Item ^——»^
Stainless Steel Belt Conveyor
Resin Belt Conveyor
Roi 1er Conveyor
Hygiène
©
X
Neither Smell nor Color Left
O
X
O
Easy to Wash
©
O
A
High Température
©
X
A
Freezing and Cooling
©
X
O
Chemical Proof
O
X
O
Bacteria Propagation
No
Yes
No
Antistatic
O
A
A
Product Rétention Stability
O
A.
X
Abrasion Résistance
O
X
O
UV Irradiation
O
X
O
Please contact
http://www.dymco.co.jp/e/top.html DYMfonSFD TEL- +81-45-322-2822
□Ymco 1 iV1L,u LdlUliriW E-mail.overseas@dymco.co.jp FAX.+81-45-322-2824
2-10-27, Kitasaiwai, Nishi-ku, Yokohama 220-0004, Japan
