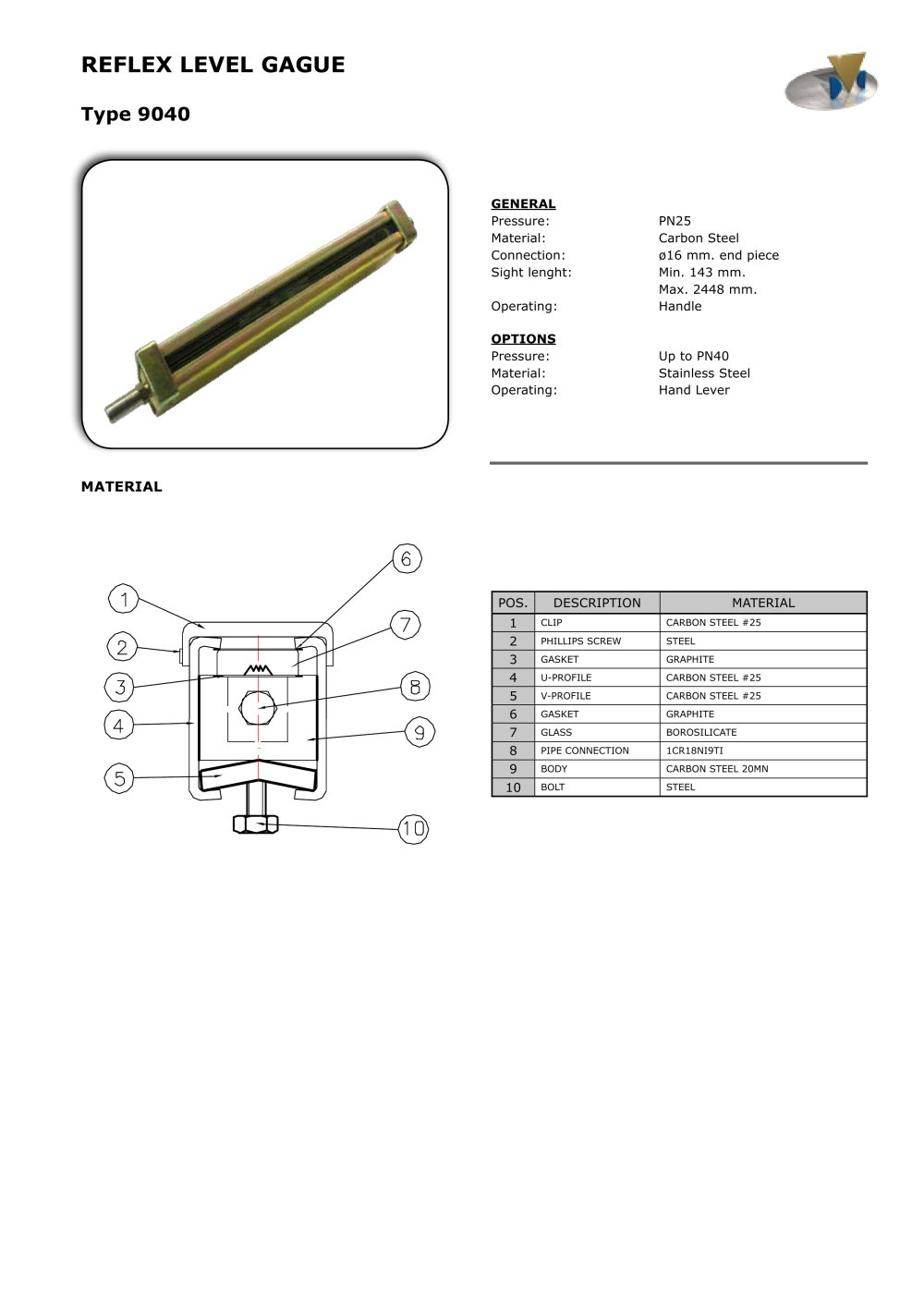

Reflex Level Gague Type 9040 General Pressure: PN25 Material: Carbon Steel Connection: ø16 mm. end piece Sight lenght: Min. 143 mm. Max. 2448 mm. Operating: Handle Options Pressure: Up to PN40 Material: Stainless Steel Operating: Hand Lever Pos. Description Material 1 Clip Carbon Steel #25 2 Phillips Screw Steel 3 Gasket Graphite 4 U-Profile Carbon Steel #25 5 V-Profile Carbon Steel #25 6 Gasket Graphite 7 Glass Borosilicate 8 Pipe Conection 1Cr18Ni9Ti 9 Body Carbon Steel 20mn 10 Bolt steel Material
