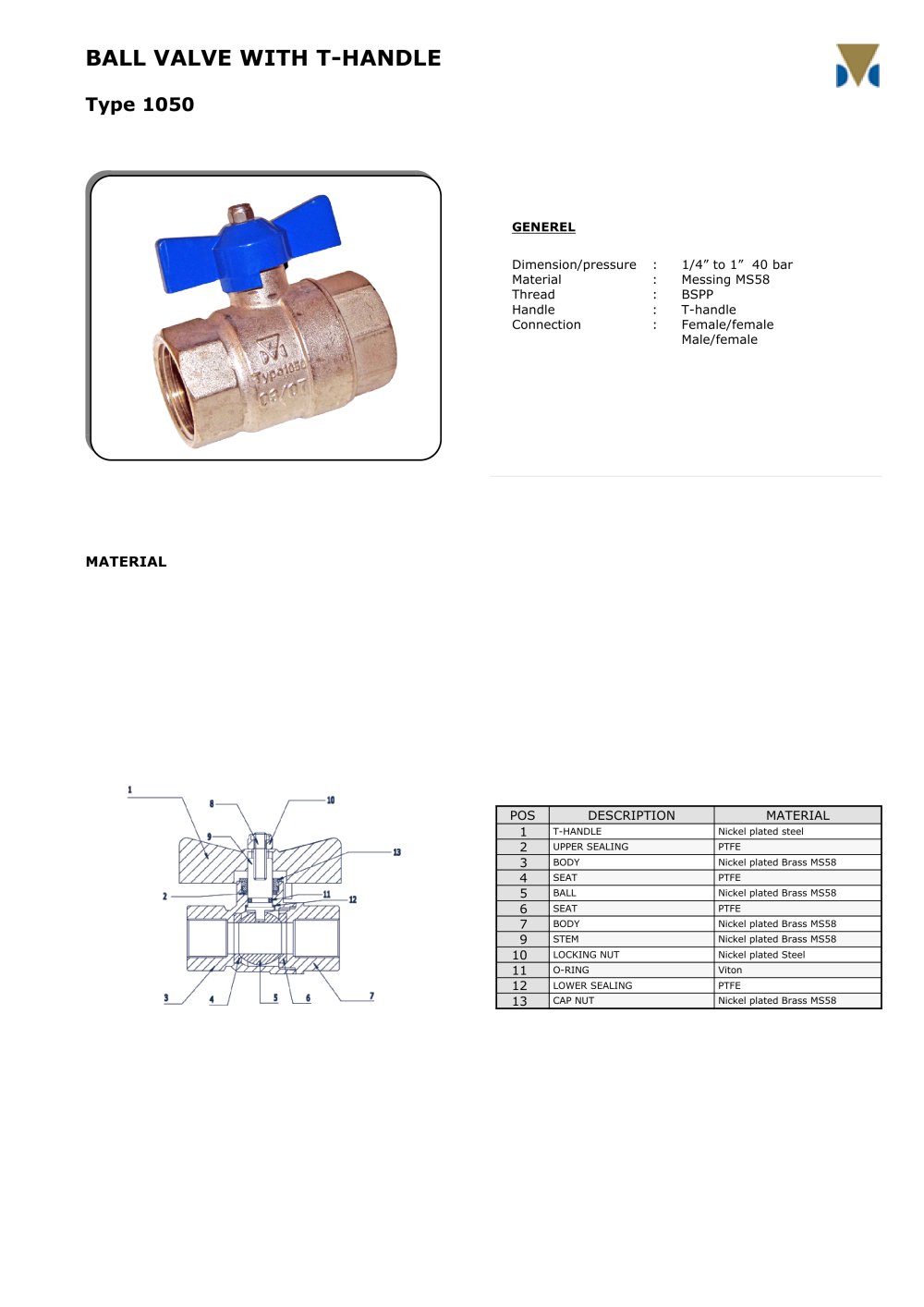

MATERIAL BALL VALVE WITH T-HANDLE Type 1050 GENEREL Dimension/pressure : 1/4” to 1” 40 bar Material : Messing MS58 Thread : BSPP Handle : T-handle Connection : Female/female Male/female 13 CAP NUT Nickel plated Brass MS58 12 LOWER SEALING PTFE 11 O-RING Viton 10 LOCKING NUT Nickel plated Steel 9 STEM Nickel plated Brass MS58 7 BODY Nickel plated Brass MS58 6 SEAT PTFE 5 BALL Nickel plated Brass MS58 4 SEAT PTFE 3 BODY Nickel plated Brass MS58 2 UPPER SEALING PTFE 1 T-HANDLE Nickel plated steel POS DESCRIPTION MATERIAL
