BALL VALVE - STAINLESS STEEL - DVC International ApS - #1

Text version of the page

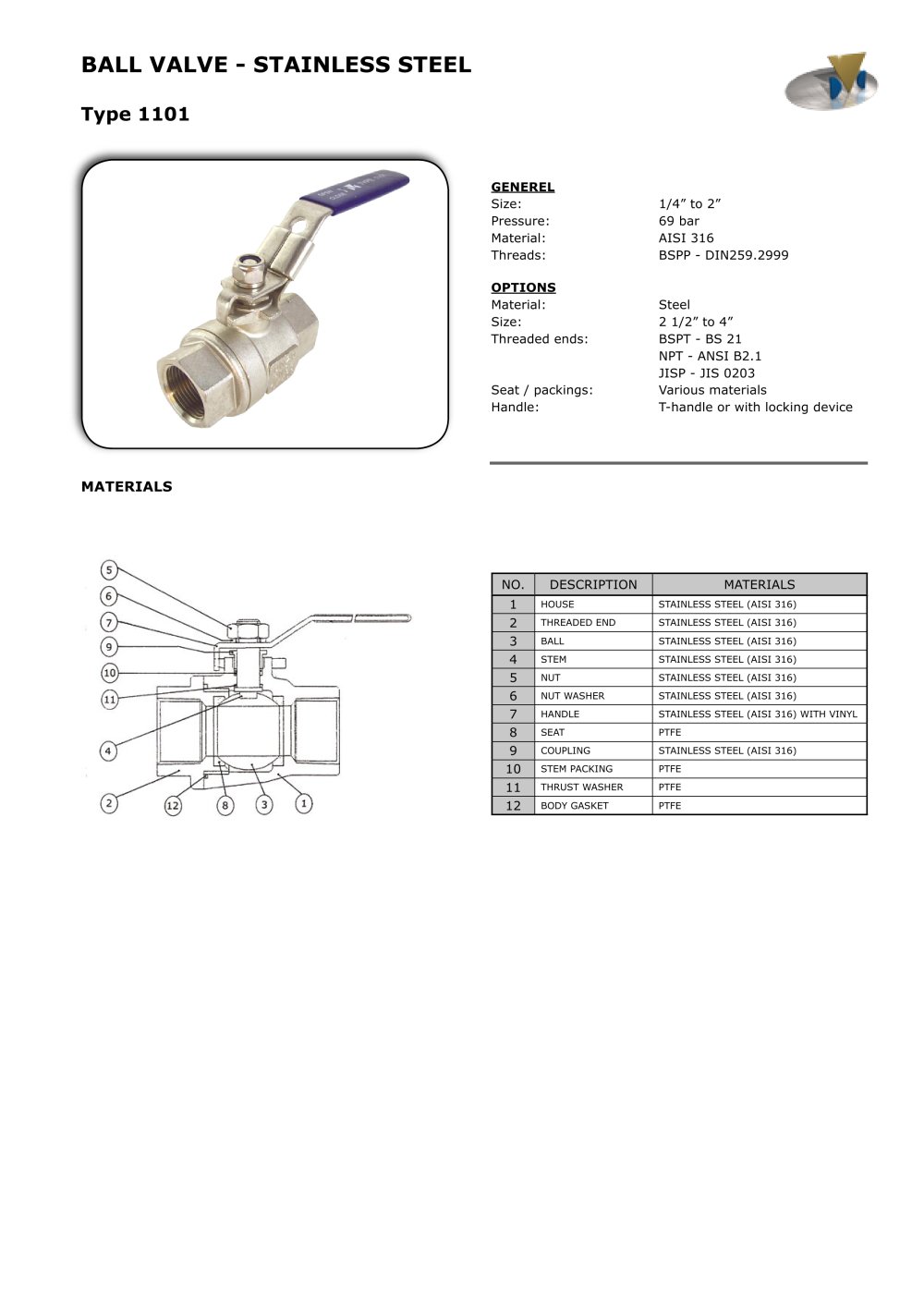

BALL VALVE - STAINLESS STEEL Type 1101 GENEREL Size: 1/4” to 2” Pressure: 69 bar Material: AISI 316 Threads: BSPP - DIN259.2999 OPTIONS Material: Steel Size: 2 1/2” to 4” Threaded ends: BSPT - BS 21 NPT - ANSI B2.1 JISP - JIS 0203 Seat / packings: Various materials Handle: T-handle or with locking device NO. DESCRIPTION MATERIALS 1 HOUSE STAINLESS STEEL (AISI 316) 2 THREADED END STAINLESS STEEL (AISI 316) 3 BALL STAINLESS STEEL (AISI 316) 4 STEM STAINLESS STEEL (AISI 316) 5 NUT STAINLESS STEEL (AISI 316) 6 NUT WASHER STAINLESS STEEL (AISI 316) 7 HANDLE STAINLESS STEEL (AISI 316) WITH VINYL 8 SEAT PTFE 9 COUPLING STAINLESS STEEL (AISI 316) 10 STEM PACKING PTFE 11 THRUST WASHER PTFE 12 BODY GASKET PTFE MATERIALS
