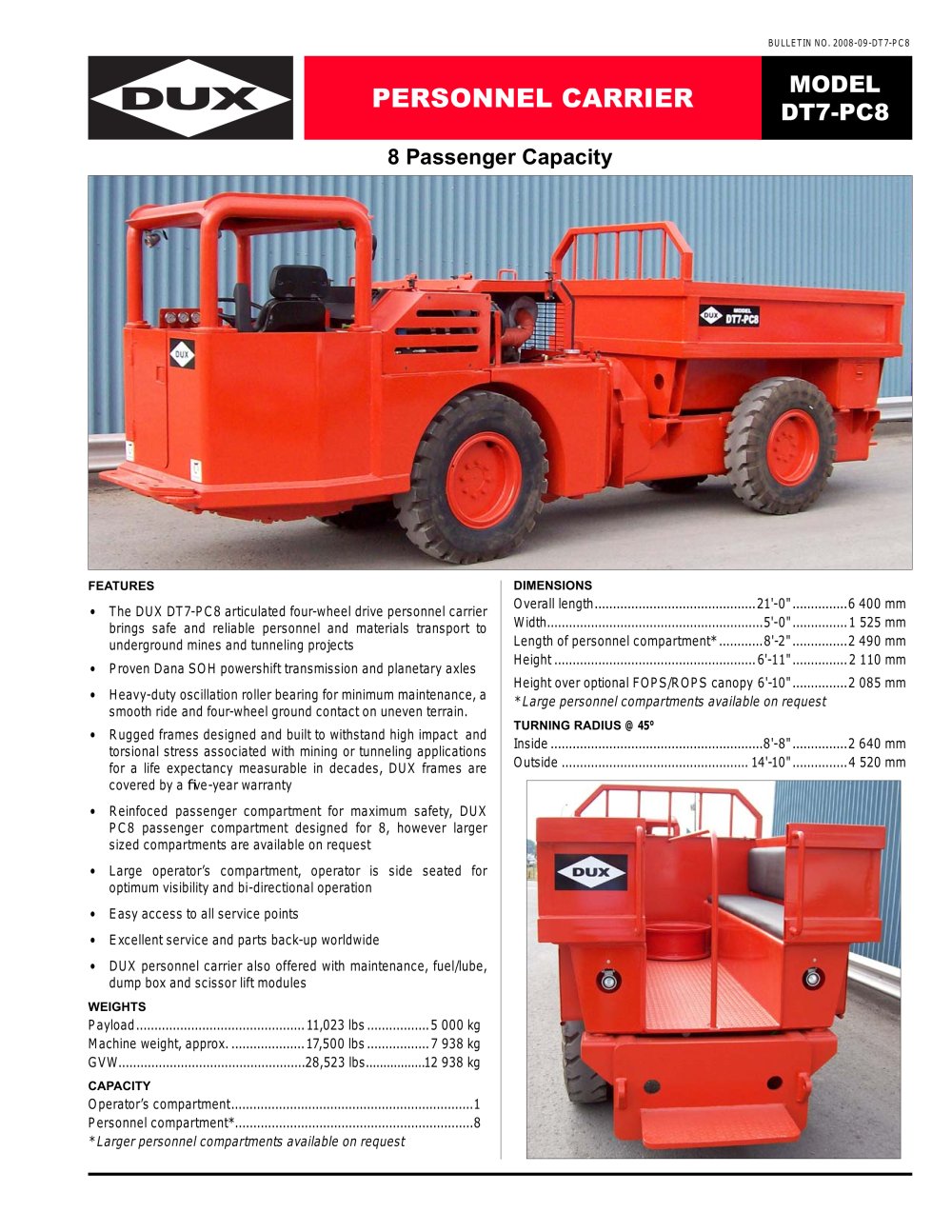

BULLETIN NO. 2008-09-DT7-PC8 MODEL PERSONNEL CARRIER DT7-PC8 8 Passenger Capacity FEATURES • The DUX DT7-PC8 articulated four-wheel drive personnel carrier brings safe and reliable personnel and materials transport to underground mines and tunneling projects • Proven Dana SOH powershift transmission and planetary axles • Heavy-duty oscillation roller bearing for minimum maintenance, a smooth ride and four-wheel ground contact on uneven terrain. • Rugged frames designed and built to withstand high impact and torsional stress associated with mining or tunneling applications for a life expectancy measurable in decades, DUX frames are covered by a fi ve-year warranty • Reinfoced passenger compartment for maximum safety, DUX PC8 passenger compartment designed for 8, however larger sized compartments are available on request • Large operator’s compartment, operator is side seated for optimum visibility and bi-directional operation • Easy access to all service points • Excellent service and parts back-up worldwide • DUX personnel carrier also offered with maintenance, fuel/lube, dump box and scissor lift modules WEIGHTS Payload .............................................. 11,023 lbs .................5 000 kg Machine weight, approx. ....................17,500 lbs ................. 7 938 kg GVW...................................................28,523 lbs.................12 938 kg CAPACITY Operator’s compartment ..................................................................1 Personnel compartment* .................................................................8 * Larger personnel compartments available on request DIMENSIONS Overall length ............................................21'-0" ...............6 400 mm Width...........................................................5'-0" ............... 1 525 mm Length of personnel compartment* ............8'-2" ...............2 490 mm Height ....................................................... 6'-11" ............... 2 110 mm Height over optional FOPS/ROPS canopy 6'-10" ...............2 085 mm * Large personnel compartments available on request TURNING RADIUS @ 45° Inside ..........................................................8'-8" ...............2 640 mm Outside ................................................... 14'-10" ...............4 520 mm
