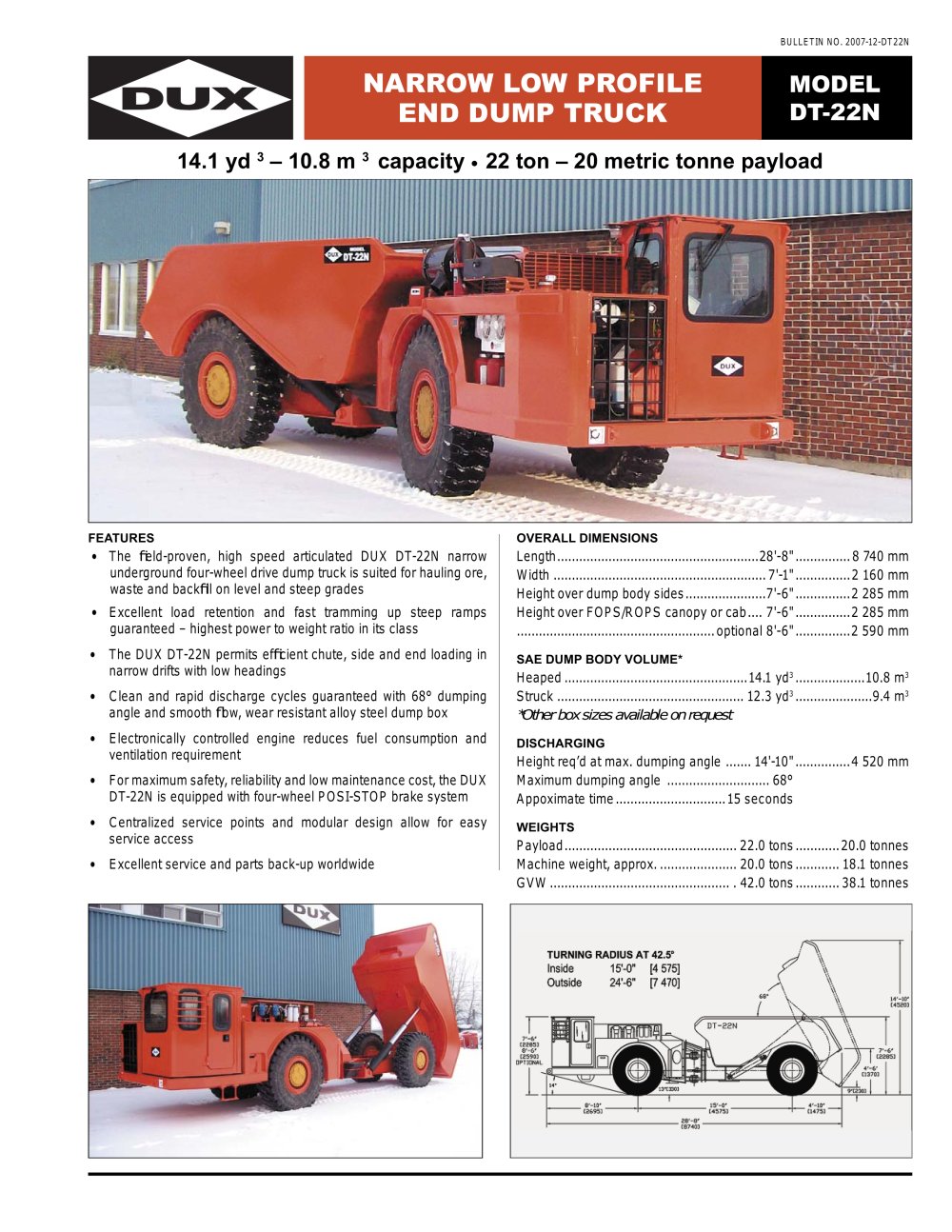

BULLETIN NO. 2007-12-DT22N MODEL DT-22N NARROW LOW PROFILE END DUMP TRUCK 14.1 yd 3 – 10.8 m 3 capacity .. 22 ton – 20 metric tonne payload FEATURES • The fi eld-proven, high speed articulated DUX DT-22N narrow underground four-wheel drive dump truck is suited for hauling ore, waste and backfi ll on level and steep grades • Excellent load retention and fast tramming up steep ramps guaranteed – highest power to weight ratio in its class • The DUX DT-22N permits effi cient chute, side and end loading in narrow drifts with low headings • Clean and rapid discharge cycles guaranteed with 68° dumping angle and smooth fl ow, wear resistant alloy steel dump box • Electronically controlled engine reduces fuel consumption and ventilation requirement • For maximum safety, reliability and low maintenance cost, the DUX DT-22N is equipped with four-wheel POSI-STOP brake system • Centralized service points and modular design allow for easy service access • Excellent service and parts back-up worldwide OVERALL DIMENSIONS Length.......................................................28'-8" ............... 8 740 mm Width .......................................................... 7'-1" ...............2 160 mm Height over dump body sides......................7'-6" ...............2 285 mm Height over FOPS/ROPS canopy or cab.... 7'-6" ...............2 285 mm ...................................................... optional 8'-6" ...............2 590 mm SAE DUMP BODY VOLUME* Heaped ..................................................14.1 yd3 ...................10.8 m3 Struck ................................................... 12.3 yd3 .....................9.4 m3 *Other box sizes available on request DISCHARGING Height req’d at max. dumping angle ....... 14'-10" ...............4 520 mm Maximum dumping angle ............................ 68° Appoximate time..............................15 seconds WEIGHTS Payload............................................... 22.0 tons ............20.0 tonnes Machine weight, approx. ..................... 20.0 tons ............ 18.1 tonnes GVW................................................. . 42.0 tons ............ 38.1 tonnes
