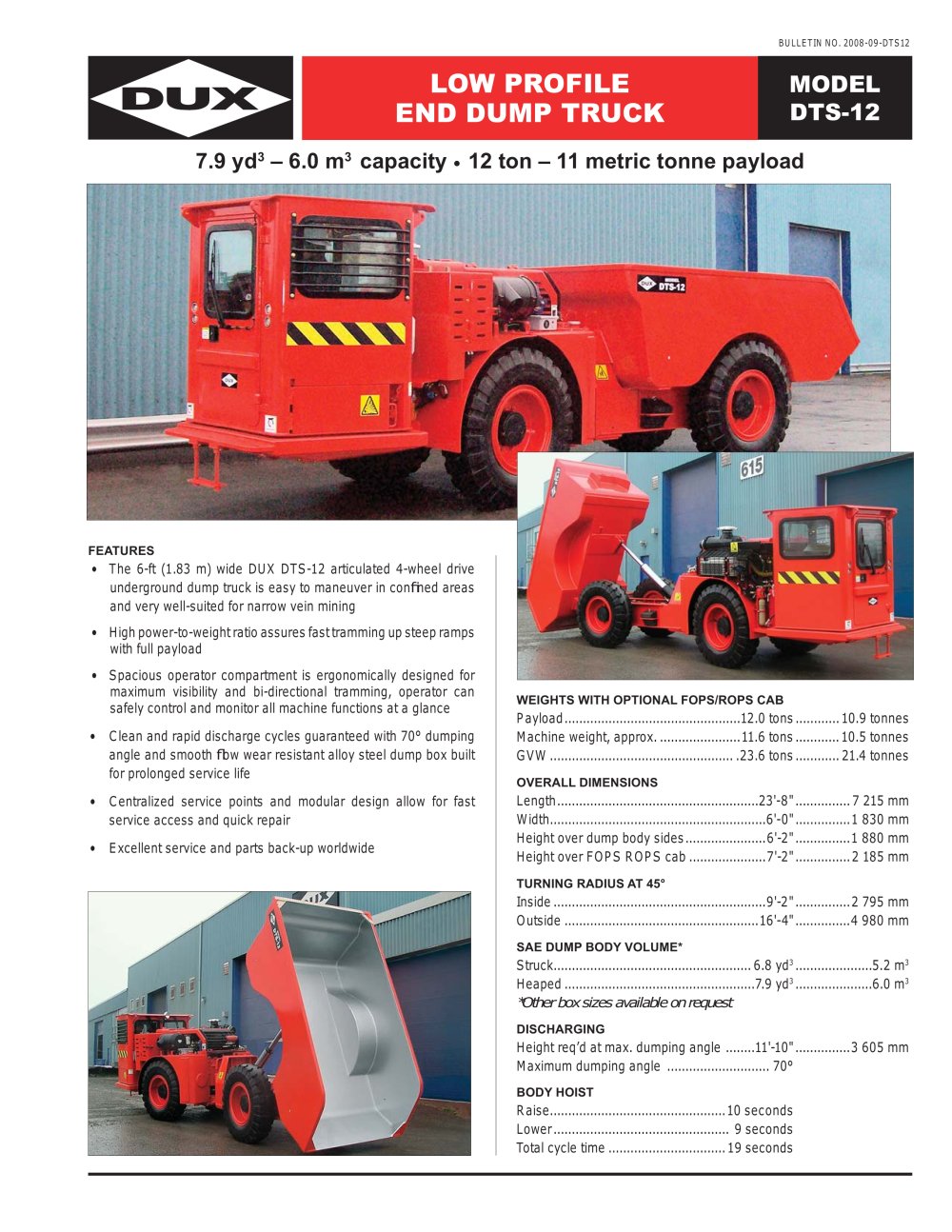

BULLETIN NO. 2008-09-DTS12 7.9 yd3 – 6.0 m3 capacity .. 12 ton – 11 metric tonne payload FEATURES • The 6-ft (1.83 m) wide DUX DTS-12 articulated 4-wheel drive underground dump truck is easy to maneuver in confi ned areas and very well-suited for narrow vein mining • High power-to-weight ratio assures fast tramming up steep ramps with full payload • Spacious operator compartment is ergonomically designed for maximum visibility and bi-directional tramming, operator can safely control and monitor all machine functions at a glance • Clean and rapid discharge cycles guaranteed with 70° dumping angle and smooth fl ow wear resistant alloy steel dump box built for prolonged service life • Centralized service points and modular design allow for fast service access and quick repair • Excellent service and parts back-up worldwide WEIGHTS WITH OPTIONAL FOPS/ROPS CAB Payload ................................................12.0 tons ............ 10.9 tonnes Machine weight, approx. ......................11.6 tons ............ 10.5 tonnes GVW .................................................. .23.6 tons ............ 21.4 tonnes OVERALL DIMENSIONS Length .......................................................23'-8" ............... 7 215 mm Width...........................................................6'-0" ...............1 830 mm Height over dump body sides ......................6'-2" ...............1 880 mm Height over FOPS ROPS cab .....................7'-2" ............... 2 185 mm TURNING RADIUS AT 45° Inside ..........................................................9'-2" ...............2 795 mm Outside .....................................................16'-4" ...............4 980 mm SAE DUMP BODY VOLUME* Struck...................................................... 6.8 yd3 .....................5.2 m3 Heaped ....................................................7.9 yd3 .....................6.0 m3 *Other box sizes available on request DISCHARGING Height req’d at max. dumping angle ........11'-10" ...............3 605 mm Maximum dumping angle ............................ 70° BODY HOIST Raise................................................10 seconds Lower ................................................ 9 seconds Total cycle time ................................ 19 seconds LOW PROFILE END DUMP TRUCK MODEL DTS-12
