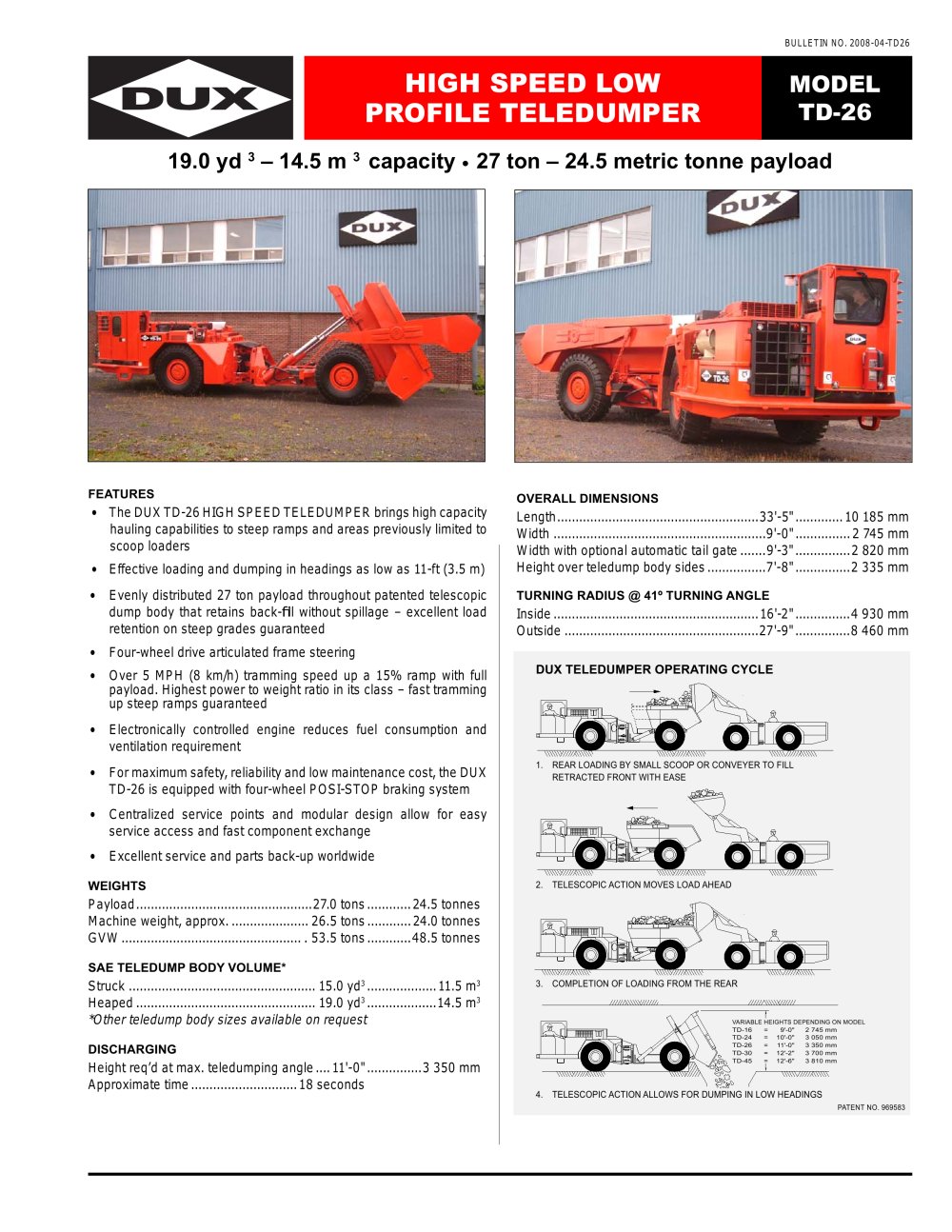

BULLETIN NO. 2008-04-TD26 MODEL TD-26 HIGH SPEED LOW PROFILE TELEDUMPER 19.0 yd 3 – 14.5 m 3 capacity .. 27 ton – 24.5 metric tonne payload FEATURES • The DUX TD-26 HIGH SPEED TELEDUMPER brings high capacity hauling capabilities to steep ramps and areas previously limited to scoop loaders • Effective loading and dumping in headings as low as 11-ft (3.5 m) • Evenly distributed 27 ton payload throughout patented telescopic dump body that retains back-fi ll without spillage – excellent load retention on steep grades guaranteed • Four-wheel drive articulated frame steering • Over 5 MPH (8 km/h) tramming speed up a 15% ramp with full payload. Highest power to weight ratio in its class – fast tramming up steep ramps guaranteed • Electronically controlled engine reduces fuel consumption and ventilation requirement • For maximum safety, reliability and low maintenance cost, the DUX TD-26 is equipped with four-wheel POSI-STOP braking system • Centralized service points and modular design allow for easy service access and fast component exchange • Excellent service and parts back-up worldwide WEIGHTS Payload................................................27.0 tons ............ 24.5 tonnes Machine weight, approx. ..................... 26.5 tons ............ 24.0 tonnes GVW................................................. . 53.5 tons ............48.5 tonnes SAE TELEDUMP BODY VOLUME* Struck ................................................... 15.0 yd3 ................... 11.5 m3 Heaped ................................................. 19.0 yd3 ...................14.5 m3 *Other teledump body sizes available on request DISCHARGING Height req’d at max. teledumping angle .... 11'-0" ...............3 350 mm Approximate time ............................. 18 seconds OVERALL DIMENSIONS Length.......................................................33'-5" ............. 10 185 mm Width ..........................................................9'-0" ............... 2 745 mm Width with optional automatic tail gate .......9'-3" ...............2 820 mm Height over teledump body sides ................7'-8" ...............2 335 mm TURNING RADIUS @ 41º TURNING ANGLE Inside ........................................................16'-2" ...............4 930 mm Outside .....................................................27'-9" ...............8 460 mm DUX TELEDUMPER OPERATING CYCLE 1. REAR LOADING BY SMALL SCOOP OR CONVEYER TO FILL RETRACTED FRONT WITH EASE 3. COMPLETION OF LOADING FROM THE REAR 4. TELESCOPIC ACTION ALLOWS FOR DUMPING IN LOW HEADINGS 2. TELESCOPIC ACTION MOVES LOAD AHEAD TD-16 = 9'-0" 2 745 mm TD-24 = 10'-0" 3 050 mm TD-26 = 11'-0" 3 350 mm TD-30 = 12'-2" 3 700 mm TD-45 = 12'-6" 3 810 mm VARIABLE HEIGHTS DEPENDING ON MODEL PATENT NO. 969583
