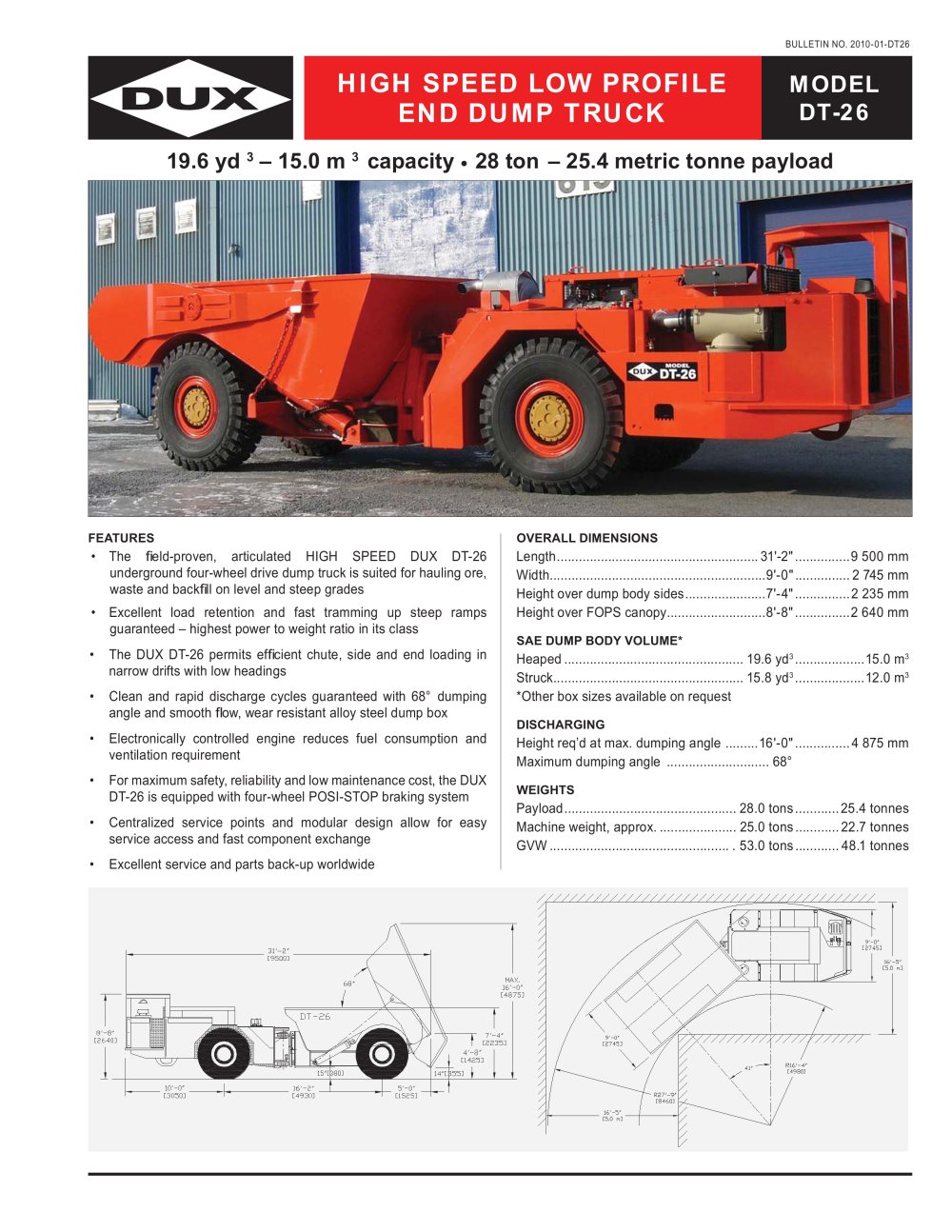

BULLETIN NO. 2010-01-DT26 MODEL DT-26 HIGH SPEED LOW PROFILE END DUMP TRUCK 19.6 yd 3 – 15.0 m 3 capacity ƒÜƒn28 ton – 25.4 metric tonne payload FEATURES • The fi eld-proven, articulated HIGH SPEED DUX DT-26 underground four-wheel drive dump truck is suited for hauling ore, waste and backfi ll on level and steep grades • Excellent load retention and fast tramming up steep ramps guaranteed – highest power to weight ratio in its class • The DUX DT-26 permits effi cient chute, side and end loading in narrow drifts with low headings • Clean and rapid discharge cycles guaranteed with 68° dumping angle and smooth fl ow, wear resistant alloy steel dump box • Electronically controlled engine reduces fuel consumption and ventilation requirement • For maximum safety, reliability and low maintenance cost, the DUX DT-26 is equipped with four-wheel POSI-STOP braking system • Centralized service points and modular design allow for easy service access and fast component exchange • Excellent service and parts back-up worldwide OVERALL DIMENSIONS Length ....................................................... 31'-2" ...............9 500 mm Width...........................................................9'-0" ............... 2 745 mm Height over dump body sides ......................7'-4" ...............2 235 mm Height over FOPS canopy ...........................8'-8" ...............2 640 mm SAE DUMP BODY VOLUME* Heaped ................................................. 19.6 yd3 ...................15.0 m3 Struck.................................................... 15.8 yd3 ...................12.0 m3 *Other box sizes available on request DISCHARGING Height req’d at max. dumping angle .........16'-0" ............... 4 875 mm Maximum dumping angle ............................ 68° WEIGHTS Payload ............................................... 28.0 tons ............25.4 tonnes Machine weight, approx. ..................... 25.0 tons ............ 22.7 tonnes GVW ................................................. . 53.0 tons ............ 48.1 tonnes
