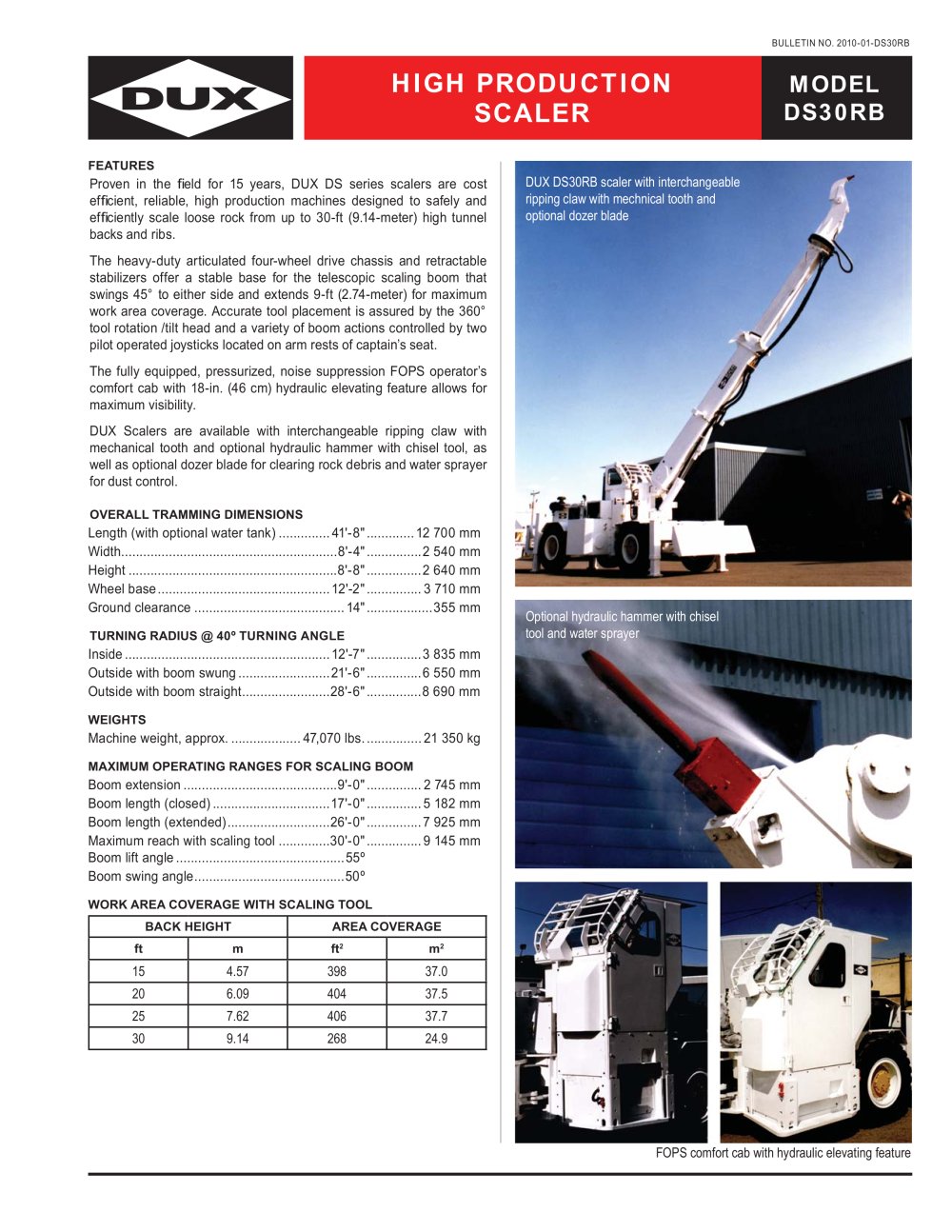

BULLETIN NO. 2010-01-DS30RB MODEL DS30RB HIGH PRODUCTION SCALER FEATURES Proven in the fi eld for 15 years, DUX DS series scalers are cost effi cient, reliable, high production machines designed to safely and effi ciently scale loose rock from up to 30-ft (9.14-meter) high tunnel backs and ribs. The heavy-duty articulated four-wheel drive chassis and retractable stabilizers offer a stable base for the telescopic scaling boom that swings 45° to either side and extends 9-ft (2.74-meter) for maximum work area coverage. Accurate tool placement is assured by the 360° tool rotation /tilt head and a variety of boom actions controlled by two pilot operated joysticks located on arm rests of captain’s seat. The fully equipped, pressurized, noise suppression FOPS operator’s comfort cab with 18-in. (46 cm) hydraulic elevating feature allows for maximum visibility. DUX Scalers are available with interchangeable ripping claw with mechanical tooth and optional hydraulic hammer with chisel tool, as well as optional dozer blade for clearing rock debris and water sprayer for dust control. OVERALL TRAMMING DIMENSIONS Length (with optional water tank) .............. 41'-8" ............. 12 700 mm Width...........................................................8'-4" ...............2 540 mm Height .........................................................8'-8" ...............2 640 mm Wheel base ...............................................12'-2" ............... 3 710 mm Ground clearance ......................................... 14" ..................355 mm TURNING RADIUS @ 40º TURNING ANGLE Inside ........................................................ 12'-7" ...............3 835 mm Outside with boom swung .........................21'-6" ...............6 550 mm Outside with boom straight ........................28'-6" ...............8 690 mm WEIGHTS Machine weight, approx. ................... 47,070 lbs. ............... 21 350 kg MAXIMUM OPERATING RANGES FOR SCALING BOOM Boom extension ..........................................9'-0" ............... 2 745 mm Boom length (closed) ................................17'-0" ............... 5 182 mm Boom length (extended) ............................26'-0" ...............7 925 mm Maximum reach with scaling tool ..............30'-0" ............... 9 145 mm Boom lift angle ..............................................55º Boom swing angle .........................................50º WORK AREA COVERAGE WITH SCALING TOOL BACK HEIGHT AREA COVERAGE ft m ft2 m2 15 4.57 398 37.0 20 6.09 404 37.5 25 7.62 406 37.7 30 9.14 268 24.9 DUX DS30RB scaler with interchangeable ripping claw with mechnical tooth and optional dozer blade Optional hydraulic hammer with chisel tool and water sprayer FOPS comfort cab with hydraulic elevating feature
