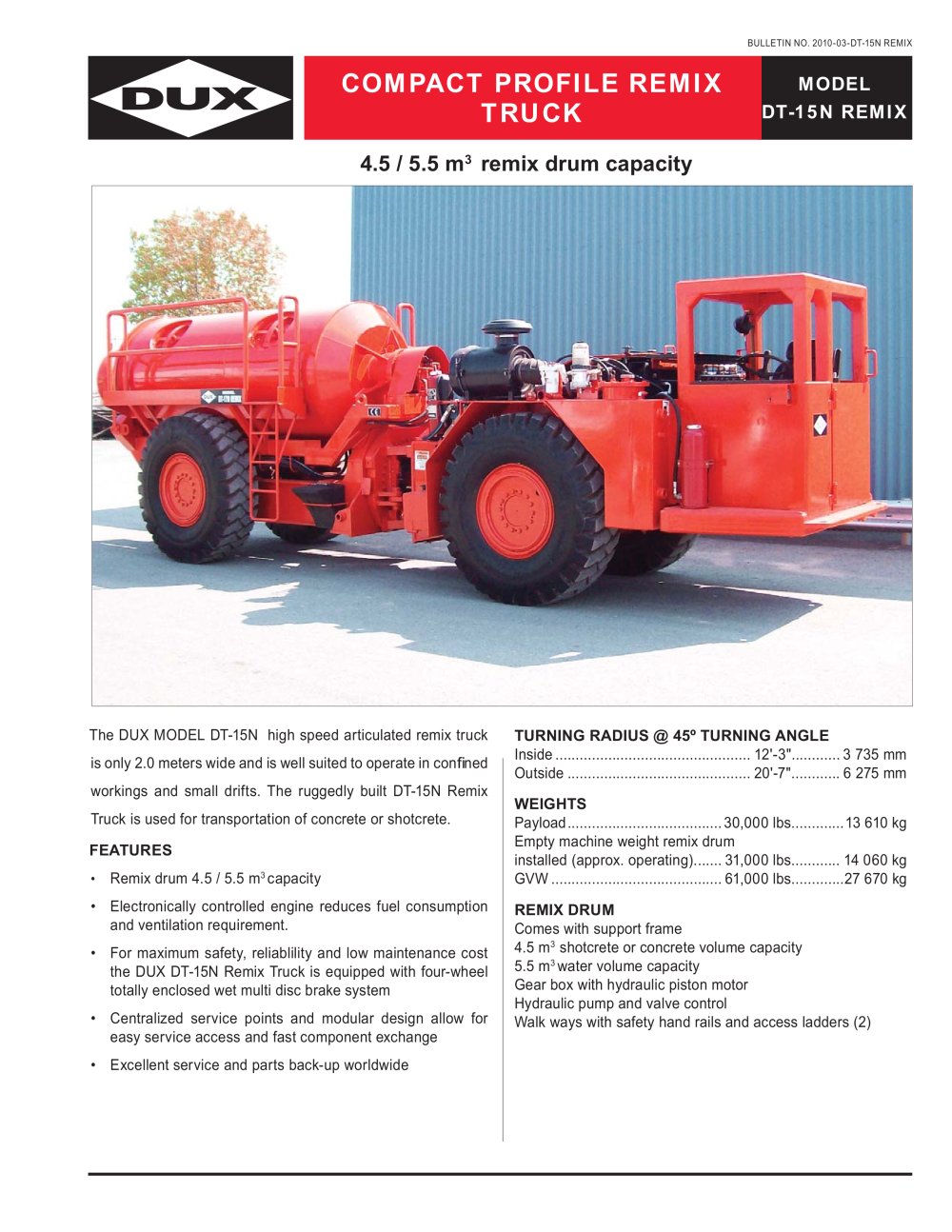

MODEL DT-15N REMIX COMPACT PROFILE REMIX TRUCK 4.5 / 5.5 m3 remix drum capacity The DUX MODEL DT-15N high speed articulated remix truck is only 2.0 meters wide and is well suited to operate in confi ned workings and small drifts. The ruggedly built DT-15N Remix Truck is used for transportation of concrete or shotcrete. FEATURES • Remix drum 4.5 / 5.5 m3 capacity • Electronically controlled engine reduces fuel consumption and ventilation requirement. • For maximum safety, reliablility and low maintenance cost the DUX DT-15N Remix Truck is equipped with four-wheel totally enclosed wet multi disc brake system • Centralized service points and modular design allow for easy service access and fast component exchange • Excellent service and parts back-up worldwide TURNING RADIUS @ 45º TURNING ANGLE Inside ................................................ 12'-3" ............ 3 735 mm Outside ............................................. 20'-7" ............ 6 275 mm WEIGHTS Payload ......................................30,000 lbs .............13 610 kg Empty machine weight remix drum installed (approx. operating). ...... 31,000 lbs ............ 14 060 kg GVW .......................................... 61,000 lbs .............27 670 kg REMIX DRUM Comes with support frame 4.5 m3 shotcrete or concrete volume capacity 5.5 m3 water volume capacity Gear box with hydraulic piston motor Hydraulic pump and valve control Walk ways with safety hand rails and access ladders (2) BULLETIN NO. 2010-03-DT-15N REMIX
