Compact Profile End Dump Truck (DT-7) - DUX MACHINERY CORPORATION - #1

Text version of the page

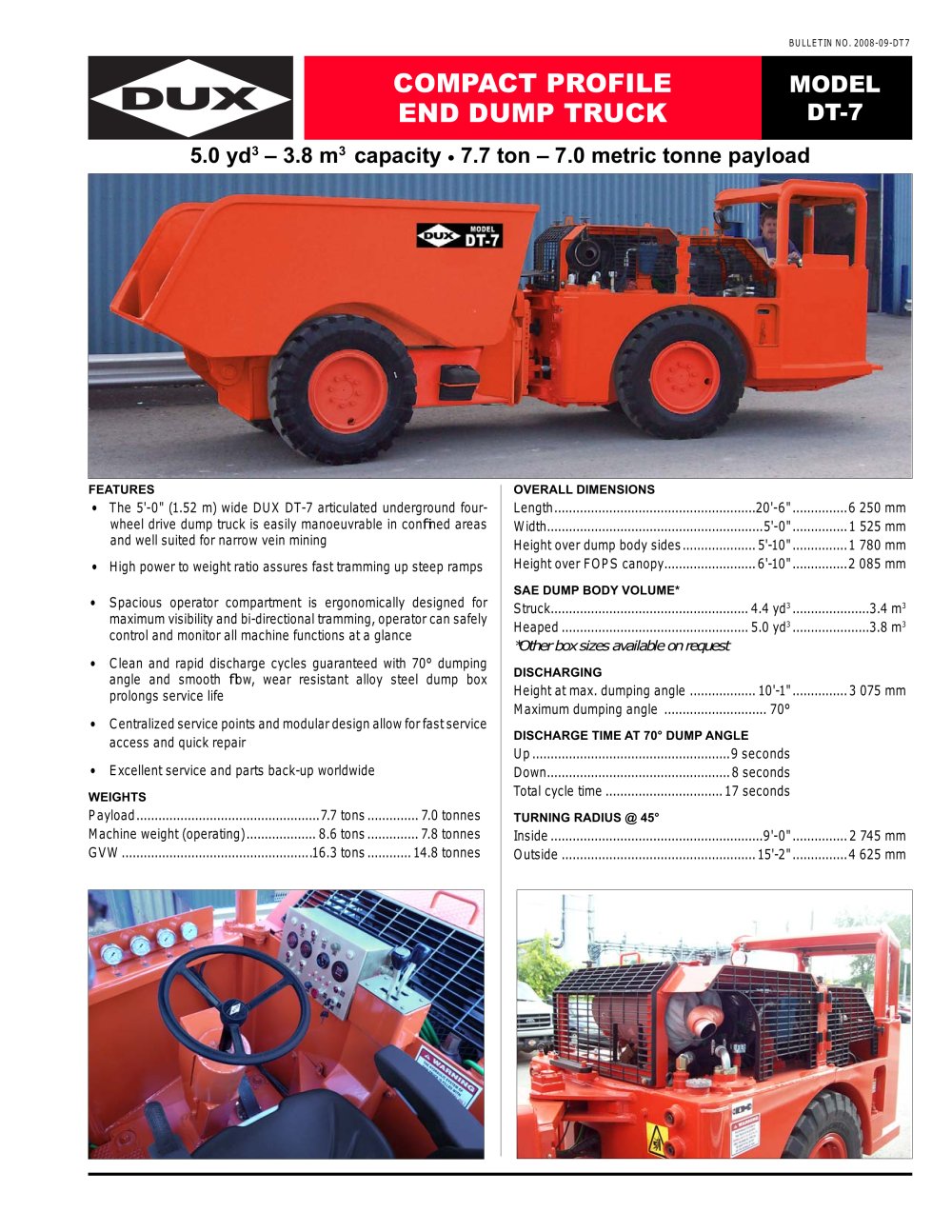

BULLETIN NO. 2008-09-DT7 MODEL DT-7 COMPACT PROFILE END DUMP TRUCK FEATURES • The 5'-0" (1.52 m) wide DUX DT-7 articulated underground fourwheel drive dump truck is easily manoeuvrable in confi ned areas and well suited for narrow vein mining • High power to weight ratio assures fast tramming up steep ramps • Spacious operator compartment is ergonomically designed for maximum visibility and bi-directional tramming, operator can safely control and monitor all machine functions at a glance • Clean and rapid discharge cycles guaranteed with 70° dumping angle and smooth fl ow, wear resistant alloy steel dump box prolongs service life • Centralized service points and modular design allow for fast service access and quick repair • Excellent service and parts back-up worldwide WEIGHTS Payload ..................................................7.7 tons .............. 7.0 tonnes Machine weight (operating) ................... 8.6 tons .............. 7.8 tonnes GVW ....................................................16.3 tons ............ 14.8 tonnes OVERALL DIMENSIONS Length .......................................................20'-6" ...............6 250 mm Width...........................................................5'-0" ............... 1 525 mm Height over dump body sides .................... 5'-10" ...............1 780 mm Height over FOPS canopy ......................... 6'-10" ...............2 085 mm SAE DUMP BODY VOLUME* Struck...................................................... 4.4 yd3 .....................3.4 m3 Heaped ................................................... 5.0 yd3 .....................3.8 m3 *Other box sizes available on request DISCHARGING Height at max. dumping angle .................. 10'-1" ............... 3 075 mm Maximum dumping angle ............................ 70° DISCHARGE TIME AT 70° DUMP ANGLE Up ......................................................9 seconds Down .................................................. 8 seconds Total cycle time ................................ 17 seconds TURNING RADIUS @ 45° Inside ..........................................................9'-0" ............... 2 745 mm Outside ..................................................... 15'-2" ...............4 625 mm 5.0 yd3 – 3.8 m3 capacity .. 7.7 ton – 7.0 metric tonne payload
