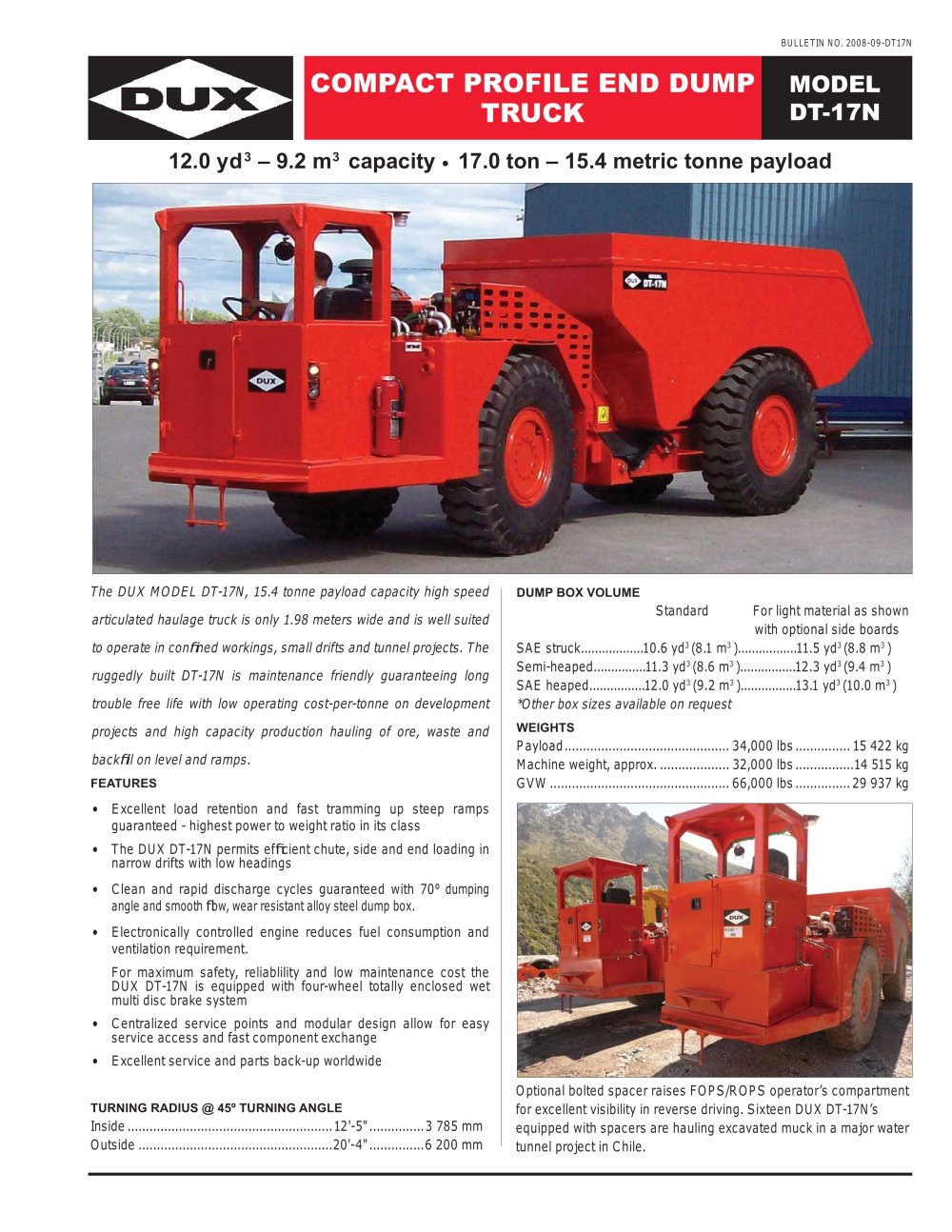

MODEL DT-17N COMPACT PROFILE END DUMP TRUCK 12.0 yd3 – 9.2 m3 capacity .. 17.0 ton – 15.4 metric tonne payload The DUX MODEL DT-17N, 15.4 tonne payload capacity high speed articulated haulage truck is only 1.98 meters wide and is well suited to operate in confi ned workings, small drifts and tunnel projects. The ruggedly built DT-17N is maintenance friendly guaranteeing long trouble free life with low operating cost-per-tonne on development projects and high capacity production hauling of ore, waste and backfi ll on level and ramps. FEATURES • Excellent load retention and fast tramming up steep ramps guaranteed - highest power to weight ratio in its class • The DUX DT-17N permits effi cient chute, side and end loading in narrow drifts with low headings • Clean and rapid discharge cycles guaranteed with 70° dumping angle and smooth fl ow, wear resistant alloy steel dump box. • Electronically controlled engine reduces fuel consumption and ventilation requirement. For maximum safety, reliablility and low maintenance cost the DUX DT-17N is equipped with four-wheel totally enclosed wet multi disc brake system • Centralized service points and modular design allow for easy service access and fast component exchange • Excellent service and parts back-up worldwide TURNING RADIUS @ 45º TURNING ANGLE Inside ........................................................12'-5" ...............3 785 mm Outside .....................................................20'-4" ...............6 200 mm DUMP BOX VOLUME Standard For light material as shown with optional side boards SAE struck..................10.6 yd3 (8.1 m3 ).................11.5 yd3 (8.8 m3 ) Semi-heaped...............11.3 yd3 (8.6 m3 )................12.3 yd3 (9.4 m3 ) SAE heaped................12.0 yd3 (9.2 m3 )................13.1 yd3 (10.0 m3 ) *Other box sizes available on request WEIGHTS Payload ............................................. 34,000 lbs ............... 15 422 kg Machine weight, approx. ................... 32,000 lbs ................14 515 kg GVW ................................................. 66,000 lbs ............... 29 937 kg BULLETIN NO. 2008-09-DT17N Optional bolted spacer raises FOPS/ROPS operator’s compartment for excellent visibility in reverse driving. Sixteen DUX DT-17N’s equipped with spacers are hauling excavated muck in a major water tunnel project in Chile.
