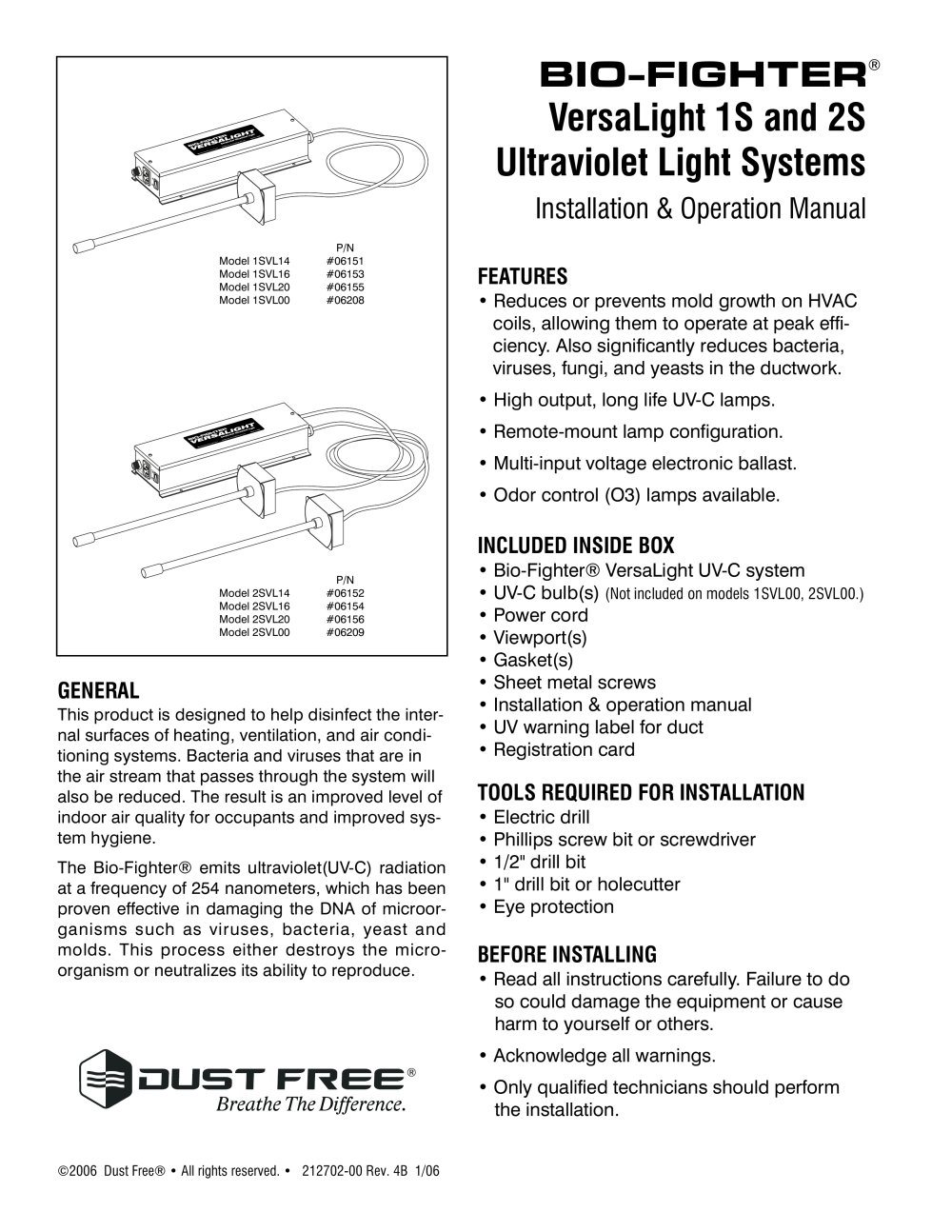

BIO-FIGHTER

® ®

VersaLight 1S and 2S Ultraviolet Light Systems

FUSE

Installation & Operation Manual

P/NModel 1SVL14 #06151 Model 1SVL16 #06153 Model 1SVL20#06155 Model 1SVL00#06208 P/NModel 2SVL14 #06152 Model 2SVL16 #06154 Model 2SVL20#06156 Model 2SVL00#06209 FEATURES
• Reduces or prevents mold growth on HVACcoils, allowing them to operate at peak effi- ciency. Also significantly reduces bacteria, viruses, fungi, and yeasts in the ductwork.• High output, long life UV-C lamps. • Remote-mount lamp configuration. • Multi-input voltage electronic ballast. • Odor control (O3) lamps available. ® FUSE INCLUDED INSIDE BOX
• Bio-Fighter® VersaLight UV-C system• UV-C bulb(s) (Not included on models 1SVL00, 2SVL00.) • Power cord • Viewport(s) • Gasket(s) • Sheet metal screws • Installation & operation manual • UV warning label for duct • Registration card GENERAL
This product is designed to help disinfect the inter- nal surfaces of heating, ventilation, and air condi- tioning systems. Bacteria and viruses that are in the air stream that passes through the system will also be reduced. The result is an improved level of indoor air quality for occupants and improved sys- tem hygiene.The Bio-Fighter® emits ultraviolet(UV-C) radiationat a frequency of 254 nanometers, which has been proven effective in damaging the DNA of microor- ganisms such as viruses, bacteria, yeast and molds. This process either destroys the micro- organism or neutralizes its ability to reproduce. TOOLS REQUIRED FOR INSTALLATION
• Electric drill • Phillips screw bit or screwdriver • 1/2" drill bit • 1" drill bit or holecutter • Eye protection BEFORE INSTALLING
• Read all instructions carefully. Failure to doso could damage the equipment or cause harm to yourself or others.• Acknowledge all warnings. • Only qualified technicians should performthe installation. ©2006 Dust Free® • All rights reserved. • 212702-00 Rev. 4B 1/06
