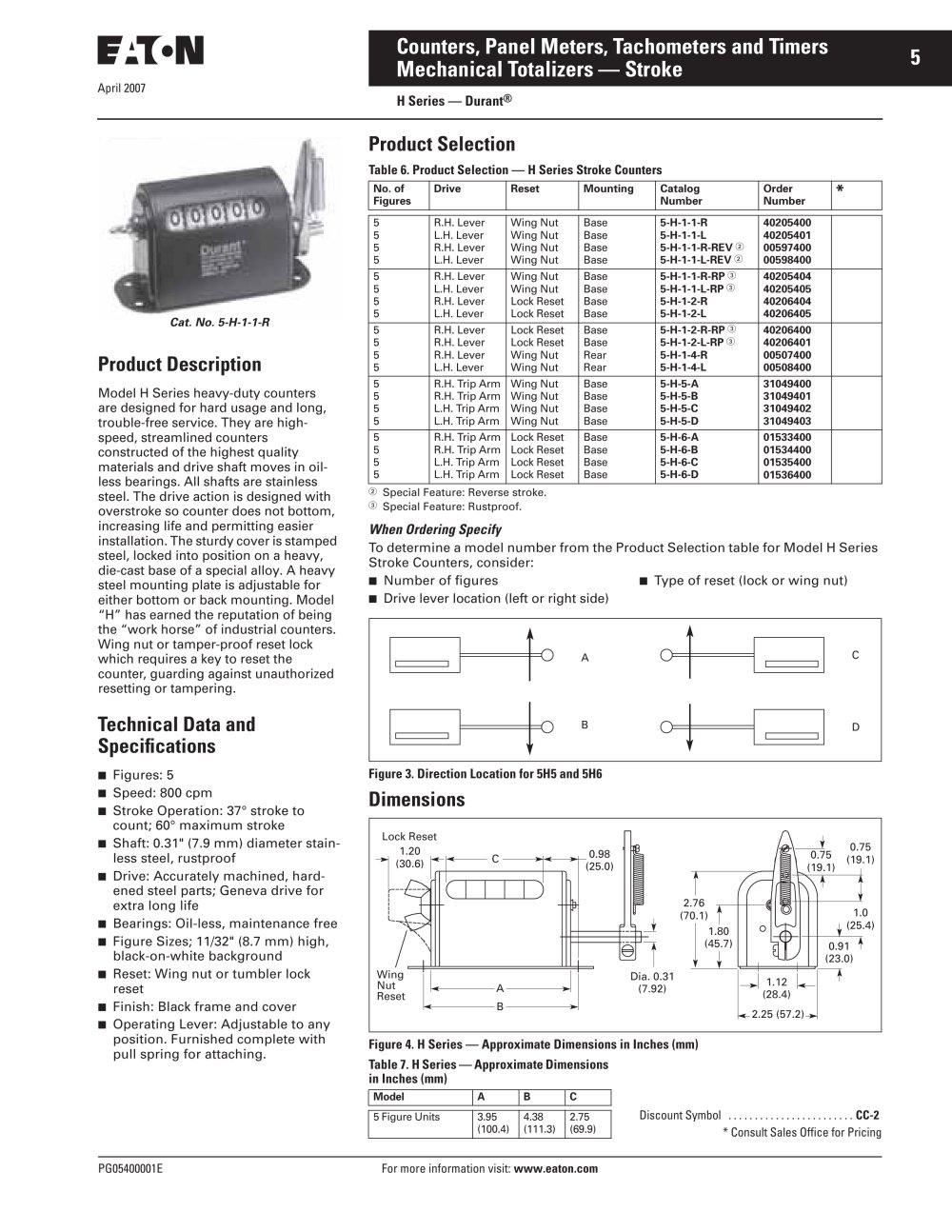

| Cat. No. 5-H-1-1-R Product Description Model H Series heavy-duty counters are designed for hard usage and long, trouble-free service. They are highspeed, streamlined counters constructed of the highest quality materials and drive shaft moves in oil-less bearings manufacturer. All shafts are stainless steel. The drive action is designed with overstroke so counter does not bottom, increasing life and permitting easier installation. The sturdy cover is stamped steel, locked into position on a heavy, die-cast base of a special alloy. A heavy steel mounting plate is adjustable for either bottom or back mounting. Model "H" has earned the reputation of being the "work horse" of industrial counters. Wing nut or tamper-proof reset lock which requires a key to reset the counter, guarding against unauthorized resetting or tampering. Technical Data and Specifications ■ Figures: 5 ■ Speed: 800 cpm ■ Stroke Operation: 37° stroke to count; 60° maximum stroke ■ Shaft: 0.31" (7.9 mm) diameter stainless steel, rustproof ■ Drive: Accurately machined, hardened steel parts; Geneva drive for extra long life ■ Bearings: Oil-less, maintenance free ■ Figure Sizes; 11/32" (8.7 mm) high, black-on-white background ■ Reset: Wing nut or tumbler lock reset ■ Finish: Black frame and cover ■ Operating Lever: Adjustable to any position. Furnished complete with pull spring for attaching. |
