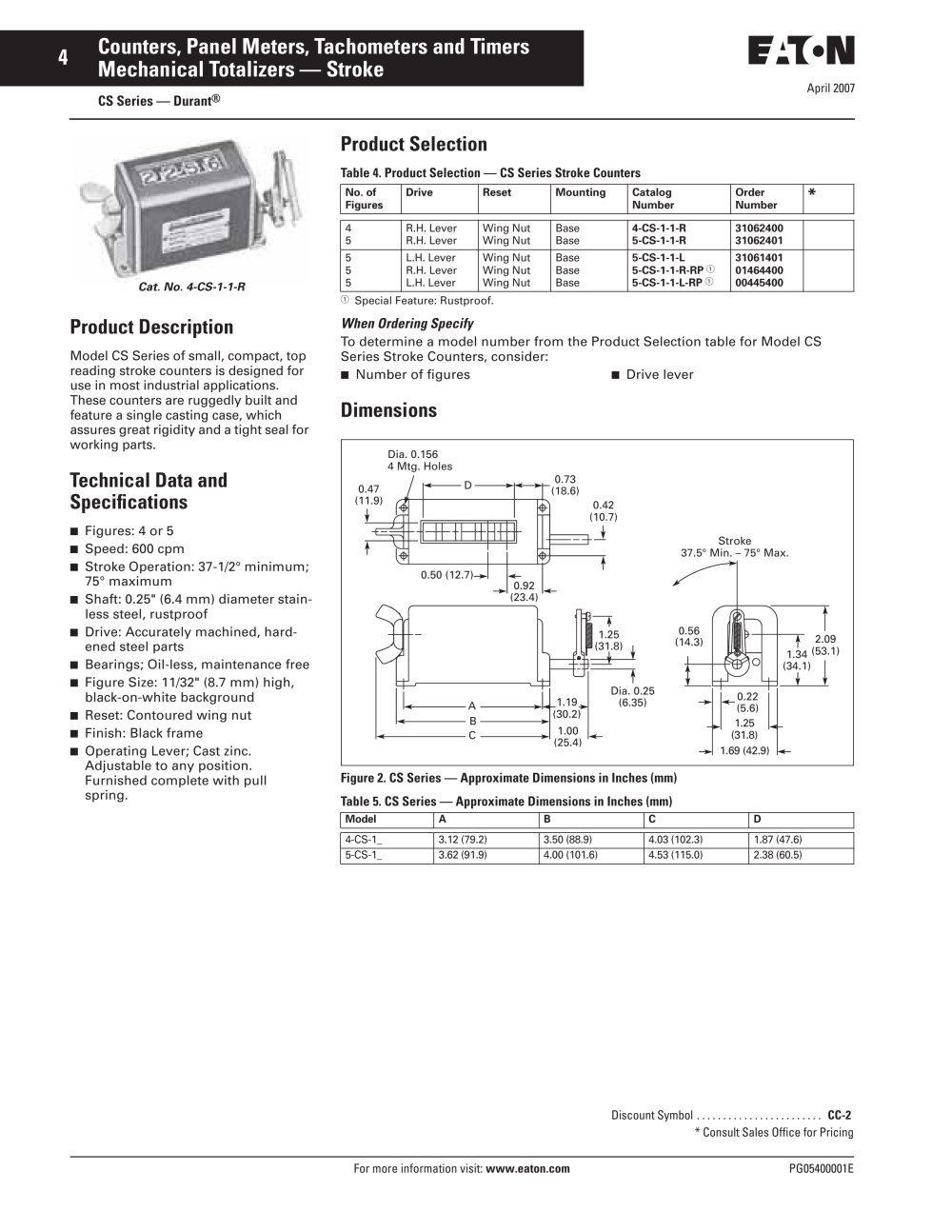

| | | Counters, Panel Meters, Tachometers and Timers Mechanical Totalizers — Stroke | | |
| | | |
| | | Product Selection | | |
| | | |
| | | Table 4. Product Selection — CS Series Stroke Counters | | |
| | | |
| | | | | | | | | | | | | | | No. of | Drive | Reset | Mounting | Catalog | Order | * | | | | Figures | | | | Number | Number | | | | | 4 | R.H. Lever | Wing Nut | Base | 4-CS-1-1-R | 31062400 | | | | | 5 | R.H. Lever | Wing Nut | Base | 5-CS-1-1-R | 31062401 | | | | | 5 | L.H. Lever | Wing Nut | Base | 5-CS-1-1-L | 31061401 | | | | | 5 | R.H. Lever | Wing Nut | Base | 5-CS-1-1-R-RP © | 01464400 | | | | | 5 | L.H. Lever | Wing Nut | Base | 5-CS-1-1-L-RP © | 00445400 | | | | | | | | | | | | | | | |
| | | Cat. No. 4-CS11-R | | |
| | | |
| | | |
| | | © Special Feature: Rustproof. When Ordering Specify To determine a model number from the Product Selection table for Model CS Series Stroke Counters, consider: ■ Number of figures ■ Drive lever Dimensions | | |
| | | Product Description Model CS Series of small, compact, top reading stroke counters is designed for use in most industrial applications. These counters are ruggedly built and feature a single casting case, which assures great rigidity and a tight industrial seal for working parts. | | |
| | | |
| | | Dia. 0.156 4 Mtg. Holes | | |
| | | |
| | | |
| | | | | |
| | | | | | | | | | | | | Technical Data and 047 Specifications (1j-9) a | | -D-i | | | | | | | | | | | ■ Figures: 4 or 5 -i---^- | a | ------- | | 3- | | | | ■ Speed: 600 cpm f V ■ Stroke Operation: 37-1/2° minimum; | | | -T | | | | | | | | | | | 0.73 "(18.6) | |
| | | |
| | | 0.42 (10.7) | | |
| | | |
| | | Stroke 37.5° Min. - 75° Max. | | |
| | | |
| | | |
| | | 0.92 (23.4) | | |
| | | ■ Shaft: 0.25" (6.4 mm) diameter stainless steel, rustproof ■ Drive: Accurately machined, hardened steel parts ■ Bearings; Oil-less, maintenance free ■ Figure Size: 11/32" (8.7 mm) high, black-on-white background ■ Reset: Contoured wing nut ■ Finish: Black frame ■ Operating Lever; Cast zinc. Adjustable to any position. Furnished complete with pull spring. | | |
| | | |
| | | n 1.25 (31.8) | | |
| | | 0.56 (14.3) | | |
| | | i" 2.09 1.34(53.1) (34.1) I | | |
| | | |
| | | |
| | | z-sJ TJ| | | |
| | | |
| | | |
| | | Dia. 0.25 (6.35) | | |
| | | _0.22 (5.6) 1.25 (31.8) 1.69 (42.9) | | |
| | | 1.19, (30.2) 1.00 (25.4) | | |
| | | -A -- B --C - | | |
| | | |
| | | |
| | | |
| | | |
| | | Figure 2. CS Series — Approximate Dimensions in Inches (mm) Table 5. CS Series — Approximate Dimensions in Inches (mm) | | |
| | | |
| | | |
| | | | | | | | | | | | | Model | A | B | C | D | | | | 4-CS-1_ | 3.12 (79.2) | 3.50 (88.9) | 4.03 (102.3) | 1.87 (47.6) | | | | 5-CS-1_ | 3.62 (91.9) | 4.00 (101.6) | 4.53 (115.0) | 2.38 (60.5) | | | | | | | | | | | | |
| | | |
| | | Discount Symbol........................ CC-2 * Consult Sales Office for Pricing | | |
| | | |
| | | For more information visit: www.eaton.com PG05400001E | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
