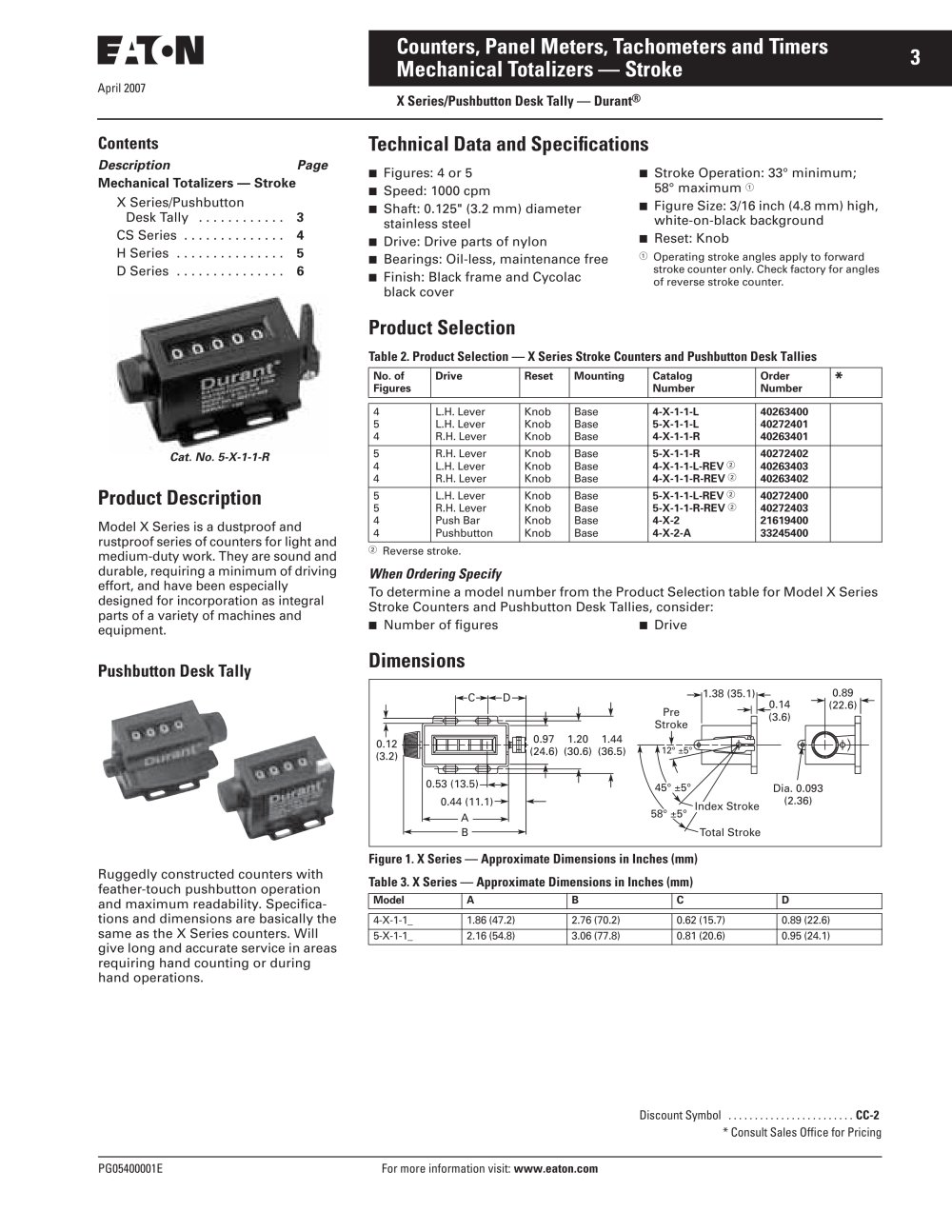

| | | Counters, Panel Meters, Tachometers and Timers Mechanical Totalizers — Stroke | | |
| | | |
| | | April 2007 | | |
| | | |
| | | Contents Description Page Mechanical Totalizers — Stroke X Series/Pushbutton Desk Tally ............ 3 CS Series.............. 4 H Series............... 5 D Series............... 6 | | |
| | | Figures: 4 or 5 Speed: 1000 cpm Shaft: 0.125" (3.2 mm) diameter stainless steel Drive: Drive parts of nylon Industrial bearings: Oil-less, maintenance free Finish: Black frame and Cycolac black cover | | |
| | | ■ Figure Size: 3/16 inch (4.8 mm) high, white-on-black background ■ Reset: Knob ® Operating stroke angles apply to forward stroke industrial counter only. Check factory for angles of reverse stroke counter. | | |
| | | |
| | | |
| | | |
| | | Product Selection | | |
| | | |
| | | Table 2. Product Selection — X Series Stroke Counters and Pushbutton Desk Tallies | | |
| | | |
| | | | | | | | | | | | | | | No. of | Drive | Reset | Mounting | Catalog | Order | * | | | | Figures | | | | Number | Number | | | | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | | | 4 | L.H. Lever | Knob | Base | 4-X-1-1-L | 40263400 | | | | | 5 | L.H. Lever | Knob | Base | 5-X-1-1-L | 40272401 | | | | | 4 | R.H. Lever | Knob | Base | 4-X-1-1-R | 40263401 | | | | | 5 | R.H. Lever | Knob | Base | 5-X-1-1-R | 40272402 | | | | | 4 | L.H. Lever | Knob | Base | 4-X-1-1-L-REV © | 40263403 | | | | | 4 | R.H. Lever | Knob | Base | 4-X-1-1-R-REV © | 40263402 | | | | | 5 | L.H. Lever | Knob | Base | 5-X-1-1-L-REV© | 40272400 | | | | | 5 | R.H. Lever | Knob | Base | 5-X-1-1-R-REV© | 40272403 | | | | | 4 | Push Bar | Knob | Base | 4-X-2 | 21619400 | | | | | 4 | Pushbutton | Knob | Base | 4-X-2-A | 33245400 | | | | | | | | | | | | | | | |
| | | Cat. No. 5-X-1-1-R | | |
| | | |
| | | Product Description Model X Series is a dustproof and rustproof series of counters for light and medium-duty work. They are sound and durable, requiring a minimum of driving effort, and have been especially designed for incorporation as integral parts of a variety of machines and equipment. | | |
| | | |
| | | © Reverse stroke. When Ordering Specify To determine a model number from the Product Selection table for Model X Series Stroke Counters and Pushbutton Desk Tallies, consider: ■ Number of figures ■ Drive Dimensions | | |
| | | |
| | | Pushbutton Desk Tally | | |
| | | |
| | | |
| | | 0.89 (22.6) | | |
| | | 1.38 (35.1) | | |
| | | C-H-«-D-H | | |
| | | |
| | | 0.14 (3.6) | | |
| | | |
| | | Pre Stroke J | | |
| | | |
| | | |
| | | F 0.12 ■ (3.2) i | | |
| | | 0.97 1.20 1.44 (24.6) (30.6) (36.5) | | |
| | | |
| | | |
| | | |
| | | 0.53 (13.5) | | |
| | | Dia. 0.093 (2.36) | | |
| | | |
| | | 0.44 (11.1)- | | |
| | | Index Stroke | | |
| | | |
| | | |
| | | |
| | | Total Stroke | | |
| | | |
| | | Figure 1. X Series — Approximate Dimensions in Inches (mm) Table 3. X Series — Approximate Dimensions in Inches (mm) | | |
| | | Ruggedly constructed counters with feather-touch pushbutton operation and maximum readability. Specifications and dimensions are basically the same as the X Series counters. Will give long and accurate service in areas requiring hand counting or during hand operations. | | |
| | | |
| | | | | | | | | | | | | Model | A | B | C | D | | | | | 1.86 (47.2) | 2.76 (70.2) | 0.62 (15.7) | 0.89 (22.6) | | | | 5-X-1-1_ | 2.16 (54.8) | 3.06 (77.8) | 0.81 (20.6) | 0.95 (24.1) | | | | | | | | | | | | |
| | | |
| | | |
| | | Discount Symbol ........................CC-2 * Consult Sales Office for Pricing | | |
| | | |
