Sealed Ultrasonic Converter Booster Ultrasonic Cutting Blades ? Connected to the booster. They aremade from titanium and can be used for guillotining or slitting products.? Custom cutting blades available ? Used to maintain, decrease or increasethe amplitude of the cutting blade/horn. Also acts as mounting point for integration. Offered in titanium or aluminum.

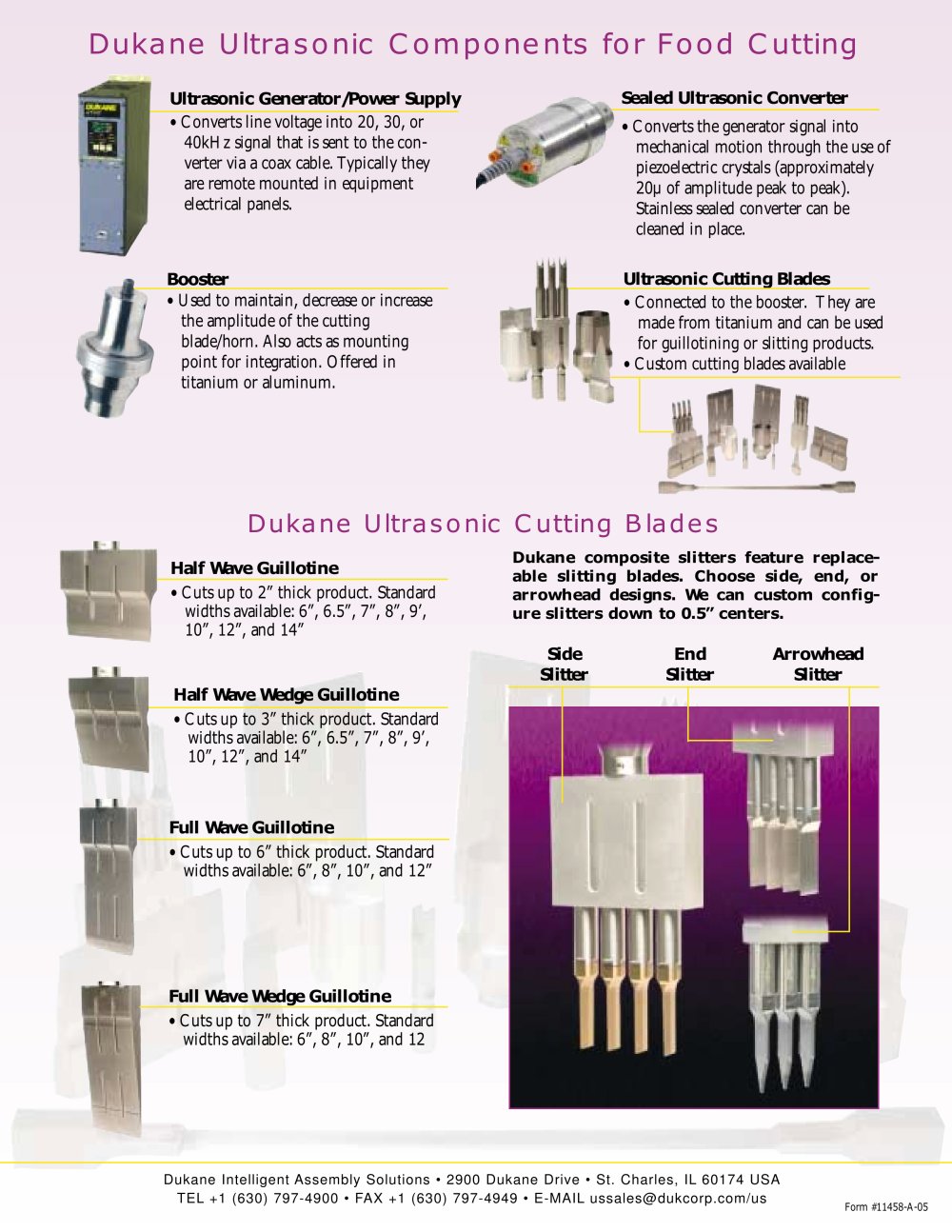

Ultrasonic Food Processing - Cutting - 15475 Dukane Ultrasonic Components for Food Cutting

Ultrasonic Generator/Power Supply ? Converts line voltage into 20, 30, or40kHz signal that is sent to the con- verter via a coax cable. Typically they are remote mounted in equipment electrical panels.? Converts the generator signal intomechanical motion through the use of piezoelectric crystals (approximately 20µof amplitude peak to peak). Stainless sealed converter can be cleaned in place.

Dukane Ultrasonic Cutting Blades

Half Wave Guillotine
Dukane composite slitters feature replace- able slitting blades. Choose side, end, or arrowhead designs. We can custom config- ure slitters down to 0.5” centers. ? Cuts up to 2” thick product. Standardwidths available: 6”, 6.5”, 7”, 8”, 9’, 10”, 12”, and 14” Half Wave Wedge Guillotine EndSlitterSideSlitterArrowheadSlitter ? Cuts up to 3” thick product. Standardwidths available: 6”, 6.5”, 7”, 8”, 9’, 10”, 12”, and 14” Full Wave Guillotine ? Cuts up to 6” thick product. Standardwidths available: 6”, 8”, 10”, and 12” Full Wave Wedge Guillotine ? Cuts up to 7” thick product. Standardwidths available: 6”, 8”, 10”, and 12
Dukane Intelligent Assembly Solutions • 2900 Dukane Drive ? St. Charles, IL60174 USATEL+1 (630) 797-4900 ? FAX +1 (630) 797-4949 ? E-MAILussales@dukcorp.com/us Form #11458-A-05
